Orgapack CR 25 A - 4 Description; Design; Function

20
05.07/WE
ORGAPACK CR 25 A
4 DESCRIPTION
4.2 FUNCTION
– Feed the strap manually through the seal (2/1).
– Bend the strap start (2/5).
– Tensioning by feed wheel principle (2/4).
– Sealing by notching (2/2) the seal.
– Strap cut with knife (2/3)

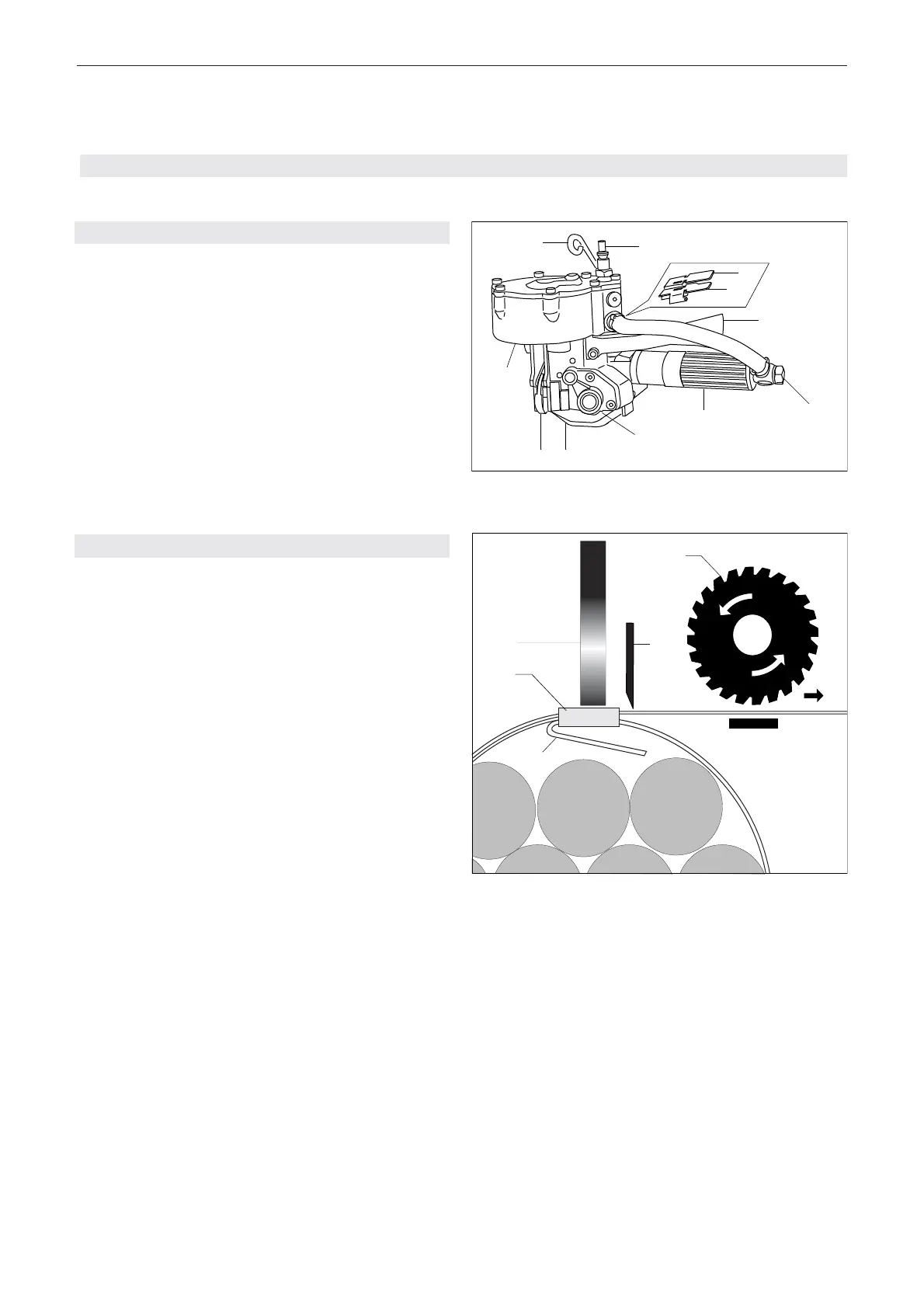

4.1 DESIGN
1 Compressed air connection
2 Yellow button (Sealing)
3 Green button (Tensioning)
4 Handle
5 Pressure reduzing valve
6 Compressed air motor
7 Tension wheel and tension plug
8 Base plate
9 Sealing jaws
10 Compressed air cylinder
11 Suspension bow
Fig. 1
Fig. 2
4
1
3
2
5
5
1
4
6
7
8
9
11
2
3
10
