Orgapack CR 25 A - Cleaning the Tool; Replacing Cutting Knife; Replacing Jaws and Notcher

05.07/WE
25
ORGAPACK CR 25 A
7.4 REPLACING CUTTING KNIFE
Removal
– Remove tension wheel (see chapter 7.3).
– Remove gear housing (12/9) including air motor
and shaft.
– With screwdriver loosen special screw (12/1).
– Remove shaft (12/2) and compression spring
(12/3).
– Remove base plate (12/4).
– Remove cylinder screw (12/6).
– Remove cutter guide (12/5), remove and replace
cutting knife (12/8). Observe position of spring
(12/7).
Installation
– Install the parts in reverse order.
– Secure cylinder screw (12/6) and special screw
(12/1) with Loctite 243.
– After installation of gear housing (12/9) hang up
compression spring (12/3) with screwdriver.
7.5 REPLACING JAWS AND NOTCHER
Removal
– Connect the tool to the air supply, depress yellow
button (13/1) and hold it in position.
– Disconnect the tool from air supply and release
yellow button.
– Remove two special screws (13/6).
– Take down jaw unit.
– Remove lock nut (13/5).
– Remove front plate (13/4), remove and replace
notcher (13/3) and jaws (13/2).
Installation
– Install the parts in reverse order.
– Secure special screws (13/6) with Loctite 243.
7.6 CLEANING THE TOOL
– The tool should be regulary cleaned. Especially the
tension wheel and the jaw unit should be kept
clean. The easiest way to do this, is to use com-
pressed air and to blow out the dust (wear eye
protection).

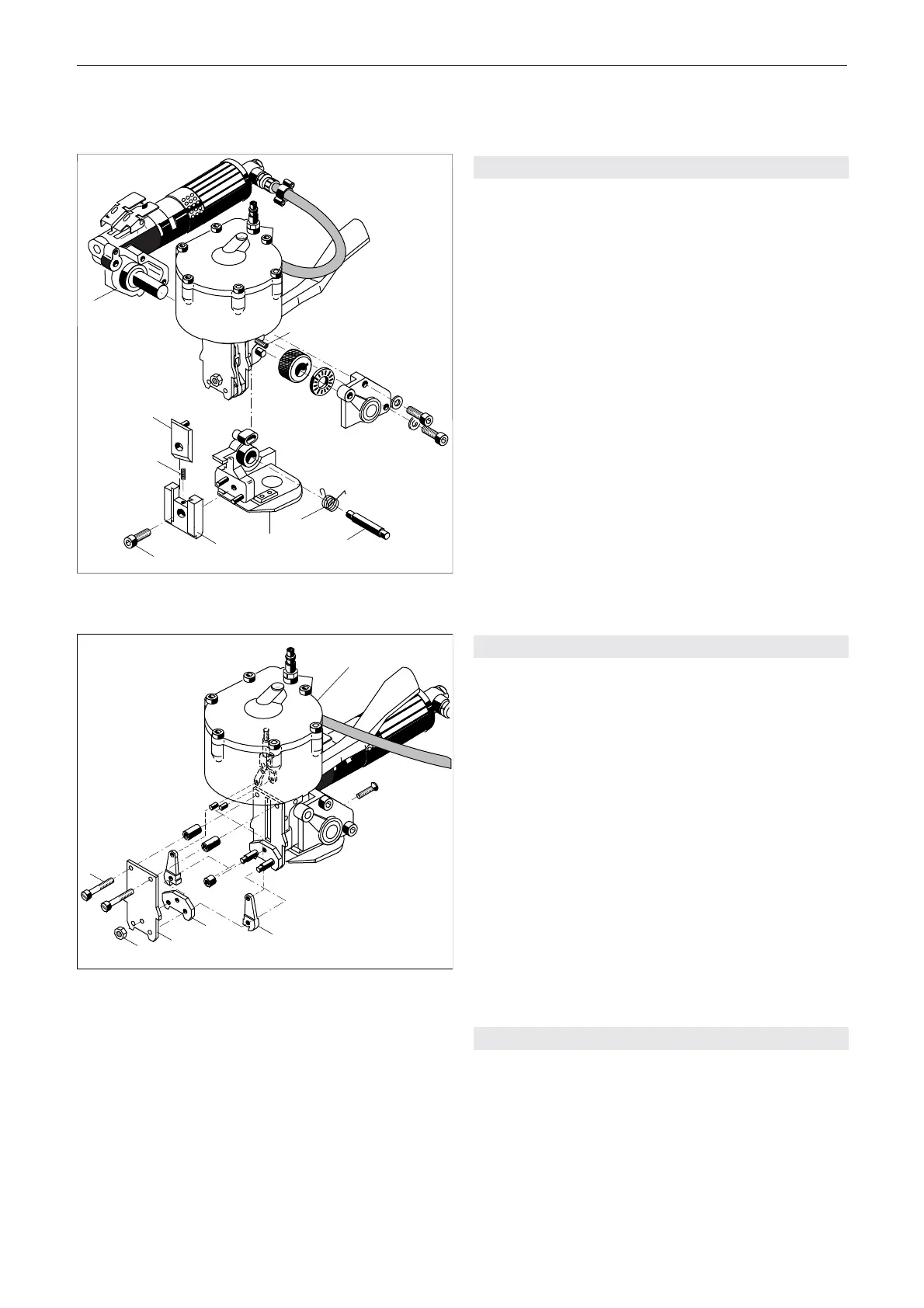

Fig. 12
7
5
3
4
6
8
9
1
2
1
2
3
4
5
6
Fig. 13
