Orgapack OR-T 200 - Preventive and Corrective Maintenance; Tension Wheel Maintenance; Tooth Plate Maintenance; Cutting Knife Replacement

24
02.04/WE
ORGAPACK OR-T 200

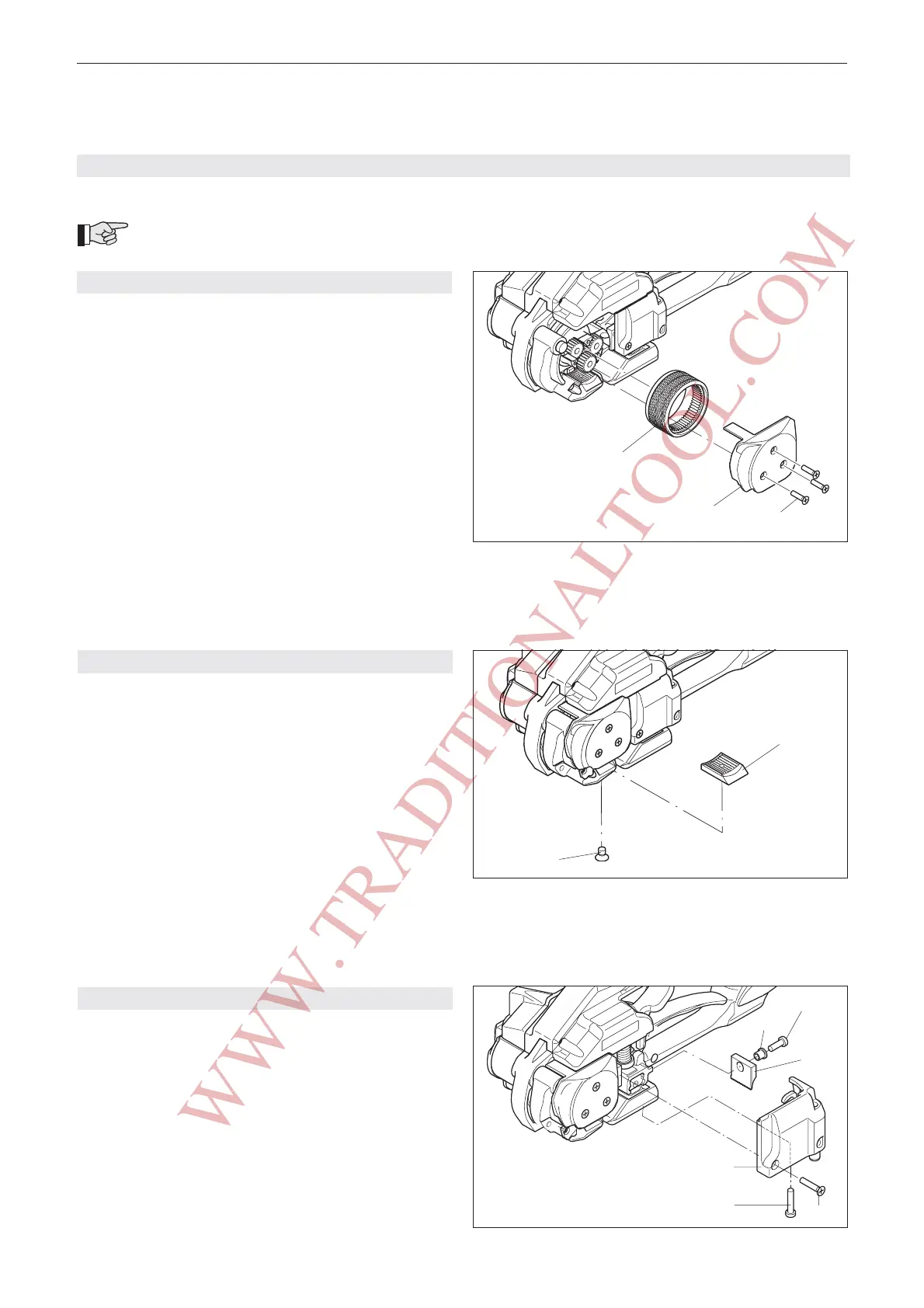

7 PREVENTIVE AND CORRECTIVE MAINTENANCE
7.1 CLEANING/REPLACING TENSION WHEEL
Removal
– Remove battery from tool.
– Release three sunk screws (20/3) and remove cover
(20/2) with ball bearing.
– Carefully remove tension wheel (20/1).
– Clean the tension wheel with compressed air (wear
goggles).
– If the tension wheel teeth are covered with heavy
dirt, they must be carefully cleaned with the wire
brush supplied or a sharp tool.
– Check tension wheel for worn teeth. If a few teeth are
worn, replace tension wheel.
Installation
– Install the parts in reverse order.
– Grease gear teeth of tension wheel lightly with
Klüber grease GBU Y 131 (Microlube).
– Secure sunk screw (20/3) with Loctite 222.
7.2 CLEANING/REPLACING TOOTH PLATE
Removal
– Remove battery from tool.
– Release sunk screw (21/1) and remove tooth plate
(21/2).
– Clean tooth plate with compressed air (wear
goggles).
– If the tooth plate teeth are covered with heavy dirt,
they must be carefully cleaned with the wire brush
supplied or a sharp tool.
– Check tooth plate for worn teeth, if necessary
replace tooth plate.
Installation
– Install the parts in reverse order.
– Secure sunk screw (21/1) with Loctite 222.
7.3 REPLACING CUTTING KNIFE
Removal
– Release sunk screw (22/2) and cylinder screw
(22/1) and remove cover (22/3).
– Release cylinder screw (22/6) and remove cutting
knife (22/4) with flanged bushing (22/5). Replace
cutting knife.
Installation
– Install the parts in reverse order.
– Before install cutting knife, check that the compres-
sing spring on top of knife is still mounted.
– Secure screw (22/1), (22/2) and (22/6) with Loctite
222.
All preventive maintenance tasks can be
performed with a Phillips screw driver!
Fig. 22
Fig. 20
1
2
3
1
2
3
4
5
6
Fig. 21
1
2
