0623 IH-10933VND
17 of 20V 02.22_EN
ORGAPACK OR-T 55
► Check clutch disks for wear, replace if necessary. Replace tension wheel.
Fitting
► Fitting is performed in reverse order.
Do not oil the coupling discs. Set maximum belt tension after installation (Section 4.2).

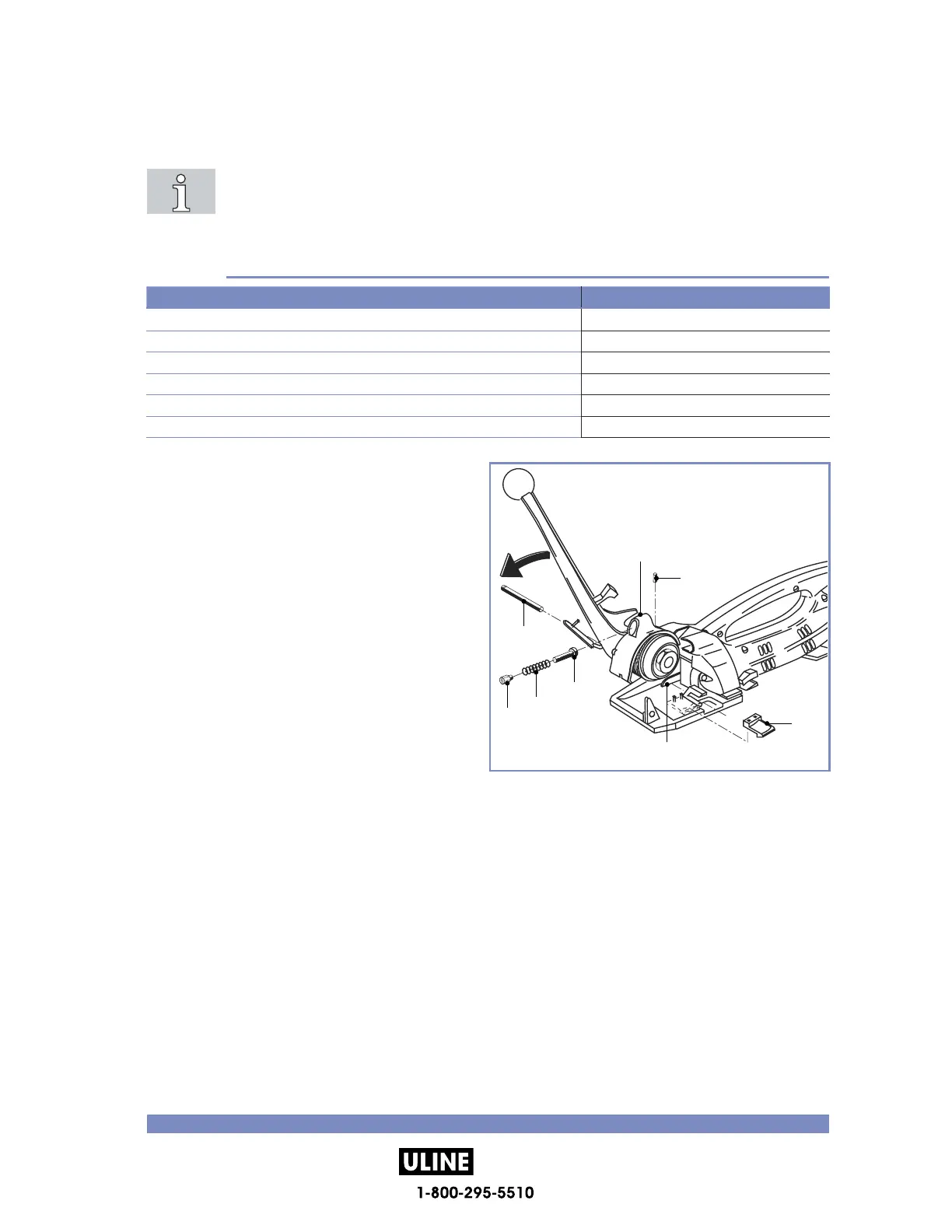

6.4 Replacing the tension shoe
Required parts Order number
OR-T 55: Tension shoe (1) (wear part) 1821.048.004
Set screw (3) 1820.030.092
Compression spring (4) 1821.010.018
Bolt (5) 1821.033.009
Spiral pin (6) 1821.039.006
Set screw (7) 1910.604.082
Dismantling
► Remove battery from tool.
► Push the tensioning lever forward until the
stop is reached.
► Remove set screw (3) with compression
spring (4) and bolt (5).
► Release set screw (7).
► Push out spiral pin (6) with a small screwdri-
ver.
► Raise rocker unit (8) and remove and replace-
tension shoe (1).
► – Clean tooth plates and tension wheel.
Fitting
► Fitting is performed in reverse order.
► Before inserting the rocker unit (8) lift stroke lever (2) that the switch link of the rocker lies below
the stroke lever. After mounting the shaft turn the tension wheel until the rocker moves down.
► Screw in set screw (3) until it is in line with the casing.
H -1 0933
