ORGAPACK OR-T 55
3 Description

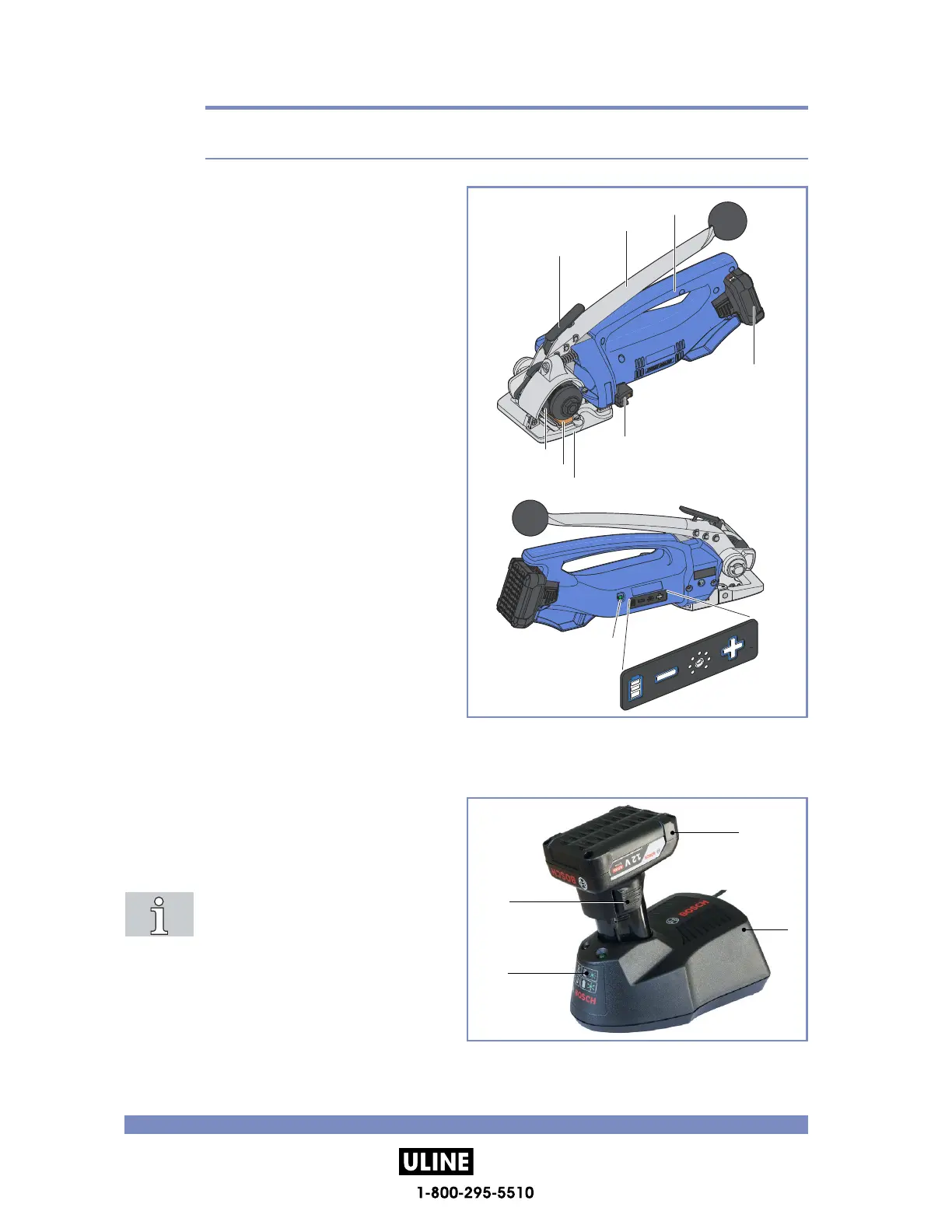

3.1 Design
1 Welding lever
2 Tensioning lever
3 Handle
4 Battery
5 Cutting device
6 Serial number (XJJMMYYYY)
X E=OR-T 55
JJ Year
MM Month
YYYY consecutive number
7 Tension shoe
8 Tension wheel
9 Foil tastatur
– Battery charging indicator (Section 4.1.3)
– Adjust welding time (Section. 4.3)
10 Tri-Color LED
– Green light: Ready for operation.
– Yellow light: During welding and the subse-
quent cooling time.
– Flashing red: If the tensioning lever is
moved back too early during the welding
process (tool is blocked; remove battery
and reinsert).
– LED o󰀨: Battery charge level too low.
Battery and charger
1 Battery (Bosch Li-Ion 12 V/6.0 Ah)
2 Charger (AL60 DV1419)
3 LED indicator
For detailed information, refer to the
operating instructions for the battery
and the charger.
10
4
5
6
7
8
1
2
3
9
1
3
4
2
