ORGAPACK OR-T 55
3.2 Function
● Pressing the tensioning lever against the
handle opens the tensioning device for inser-
ting the straps.

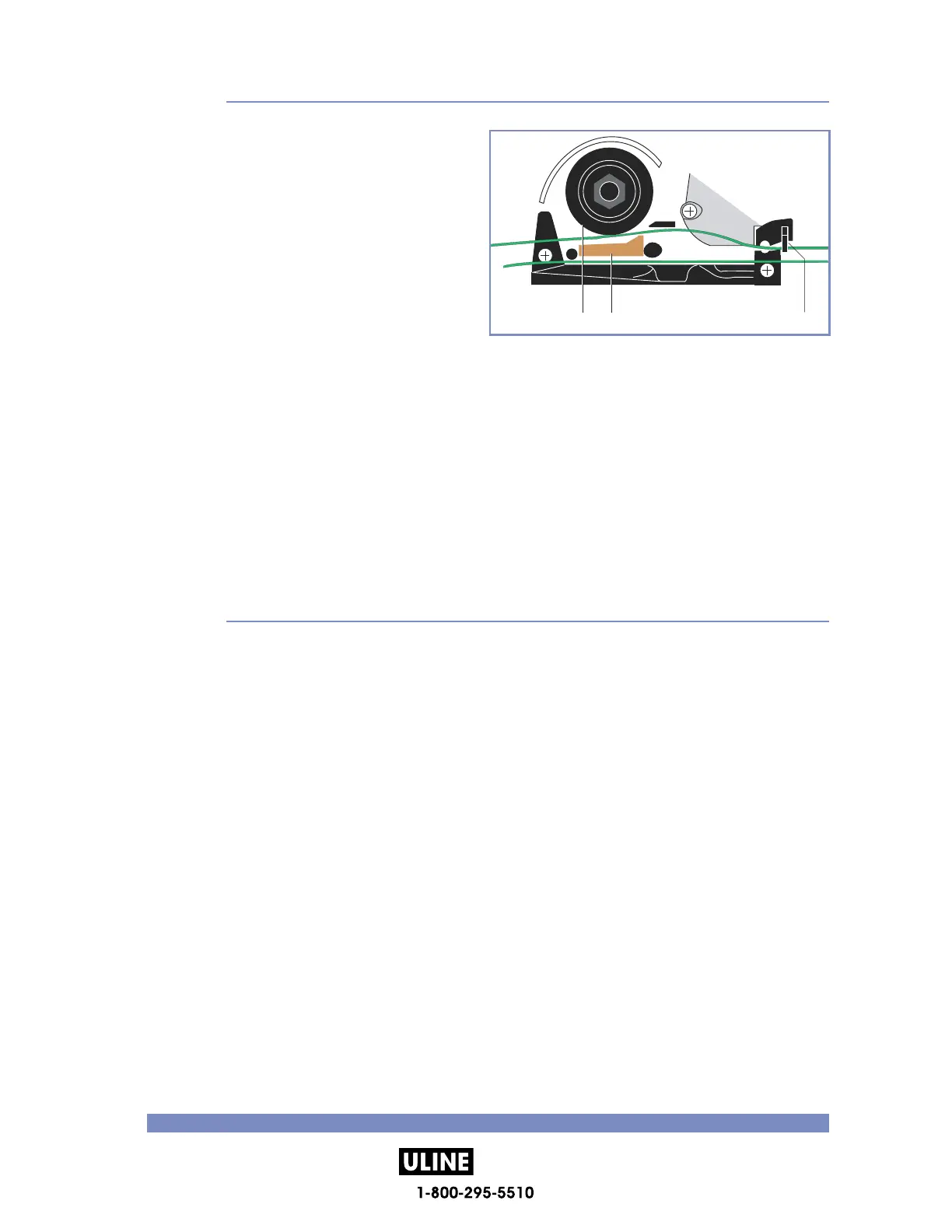

● Insert the start of the strap below the tension
shoe (2) and under the cutting device (1).
Release the tensioning lever.
● Insert the strap coming from the dispenser
between the tension wheel (3) and the tension
shoe (2) and insert it through the slot in the
cutting device (1).
● Move the tensioning lever back and forth until
the desired tensioning force is reached.
● Press welding button against tensioning lever and move tensioning lever all the way forward. Now
the straps are welded and the upper strap is cut o󰀨 in the cutting device (1).
● The strap tension is adjustable (Section 4.2)
● The welding time is adjustable (Section 4.3)
● The strap width is adjustable (Section 5.3)
● 9–10, 12–13, 15–16 and 19 mm
3
/
8
″,
1
/
2
″,
5
/
8
″ or
3
/
4
″
3.3 Scope of delivery
For strapping tool OR-T 55: ● Battery Li-on 12 V / 6.0 Ah Part no 2187.020
● Battery charger AL60 DV1419, 230 V Part no 2188.025
or for USA version: ● Battery Li-on 12 V / / 6.0 Ah, BAT420 Part no 2187.021
● Battery charger AL60 DV1419, 115 V Part no 2188.026
or for Japan version: ● Battery charger AL60 DV1419, 100 V Part no 2188.027
Tool kit consisting of: ● Wire brush
● Open-end wrench SW 17
● Open-end wrench SW 11
Part no 1821.901.004
Part no 1990.101.017
Part no 1990.101.011



