0623 IH-10933VND
10 of 20
V 02.22_EN
ORGAPACK OR-T 55
4 Preparing for operation and settings
4.1 Battery
For detailed information, see the separately enclosed operating instructions for the battery and the
charger.
WARNING
Exclusively use Bosch batteries and chargers as described in this manual (Section
3.3). Use of other batteries/chargers can result in injury or re. To avoid the risk of personal
injury or re, read the battery charger operating instructions prior using the charger and
battery.

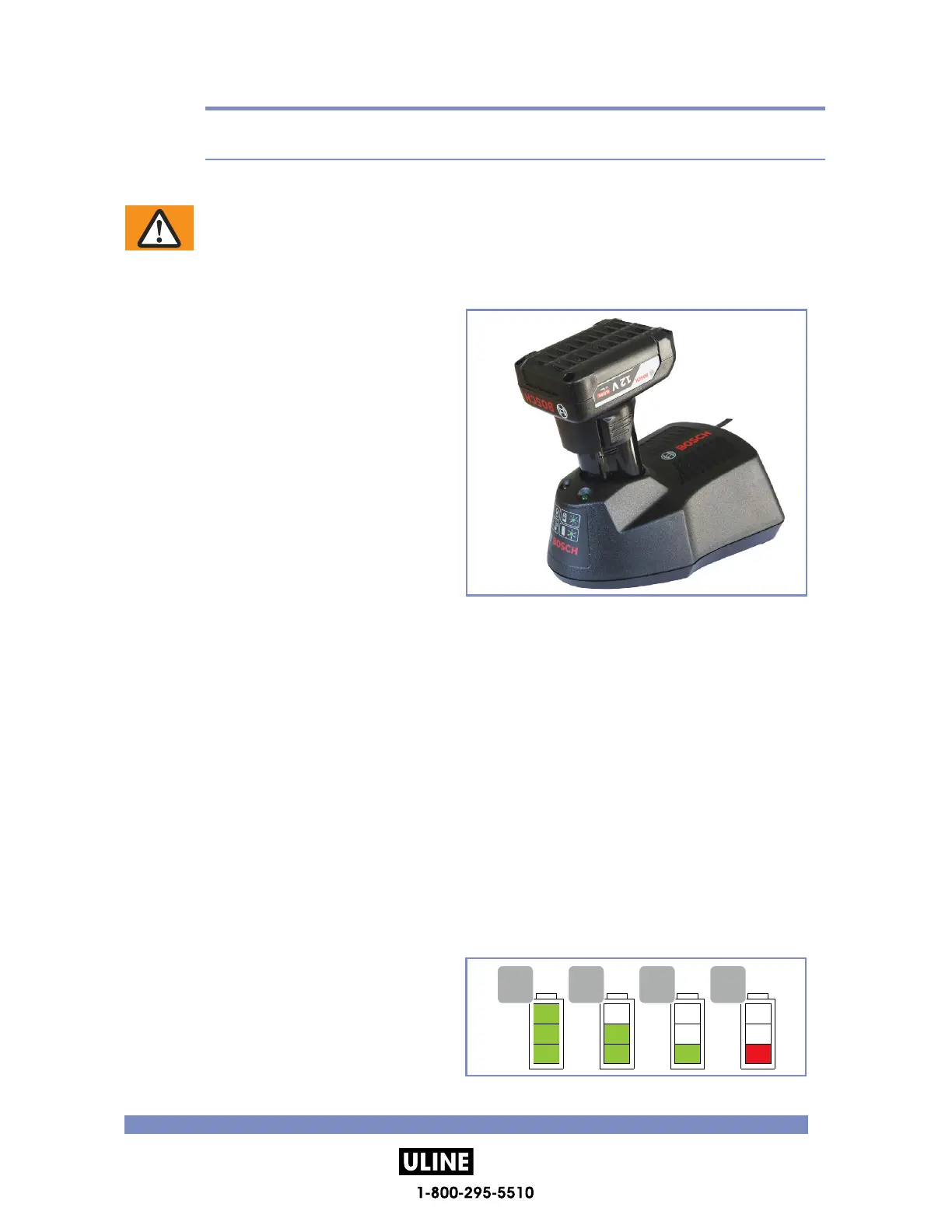

4.1.1 Charging the battery
► Connect charger to mains.
– Green LED illuminates (charger ready for
use).
► Insert battery in charger.
– Green LED ashes: Battery is being
charged.
– Green LED illuminates continuously:
Battery is fully charged.
– Red LED illuminates continuously:
Battery temperature outside charge-
temperature range.
– Red LED ashes: see operating instruc-
tions of charger.
● Charging time: Charging of empty battery:
80% / 100%: approx. 60 / 80 min.
(US-Version: approx. 120 / 160 min)
● Ideal battery temperature during charging process: 15–40 °C (59–104 °F)
● Avoid battery temperatures below 0 °C (32 °F) and over +45 °C (113 °F) during the charging process.
● The battery can be charged at any time, regardless of the charge status.
4.1.2 Inserting/removing battery in/from tool
► Inserting the battery: Insert the charged battery into the tool.
– The displays on the operating panel illuminate.
● If the tool is not used for approx. two minutes the display changes into sleep mode. Cancelling sleep
mode: Press tensioning lever.
● If the tool is not used for a long period (days) the battery must be removed from the tool and char-
ged/stored in the battery charger.
► Removing the battery: Press the unlock button and remove the battery at the same time.
4.1.3 Checking the charge status
LED display "Battery charge status" on operating
panel, with battery inserted:
1 Battey maximum charged
2 Battery fully charged
3 Battery low charged
4 Battery empty (battery must be charged)
H -1 0933
