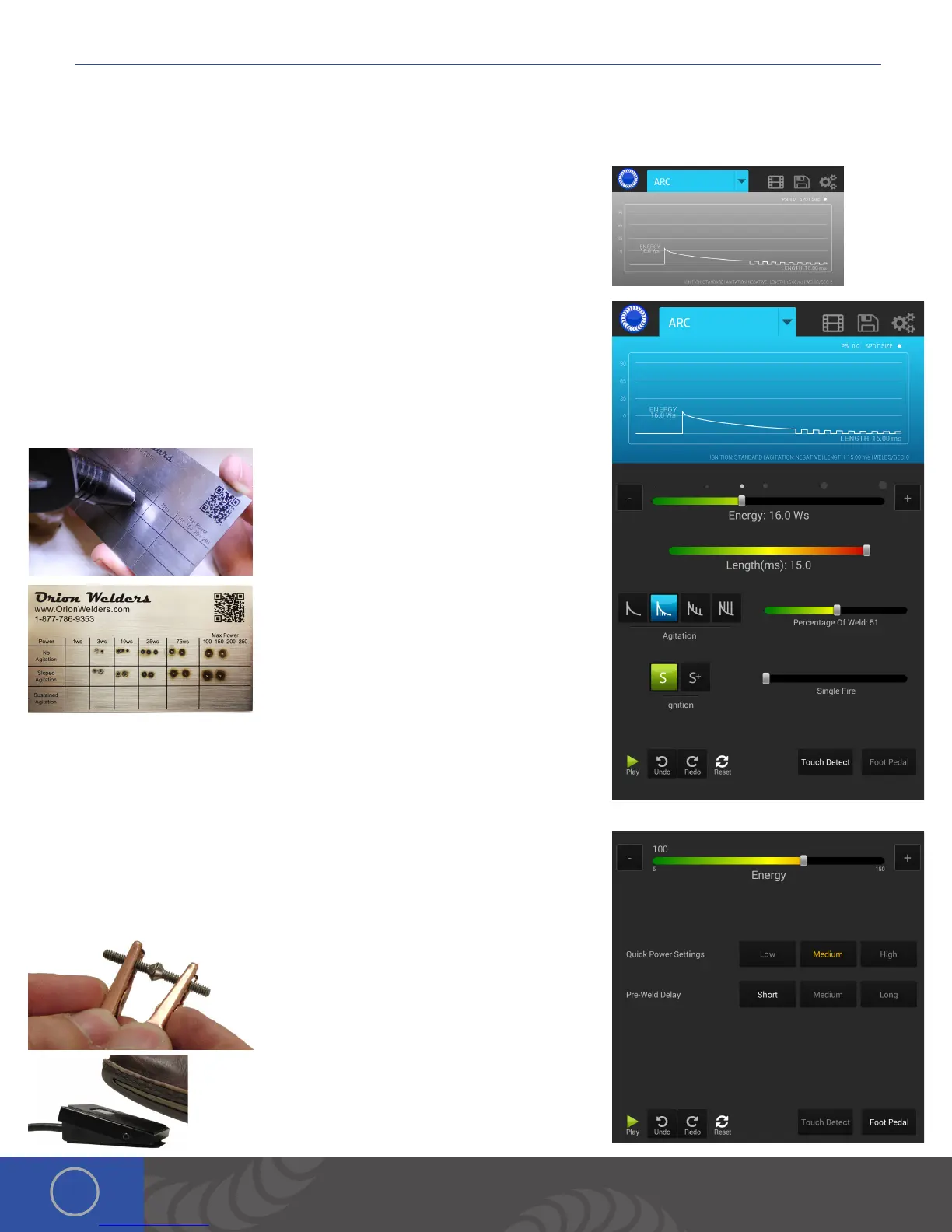

Chapter 3: Make a Weld
Grey Waveform
• When the welder is paused the waveform screen will appear grey.
Remember to push play in order to perform welds.
Make An Arc Weld (using the provided weld plate)
1. From the Arc Screen select 16 Ws on the Energy bar, 15 ms on the Length bar,
Reverse Agitation from the Agitation options, 51 on the Percentage of Weld bar,
Standard from the Ignition options, Single Fire on the Welds Per Second bar,
Touch Detect for trigger type, and then hit Play. *Remember to verify the gas
pressure and microscope connection, .
2. Lightly touch the electrode in the box on
the provided weld plate. Maintain contact &
keep hands steady by resting them on the
table.
3. Use the provided stainless steel weld
plate as a guide to try different settings.
Make several welds on the weld plate to
get comfortable with the stylus and the
different weld parameters.
Make a Tack Weld
1. Select Medium from the Quick Power Settings row, Short from the Pre-Weld
Delay row, Foot Pedal for the Trigger Type, and then touch the Play button.
2. Attach the negative alligator clip to one work piece and the positive alligator
clip to the other work piece.
3. Lightly touch the two work pieces together
where you want to tack them.
4. Step on the foot pedal.
5. If the work pieces stay together, proceed to
the Arc screen to perform a permanent weld
using the Pulse Arc Welding Stylus. If the pieces
do not stay together, move the Total Energy up
and repeat steps 2-4.
