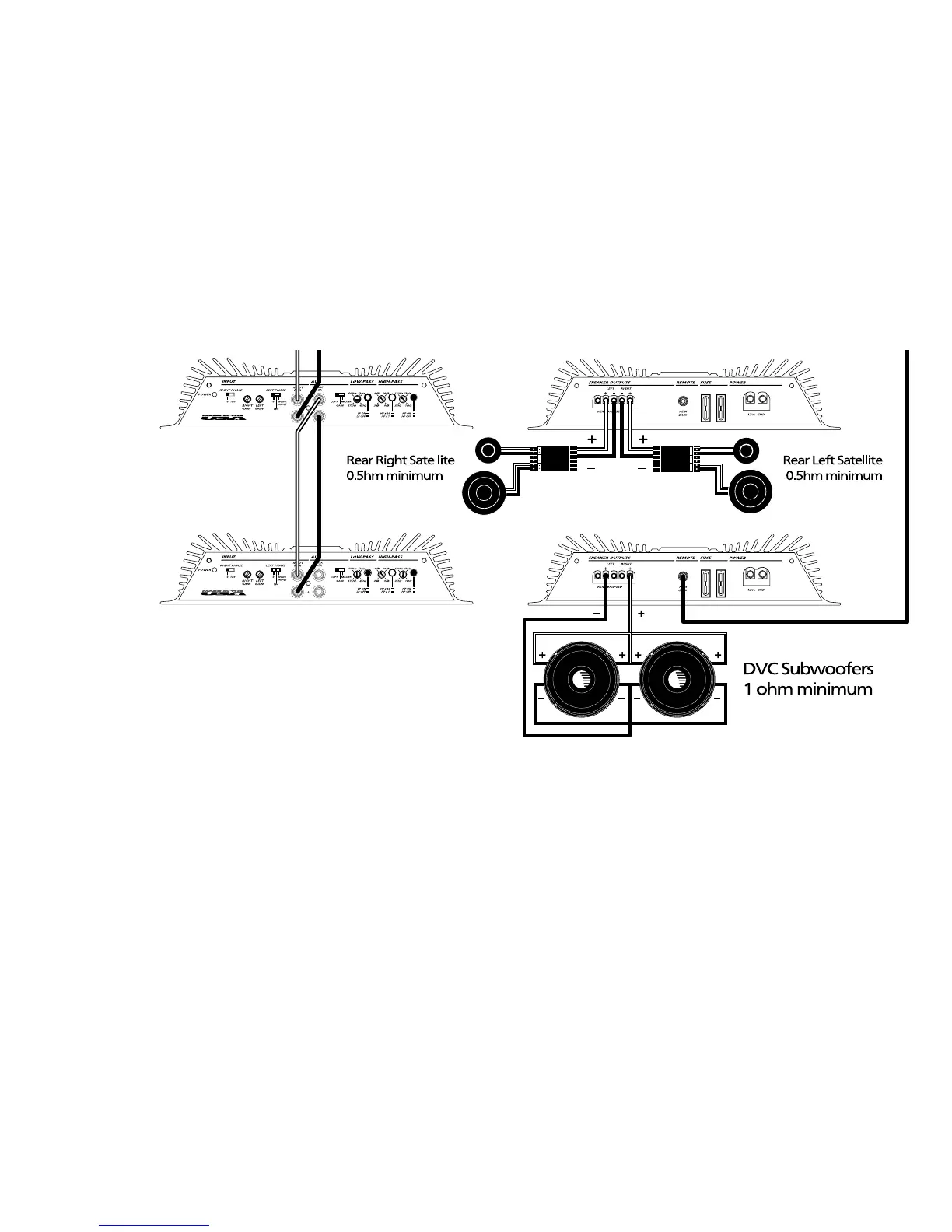

AMPLIFIER 2
• Output is configured for bandpass operation.
• Left Phase switch set to 0°
• Right Phase switch set to 0°
• Gain controls can be set together or independently
of each other
AMPLIFIER 4
• Output is configured for band-pass operation.
• The high-pass crossover is used as a subsonic filter with INTELLi Q.
• RCA inputs are connected to both left and right channels
• Left Phase switch set to 0°
• Right Phase switch set to 180°
• Gain controls must be set identically for both left and right channels
page 17
