12V+ GND
SPEAKER OUTPUTS
REM BRIDGED
RIGHT LEFT
REM
GAIN
REMOTE FUSE POWER
12V+ GND
SPEAKER OUTPUTS
REM BRIDGED
RIGHT LEFT
REM
GAIN
REMOTE FUSE POWER
CHOOSING MOUNTING LOCATIONS
The location of your HCCA amplifier will depend on several important issues. Due to the low profile size of the HCCA amplifiers,
there are many possible installation locations that will yield satisfactory amplifier performance. Always mount the amplifier in a
place that protects the amplifier from the elements. In addition, mount the amplifier on a stable, flat mounting surface. As with
any amplifier, there are several possible mounting locations and configurations that can be optimal. We will cover the most obvi-
ous of situations.

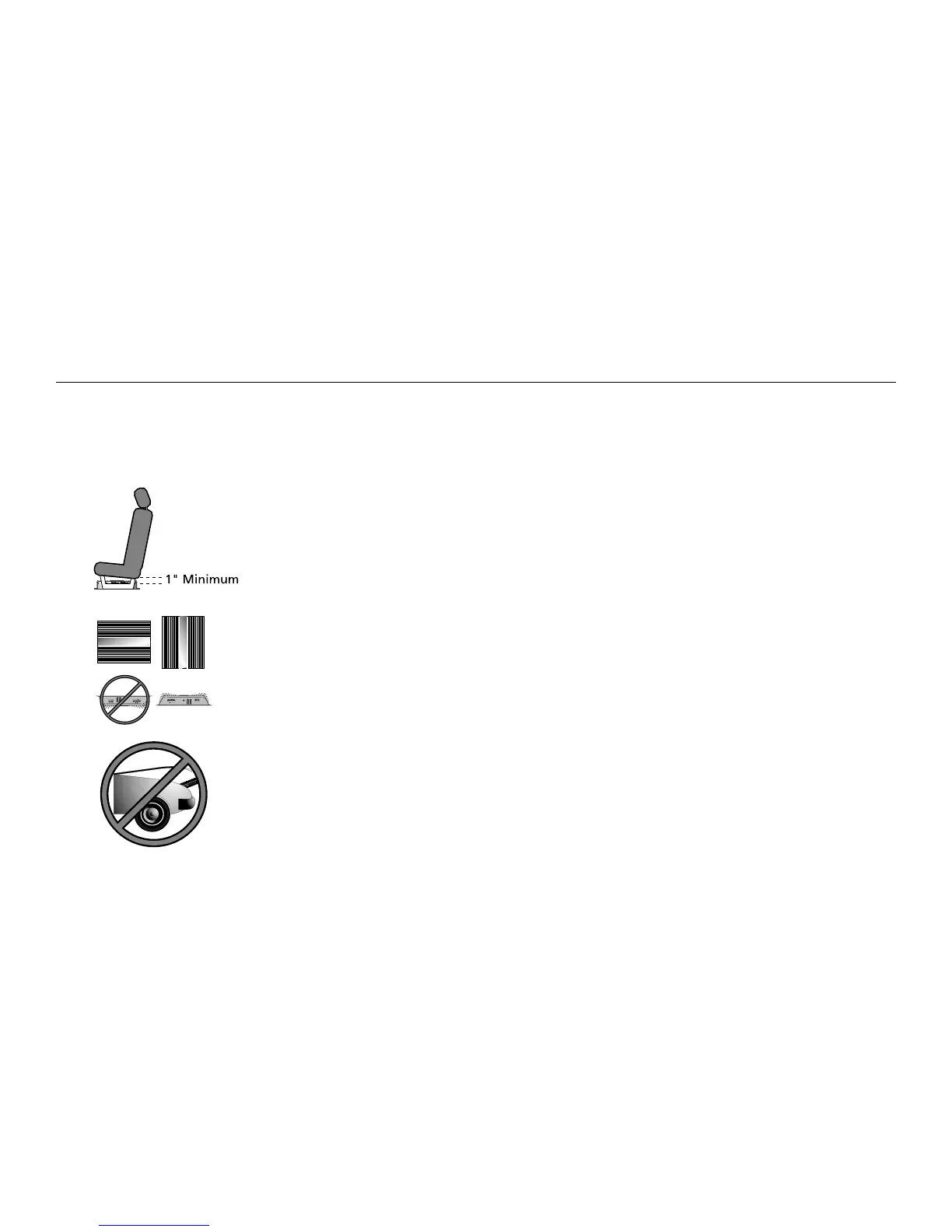

PASSENGER COMPARTMENT MOUNTING
If you are going to mount the amplifier in the passenger compartment, make sure you have ad-
equate room for ventilation. The HCCA amplifiers have been designed to make possible under
seat mounting. When mounting your amplifier under a seat or similar area, keep a minimum of
1” of clearance around the amplifier for adequate cooling.
TRUNK COMPARTMENT MOUNTING
Mounting the HCCA amplifier in the trunk provides excellent performance as long as you do
not mount the amplifier upside down or restrict the airflow around the heatsink of the ampli-
fier. For optimal results, mount the amplifier with the cooling fins in the vertical position. This
type of mounting will yield the best cooling due to the convection effect of the amplifier chas-
sis
ENGINE COMPARTMENT MOUNTING
Do not mount the HCCA amplifier in the engine compartment. The amplifier was not designed
to endure the harsh environment of the exterior elements.
page 45
