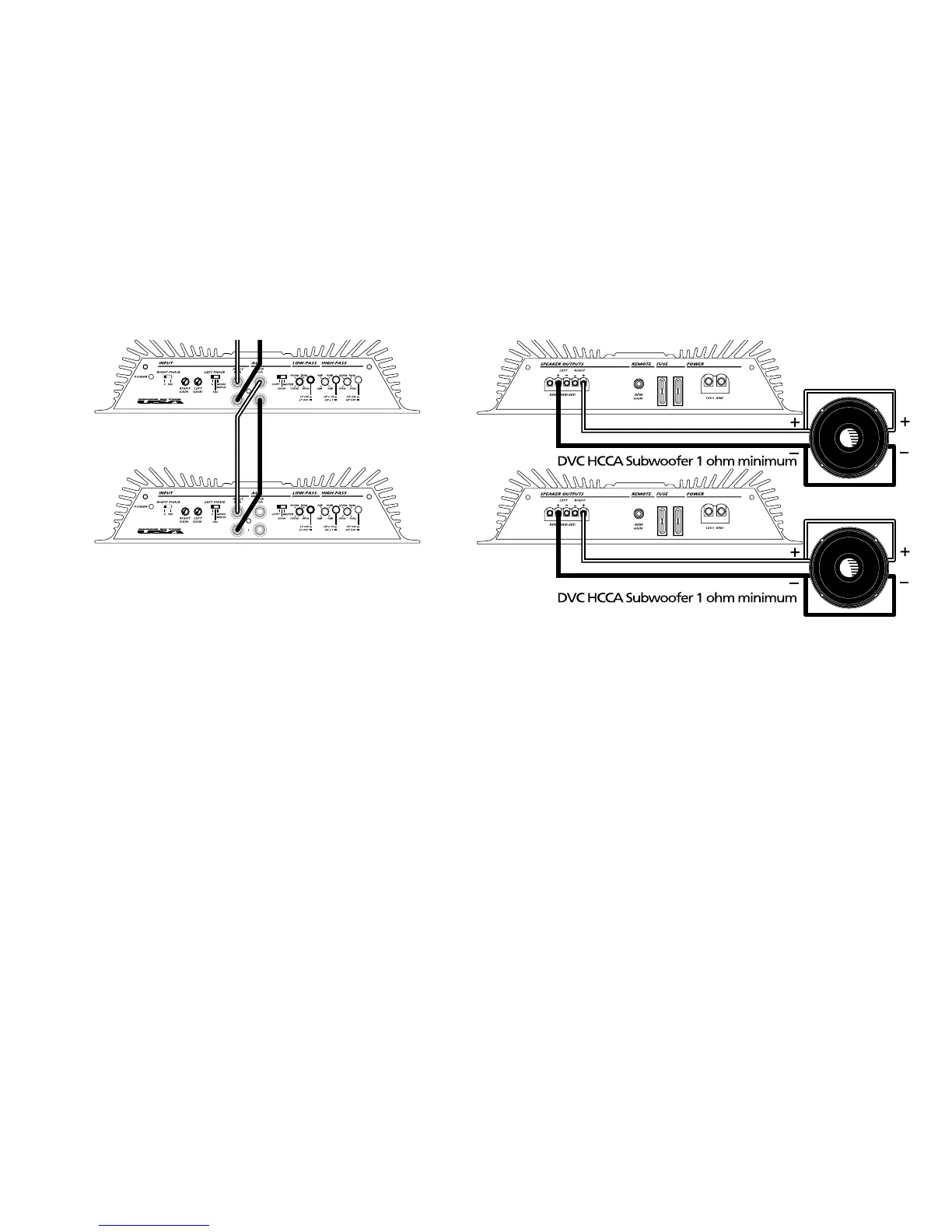

AMPLIFIER 2
• Output is configured for
band-pass operation.
• The high-pass crossover is used as a
subsonic filter with INTELLi Q.
• RCA inputs are connected to both
left and right channels
• Left Phase switch set to 0°
• Right Phase switch set to 180°
• Gain controls must be set identically
for both left and right channels.
AMPLIFIER 3, 4 & 5
• Output is configured for full
range operation.
• RCA inputs are connected to both
left and right channels
• Left Phase switch set to 0°
• Right Phase switch set to 0°
• Gain controls must be set to
minimum positions
SYSTEM 5
has one amplifier driving front satellites, one amplifier running as a Master Amplifier and addi-
tional amplifiers running as Slave amplifiers to the master. The subwoofer amplifiers are configured in a Master/
Slave configuration for absolute crossover and level matching.
AMPLIFIER 1
• Output is configured for
high-pass operation.
• Left Phase switch set to 0°
• Right Phase switch set to 0°
• Gain controls can be set together
or independently of each other
page 19
