Machine Manual Orion
Flex Stretchwrapper Revision 3.0
Introduction and Safety 15 February 2016
Page 1-16
5. Using a hammer drill, drill the mounting holes in the floor with the correct drill bit to
match the mounting hardware.
6. Pound in the 10 Red Head Anchors. Use 5/8" hardware. The length of the anchors
depends on the thickness of the concrete.

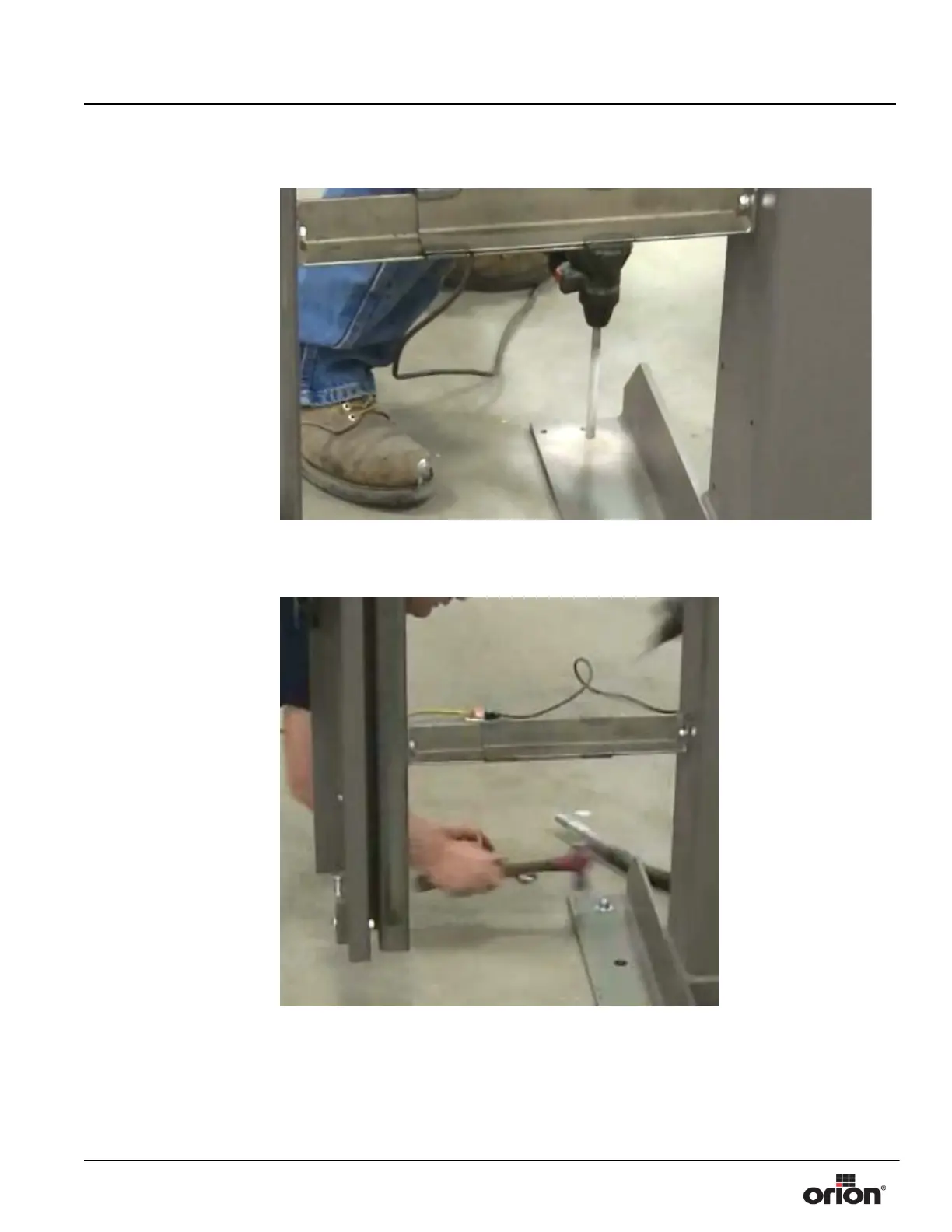

Figure 1 - 6
Drill Mounting Holes
Figure 1 - 7
Installing Anchors
