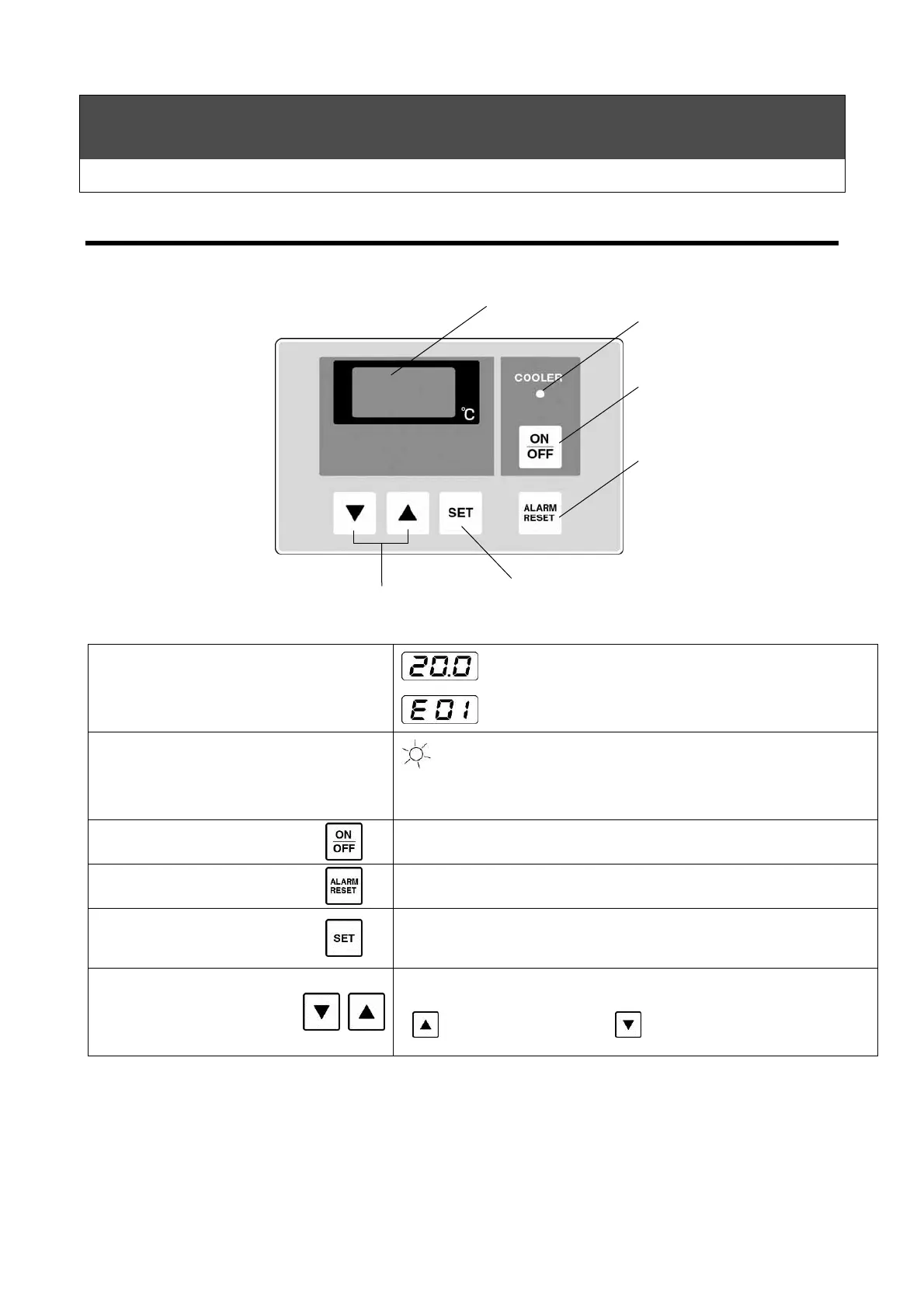

Machine Layout
Control Plate
Control Plate
①
Digital Display

Measured water temperature(normally displayed)

Alarm(error) code display (flashing)
②
Cooler operation lamp

ON
：
Running

○
OFF
：
Product stopped
③
Cooler ON/OFF switch
Operation/stop of chiller.
④
Reset switch
Error/alarm reset or error buzzer stops.
⑤
Set switch
Press briefly
・・・ ・・・・
Liquid temperature setting display.
Hold down for 2 seconds
・・
To the liquid temperature setting change mode.
⑥
Temperature
adjustment switches
Press to adjust the water temperature setting.
………Increase the setting

………Decrease the setting
