MSG-A • MSG-D OPERATOR INSTALLATION GUIDE
- 26 -

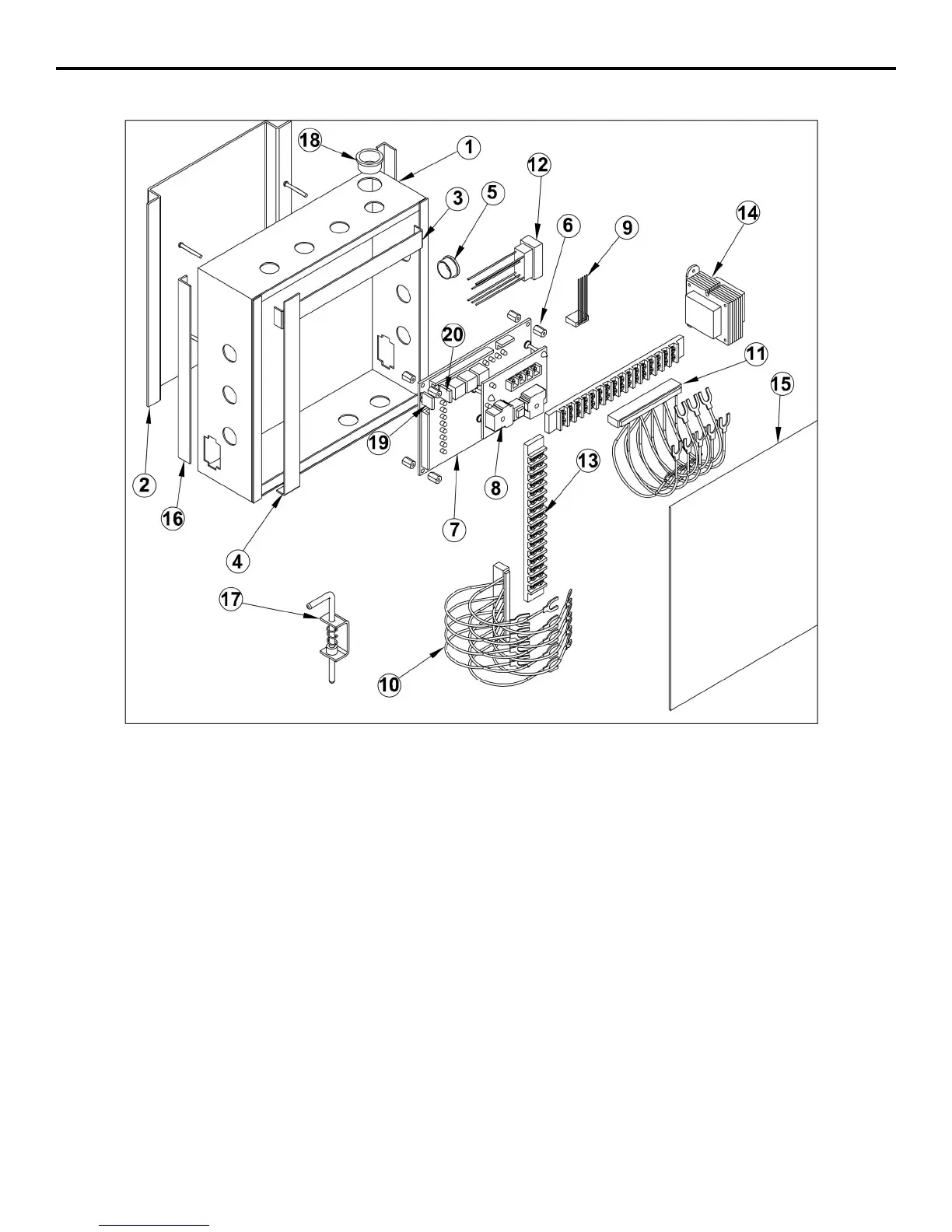

MODEL MSG-A CONTROL BOX PARTS LIST
REF
NO. PART NO. DESCRIPTION
1 2100-1778 Control Box Wrapper
2 2100-1790 Control Box Mounting Plate
3 2100-1762 Terminal Strip Bracket, Output Side
4 2100-1761 Terminal Strip Bracket, Input Side
5 2200-122 Heyco Bushing, .87 diameter
6 2500-1948 Control Board Standoff
7 2510-268 Control Board
8 2500-1946 AC Motor Drive Board
2510-244 Control Board with AC Motor Board
9 2510-279 Limit Switch Harness Assembly
10 2510-249 Input Wire Harness Assembly
11 2510-250 Output Wire Harness Assembly
12 2510-261 Control Box Motor Harness Assembly
13 2500-071 Terminal Strip, 16-141
14 2500-212 Transformer, 115/24VAC, 40VA
2500-791 Transformer, 230/24VAC, 40VA
REF
NO. PART NO. DESCRIPTION
15 2300-696 Clear Control Box Cover
16 2100-1789 Control Box Slide Rail
17 2110-701 Pull Pin Disconnect Assembly
18 2300-735 Heyco Bushing, 1.09 diameter
2500-867 Alarm, 24VAC (not shown)
19 2500-1966 2 Amp Fuse for Control Board
20 2500-1975 3 Amp Fuse for Control Board
2520-391-B Complete Controller Assembly
115VAC (order limit harness and
mounting brackets separately)
2520-392-B Complete Controller Assembly
230VAC (order limit harness and
mounting brackets separately)
