OSCO MSG-A - MSG-D CONTROL BOX PARTS LIST

MSG-A • MSG-D OPERATOR INSTALLATION GUIDE
- 30 -

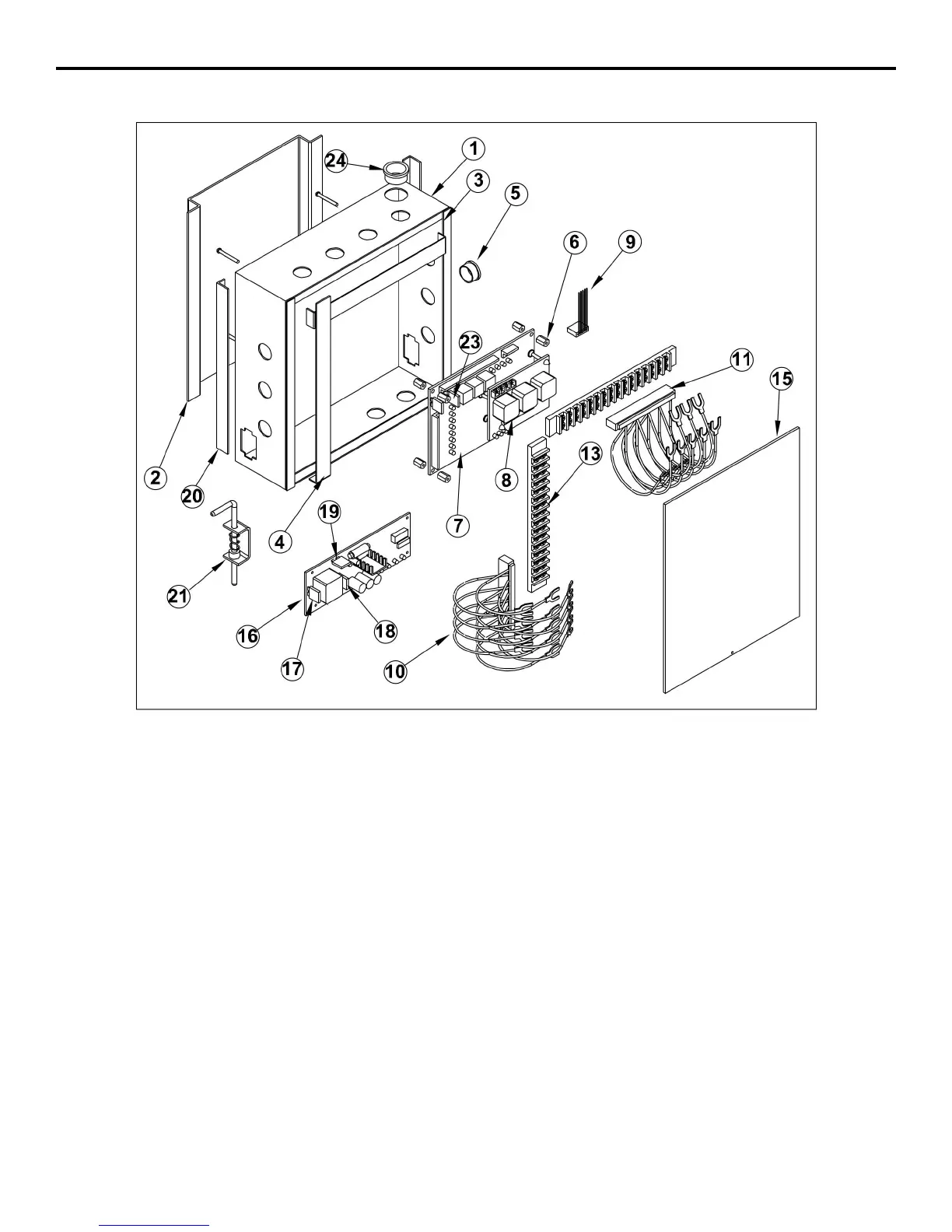

MODEL MSG-D CONTROL BOX PARTS LIST
REF
NO. PART NO. DESCRIPTION
1 2100-1778 Control Box Wrapper
2 2100-1790 Control Box Mounting Plate
3 2100-1762 Terminal Strip Bracket, Output Side
4 2100-1761 Terminal Strip Bracket, Input Side
6 2500-1948 Control Board Standoff
7 2510-269 Control Board DC
8 2500-1947 DC Motor Drive Board
2510-245 Control Board with DC Motor Board
9 2510-279 Limit Switch Harness Assembly
10 2510-249 Input Wire Harness Assembly
11 2510-250 Output Wire Harness Assembly
13 2500-071 Terminal Strip, 16-141 (2)
15 2300-696 Clear Control Box Cover
16 2500-2127 DC Charger Board
REF
NO. PART NO. DESCRIPTION
17 2500-2018 Fuse, 15 Amp
(available in local hardware stores)
18 2500-2019 Fuse, 20 Amp
(available in local hardware stores)
19 2500-1975 Fuse, 3 Amp
20 2100-1789 Control Box Slide Rail
21 2110-701 Pull Pin Disconnect Assembly
2500-867 Alarm, 24VDC (not shown)
23 2500-1975 3 Amp Fuse for Control Board
2520-393-B Complete Controller Assembly
24VDC (order limit harness and
mounting brackets separately)
24 2300-735 Heyco Bushing, 1.09 diameter
5-02-12
