PAGE 10 10115208

OSD2254EP Operator Manual

2.2.2 DRAWINGS AND DIMENSIONS

The OSD2254EP is designed to be wall mounted onto a DIN-Rail (35mm top hat) fixture or by

using 4 x M4 captivated screws (DIN Rail mount requires removal and flanges repositioned –

see below). The unit dimensions (excluding connectors, SFPs, etc) is shown in Figure 3

below.

DIN Mount Wall Mount

DIN to Wall Mount Conversion

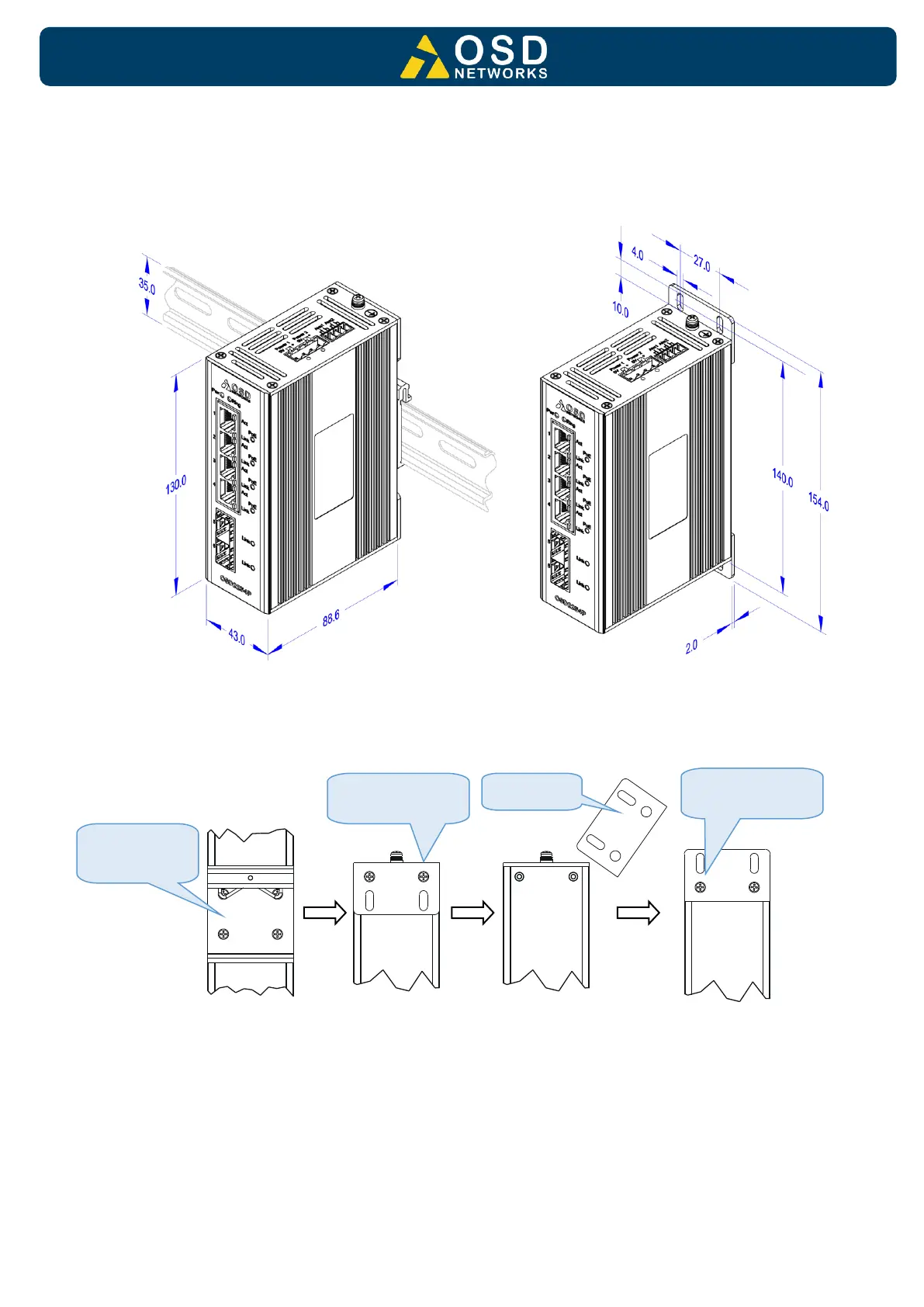

FIGURE 3: MOUNTING DIMENSIONS

Unscrew x 4

Remove DIN

Unscrew x 2

(Top & Bottom)

Rotate

Screw x 2

(Top & Bottom)
