2.2.6 USB CONNECTOR
The OSD2254EP has a USB – Type B connector located on the bottom of the unit that is
used for Command Line Interface (CLI) from the PC to the OSD2254EP via the PC’s USB
connector. See section 2.4 for further CLI information.

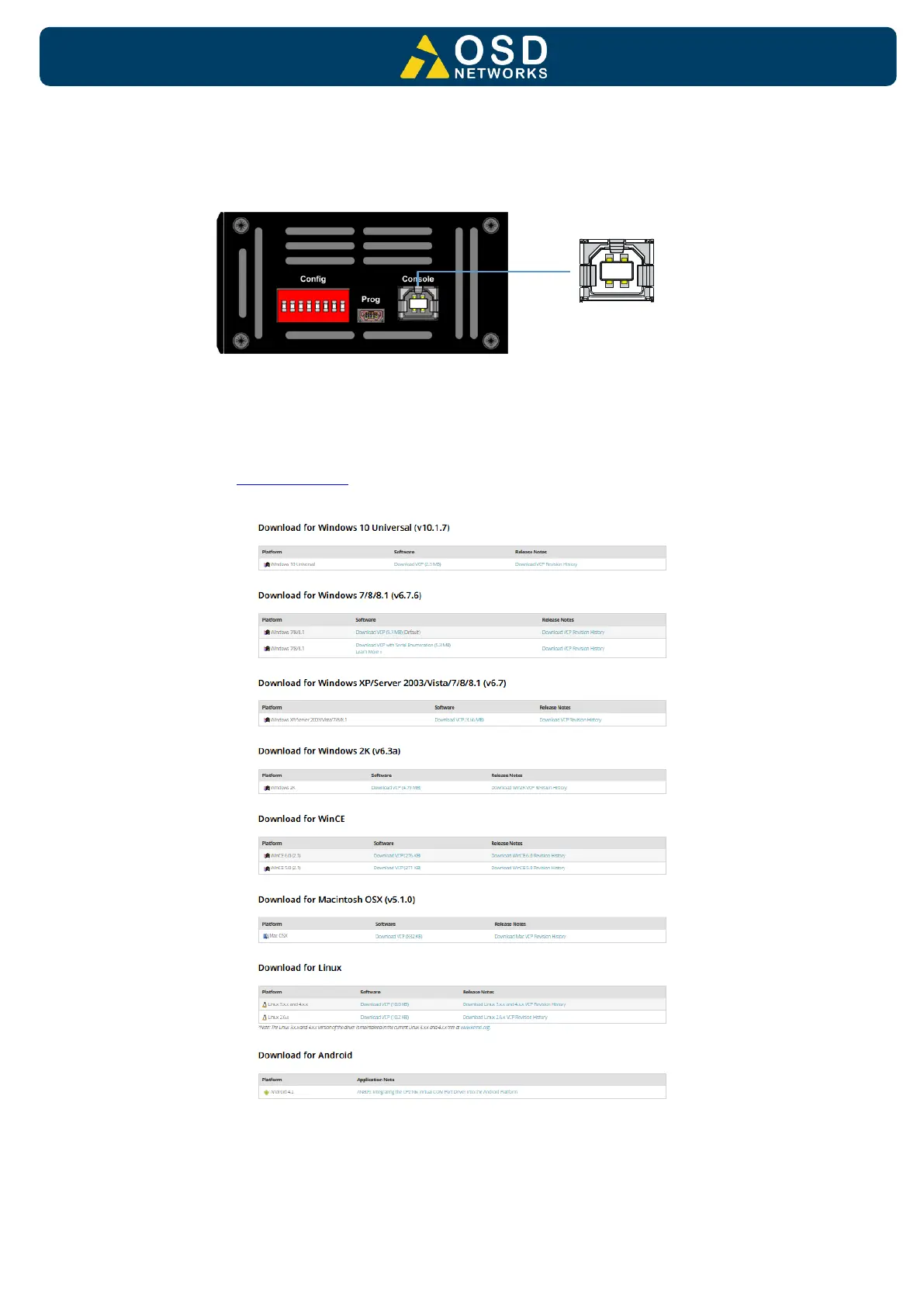

FIGURE 7: USB TYPE B CLI PORT
To operate and control the OSD2254EP using the CLI, a proprietary driver will be required to
be installed onto the PC being used. The driver can be found and downloaded via the
following site: www.silabs.com and searching for the CP210x driver. Download the relevant
driver for your operating system, install and follow the installation instructions from your PC.
FIGURE 8: CLI INSTALLATION
