2.4 COMMAND LINE INTERFACE
The Command Line Interface (CLI) is a useful tool for checking link status and debugging link
connections. To enable the use of CLI the OSD2254EP must be connected to a PC with a
serial port and an appropriate cable as specified in section 2.2.6. Using a terminal emulation
program such as Hyperterminal, a number of command lines specific to the OSD2254EP can
be implemented to check link/node status, ring/bus topology and enable/disable float backup.
2.4.1 TERMINAL EMULATION SETUP
Using a terminal emulation program such as hyperterminal the following parameters should
be set up for correct command line operation. Select the appropriate “COM port” set up for
the serial port.

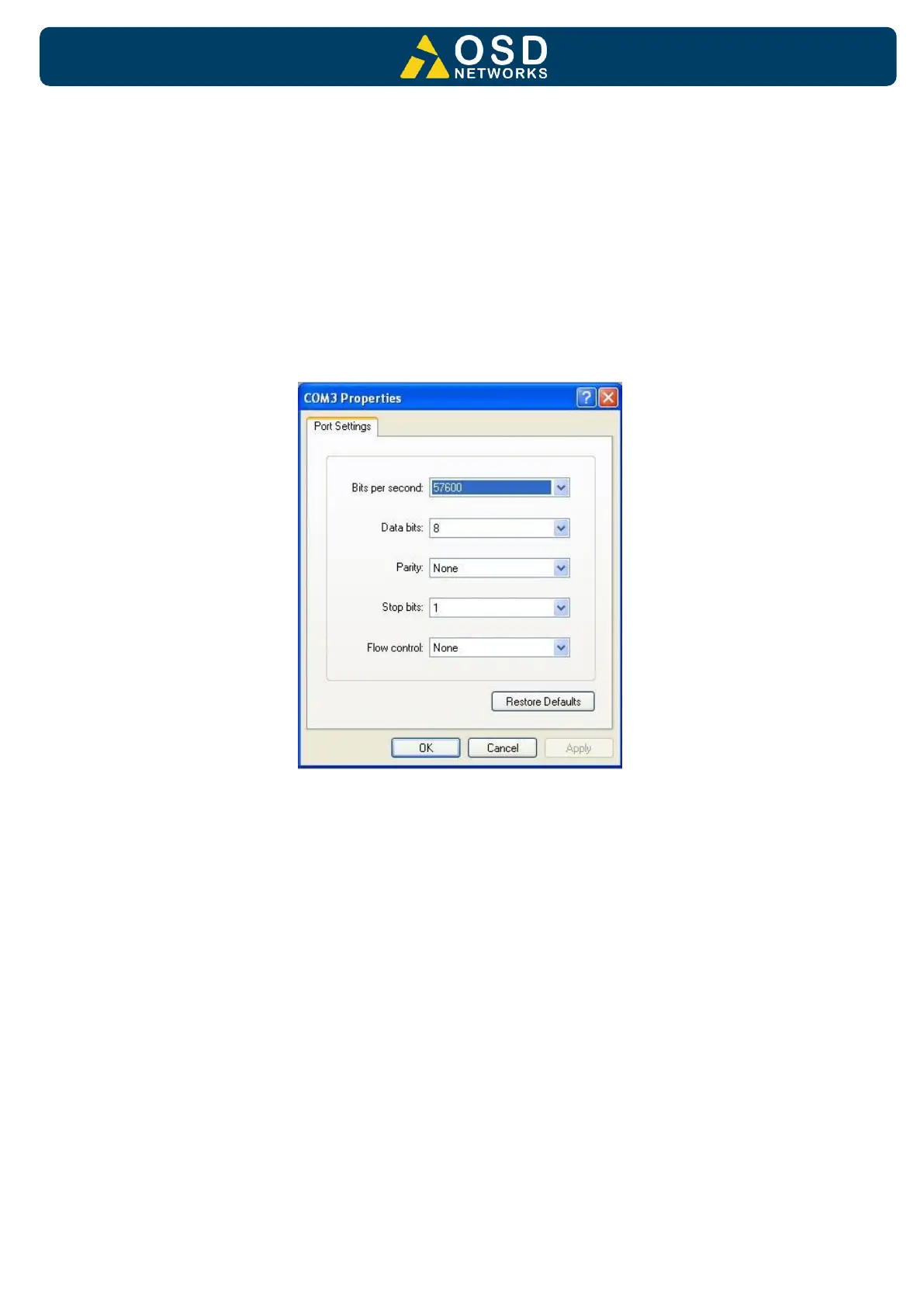

FIGURE 17: SERIAL PORT SETTINGS
