oset MX-10 2017 - Motor Care; Seat Removal & Frame Height Adjustment

17

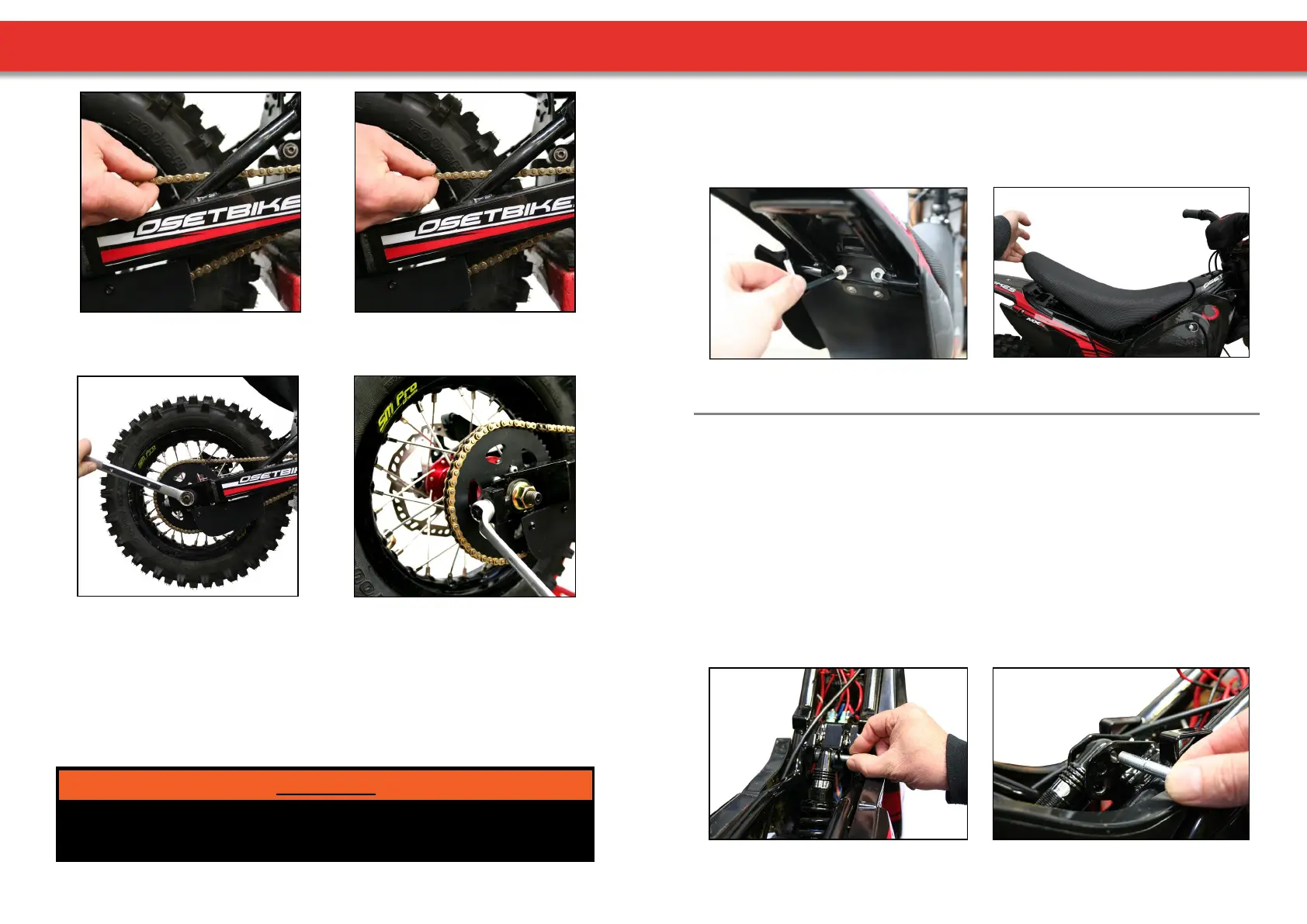

These two pictures show the correct tension.
When pushing up on the chain’s ghtest point, it should only move by 5-10mm.
Axle Nut (19mm) Chain tensioner nut (13mm)
The OSET motor has been designed for high performance. DO NOT POWER WASH THE
MOTOR. Check that the sprocket bolt is ght periodically. Waterproof grease can be
applied around the sha where it enters the motor for addional protecon from the
elements. Similarly, a bead of silicone can be applied where the casings join for addional
weather protecon.
MOTOR PERFORMANCE & MAINTENANCE
The motor can get hot. It is designed to withstand high temperatures. However, sustained
maximum output is not recommended. The motor is designed to withstand pulses of
maximum output, not sustained.
WARNING!
MOTOR CARE
18
SEAT REMOVAL & FRAME ADJUSTMENT
The padded seat unit of your MX-10 bike is removable, allowing access to some of the bike’s
electrical components. By removing the two screws shown below, the seat can be lied up &
forwards to release from the bike.
(1.) Unscrew & remove seat bolts. (2.) Li seat up & forwards to release.
REMOVING THE SEAT
ADJUSTING THE FRAME HEIGHT
The frame of the MX-10 features an overall height adjustment. The procedure to change this
height is outlined below.
1. With the seat unit removed, undo & remove the bolt in the upper shock mount
(see image 1 below).
2. Push up on swing arm unl rear shock mounng hole aligns with desired mounng hole
on the frame.
3. Re-insert shock bolt & ghten nut (see image 2 below).
(1.) (2.)
