3. Installing and Adjusting Procedure of Welding Torch
3.1 Mounting on Almega V-type Manipulator
3.1.1 Mounting the curved torch (mounting bracket)
(Note: Purchase the torch mounting bracket ASSY separat
ely.)

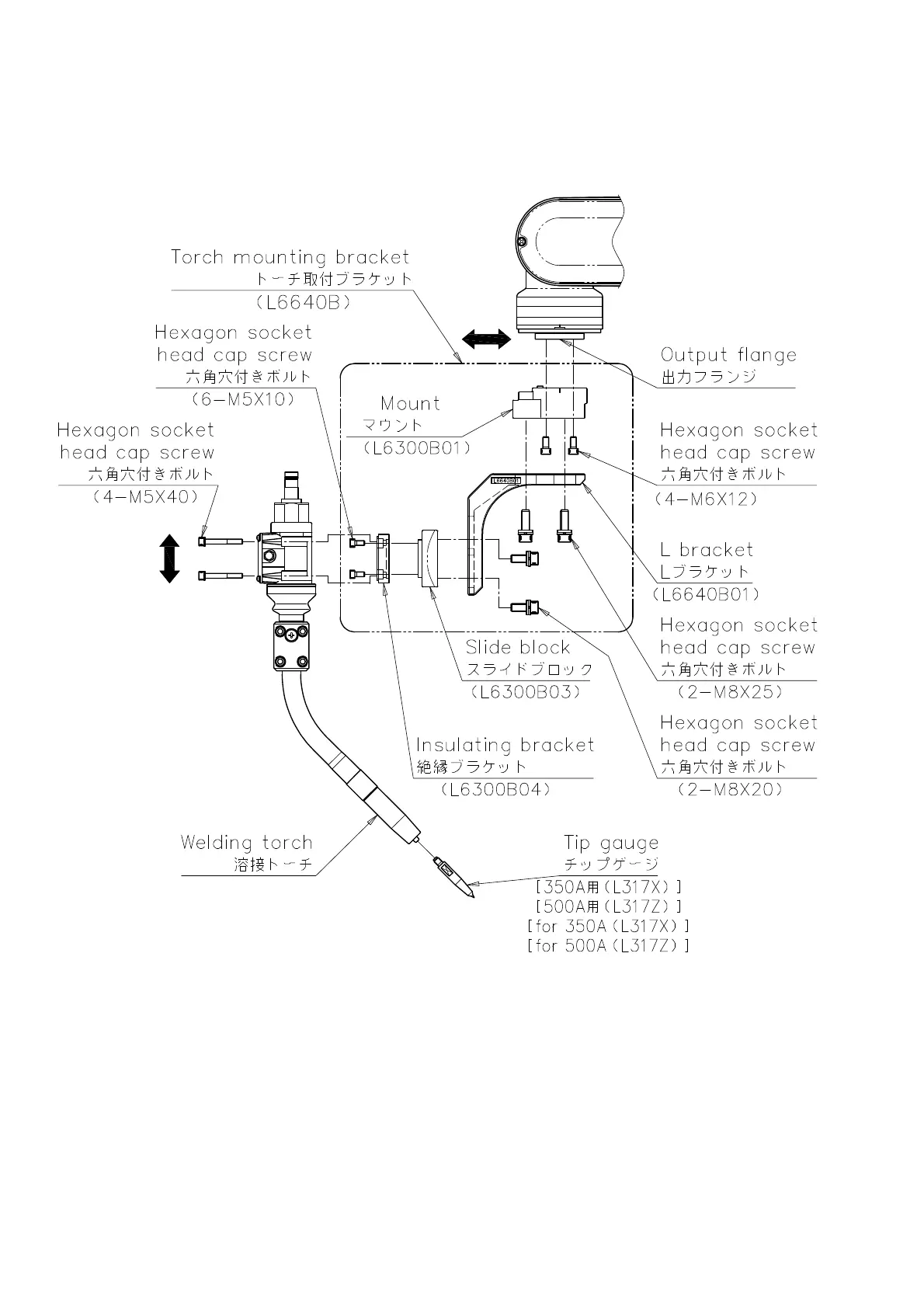

Fig. 3.1 Mounting the torch and bracket
