Battery charger for the PUMA T2 hand-held radio
Technical Manual
General information and safety recommendations
P/N: 779-0357/02
Revision 04
OTE Proprietary Information
Page 3

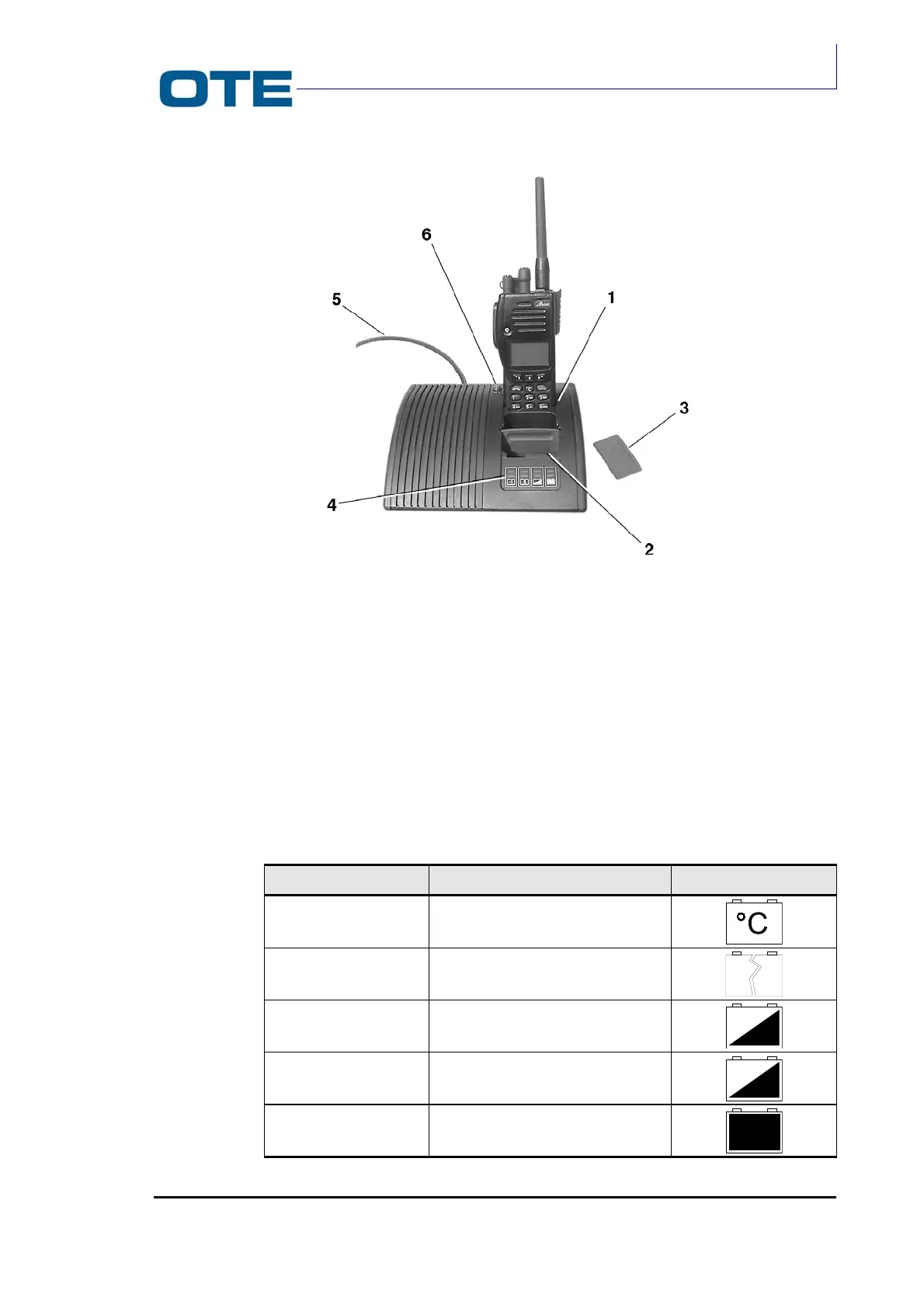

1. Upper slot with radio
2. Lower slot with removable separating septum in place
3. Upper slot separating septum
4. Light signalling panel
5. Power supply cable
6. Fast discharging button (S1)
Fig. 1.1: Battery charger
Tab. 1.1: LEDs meaning
LED colour Meaning Serigraphy
Yellow Excessive battery temperature
Orange Faulty battery
Red Battery in fast charging
Blinking Red Battery in discharge
Green Battery fully charged
