Maintenance
Use only high quality, non-rechargeable batteries in the DS5 or DS5X multiprobe. Refer to
Figure 15 and the following directions for DS5 and DS5X battery replacement.
1. Set the multiprobe horizontally on the work surface to prevent water leaking into the
mulitprobe battery compartment.
2. Unscrew the battery cap thumbscrew, counterclockwise.
3. Pull the cap out of its housing and slide the old batteries out.
4. Discard the old batteries. Insert the new batteries, observing polarity markings
located on the inside label. Failure to install the batteries in the correct orientation
may cause serious injury and instrument damage.
5. Coat the battery cap O-rings sparingly with silicone grease. Insert the cap back into
the multiprobe housing. Tighten the thumbscew, clockwise. Finger-tighten only.

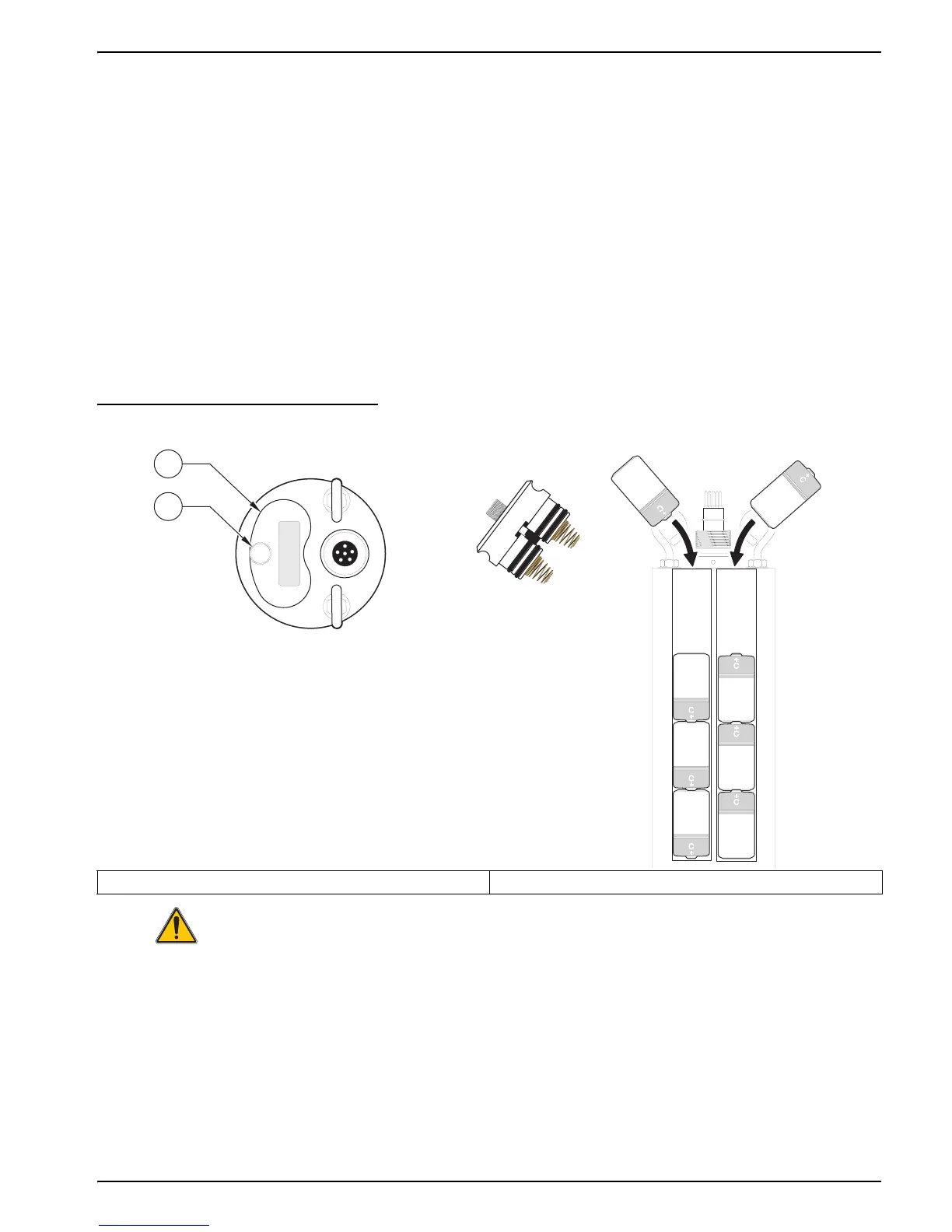

Figure 15 DS5 and DS5X Battery Replacement
6.2.2 MS5 Battery Replacement
DANGER
Batteries must be installed in the correct orientation or serious injury and
instrument damage may occur.
DANGER
Do not mix depleted and fresh batteries together or serious injury and instrument
damage may occur.
1. Set the multiprobe horizontally on the work surface to prevent water leaking into the
mulitprobe battery compartment.
1. Battery Cap 2. Battery Cap Screw
