OTT Hydrolab MS5 - Anchoring the MS5 Using the Bail Kit; Anchoring the MS5 Using the Mooring Fixture

32
Deployment
5.2.2.2 Anchoring the MS5 using the Bail Kit

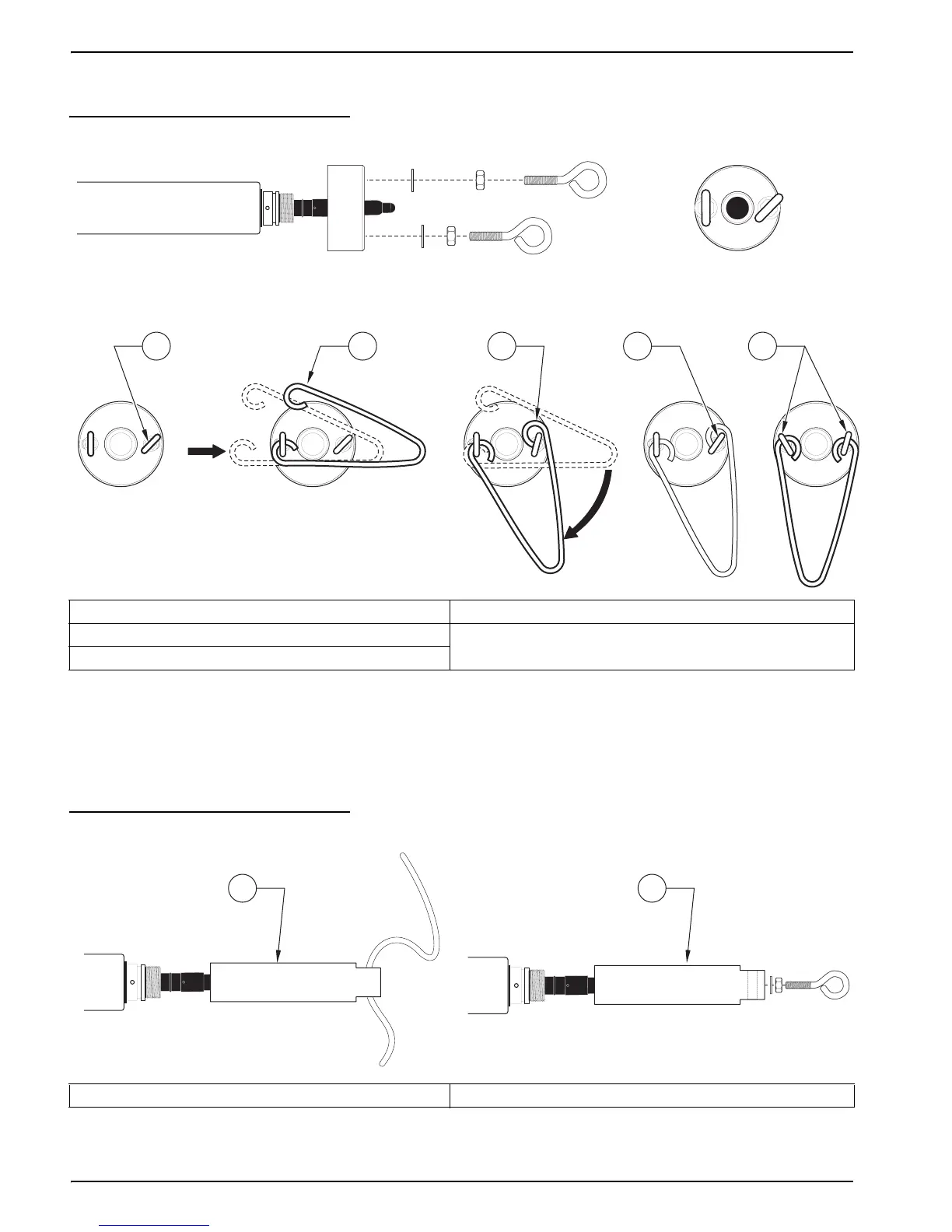

Figure 9 MS5 Support Bail Installation
5.2.2.3 Anchoring the MS5 using the Mooring Fixture
A MS5 equipped with an internal battery pack requires the MS5 mooring fixture which
screws onto the mulitprobe bulkhead connector and provides an eyelet for rope or wire
when no cable is used during deployment.
Figure 10 MS5 Mooring Fixture
1. Turn the eye bolts to the positions shown. 4. Rotate the eye bolt around the bail as shown.
2. Hook the bail into the eye bolt as shown. 5. Finish rotating the eye bolts until the bail cannot
be removed.
3. Rotate the bail into the other eye bolt as shown.
12345
1. Mooring fixture used with rope or chain. 2. Mooring fixture used with eye bolt.
12
