60
Charger Aux Light
EQ Misc Advanced
Logging Stats
EXIT GO
Adjusts the Current
Limit, Absorb, and Float
recharging voltage set
points
AUX control includes:
• Vent Fan
• PV Trigger
• Error Output
• Night Light
• Float
• Diversion: Relay
• Diversion: Solid State
• Low Battery Disconnect
• Remote
The Light feature con-
trols the backlighing of
the Charge Controllers
LCD screen and soft
key buttons
EQ allows manual or
automatic battery
equalization recharging
Misc o ers additional
settings and service
information
The Advanced menu allows the user to ne-
tune the Charge Controller using the following
screens:
• Snooze Mode
• Wakeup Mode
• MPPT Mode
• Park Mpp
• Mpp Range Limit % VOC
• Absorb Time
• Absorb End Amps
• Rebulk Voltage
• Vbatt Calibration
• RTS Compensation
• Auto Restart
• Aux Polarity
• Reset to Defaults?
The Logging screens display
primary and secondary power
production information, including
power peaks
Stats shows time-
based information
regarding the Charge
Controller

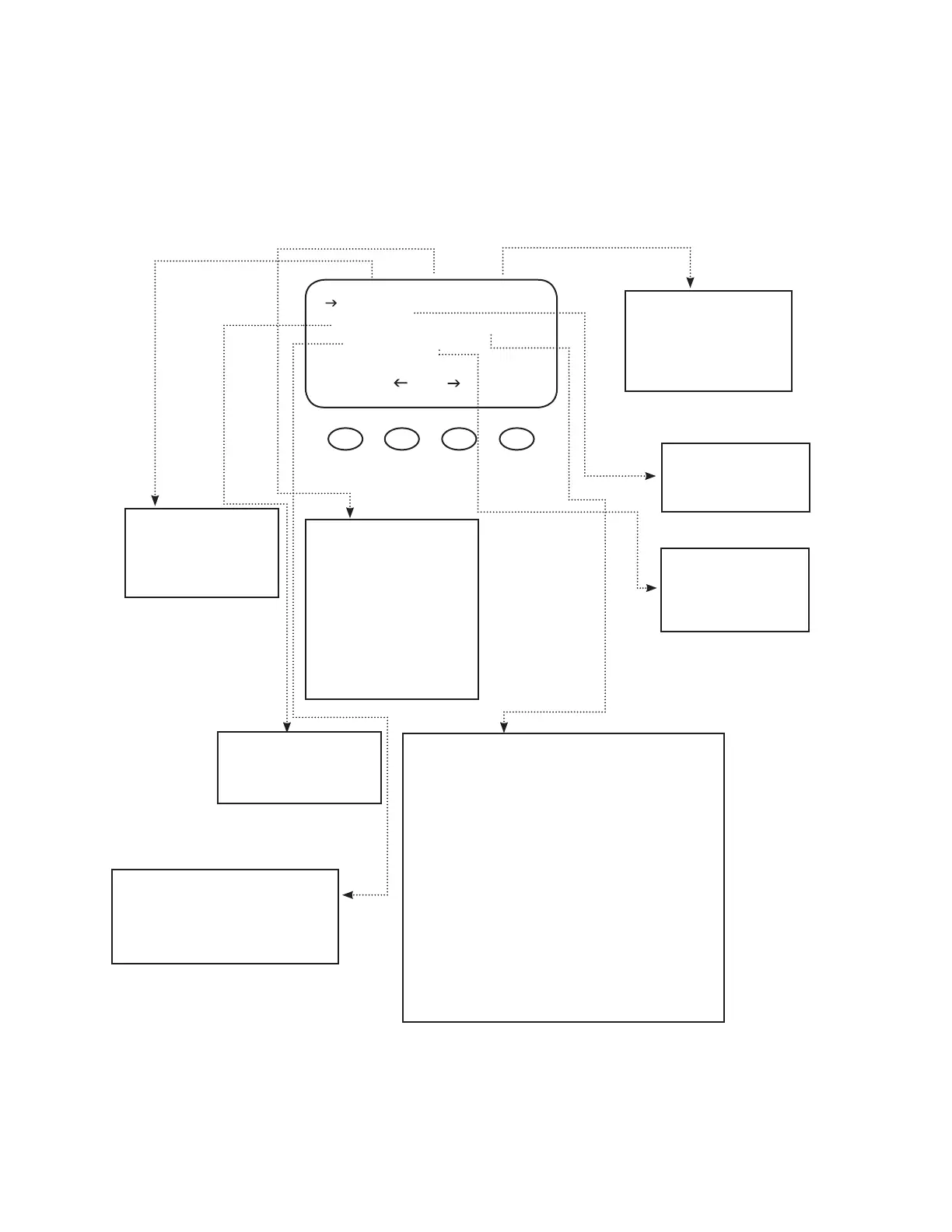

19. Abbreviated Menu Map
Much of the Charge Controller activity takes place around the MAIN screen. From this screen, the user
can access other screens to both observe system activiy and make adjustments to certain critical func-
tions.
