Outback Power Systems FLEXmax 60 User Manual

66
23. MATE-Displayed Charge Controller Screens
Status Mode Screens
The Charge Controller STATUS MODE Screens displayed on the optional OutBack MATE (Rev 4.0.4 or
greater) include MODE, METER, and SET (SETPOINT). In STATUS Mode, these functions can be viewed
by the MATE, but not changed. Please see the MATE Installation and User Manual for more information.
Charge Controller MODE Screens
• charger mode: displays one of  ve charging stages (Bulk, Absorption, Float, Silent, or Equalization)
• aux relay mode: displays one of nine Charge Controller AUX modes (Vent Fan, PV Trigger, ERROR OUT-
PUT, Night Light, FLoat, Diversion: Relay, Diversion: Solid St, Low Batt(ery) Disconnect, Remote)
• aux relay state: indicates if the AUX is ON or OFF

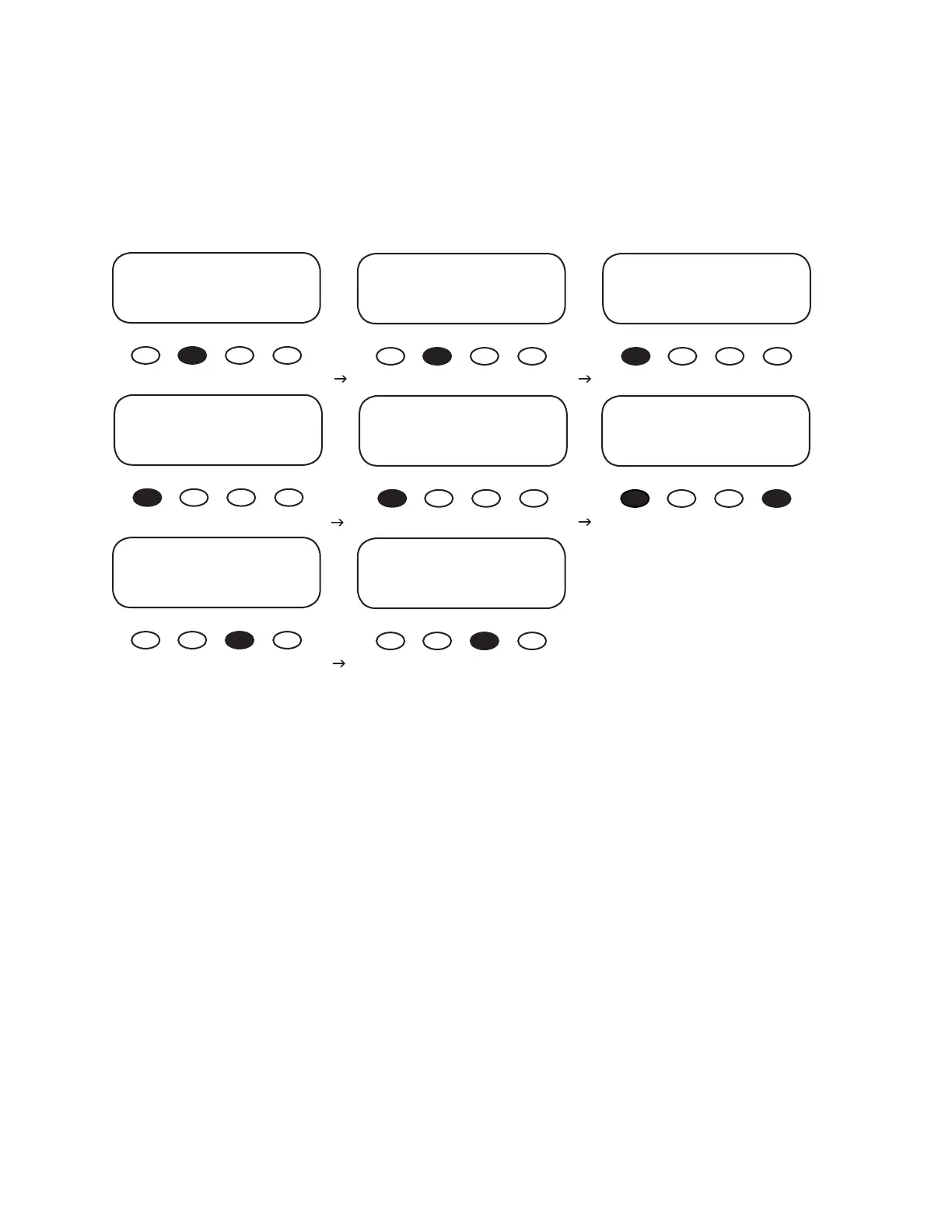

Press the <STATUS> soft key
to return to the STATUS menu.
Then press <METER> to view
the CC METER screens.
MAIN------------------------------
12:00:30P
SUM STATUS SETUP ADV
STATUS---------------------------
choose product:
FX CC DC MAIN
STATUS/CC/PAGE 1-----------
MODE METER SETP PG2
STATUS/CC/MODE---------P02
charger mode: Absorb
DOWN STATUS PORT
STATUS/CC/MODE---------P02
aux relay mode:
Night Light
DOWN UP TOP PORT
STATUS/CC/MODE--------P02
aux relay state: ON
DOWN UP TOP PORT
STATUS/CC/MODE--------------
end of mode menu
UP TOP STATUS
STATUS/CC/MODE---------P02
charger mode: Silent
DOWN STATUS PORT
