4
Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
Remove any internal components or packaging from the barbecue body.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2

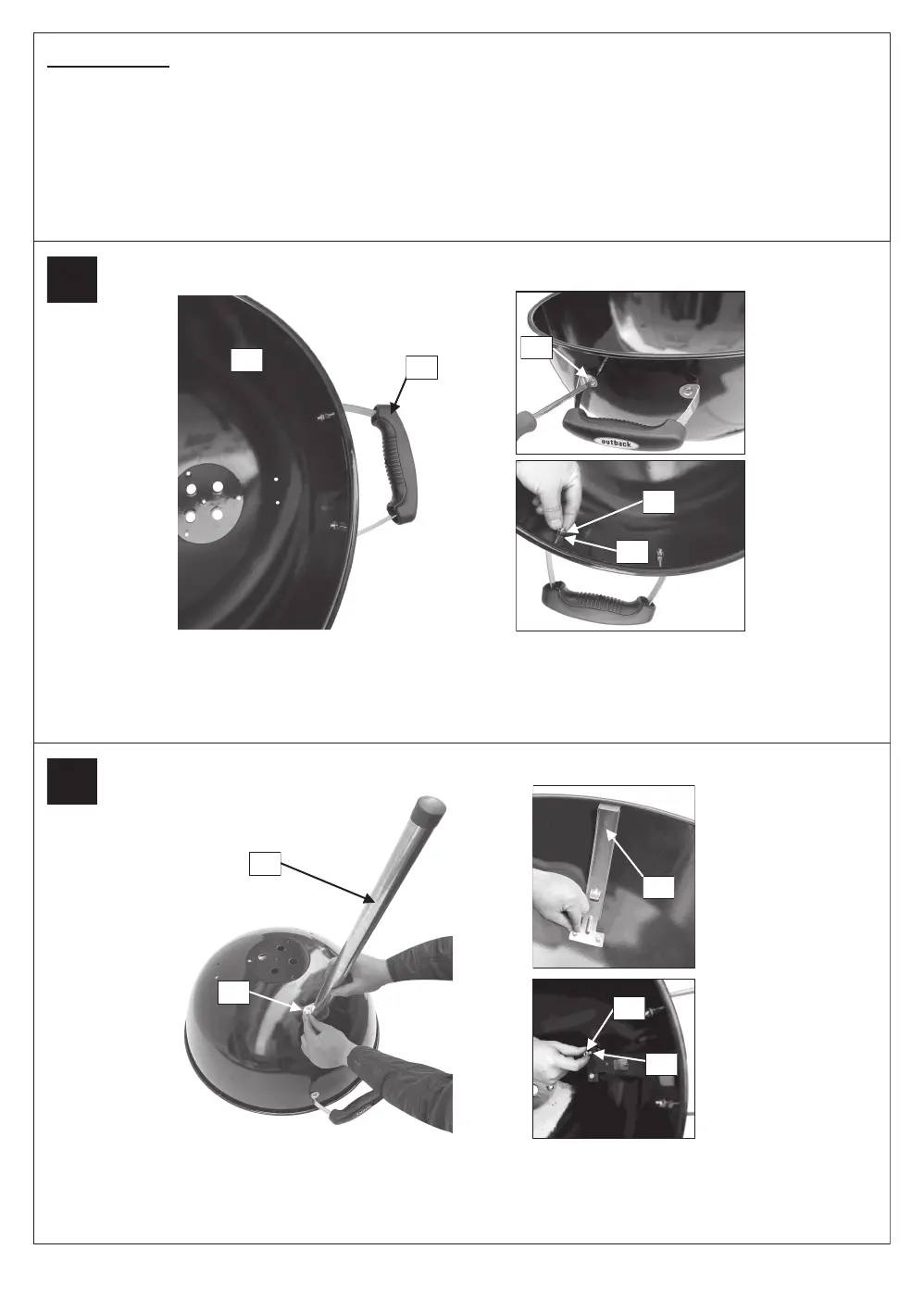

Attach the Front Leg (C1) and the Grill Bracket (B5) onto the Barbecue Body(B1) using the
M6x12 bolts (D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.
Attach the Handle (A3) onto the Barbecue Body (B1) using the M6x12 bolts (D1x2pcs), M6
washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.
C1
D1
D4
D2
B1
A3
B5
D2
D4
D1
To Next Page
