Outback Comet Kettle K102 - Page 7

7
7
8

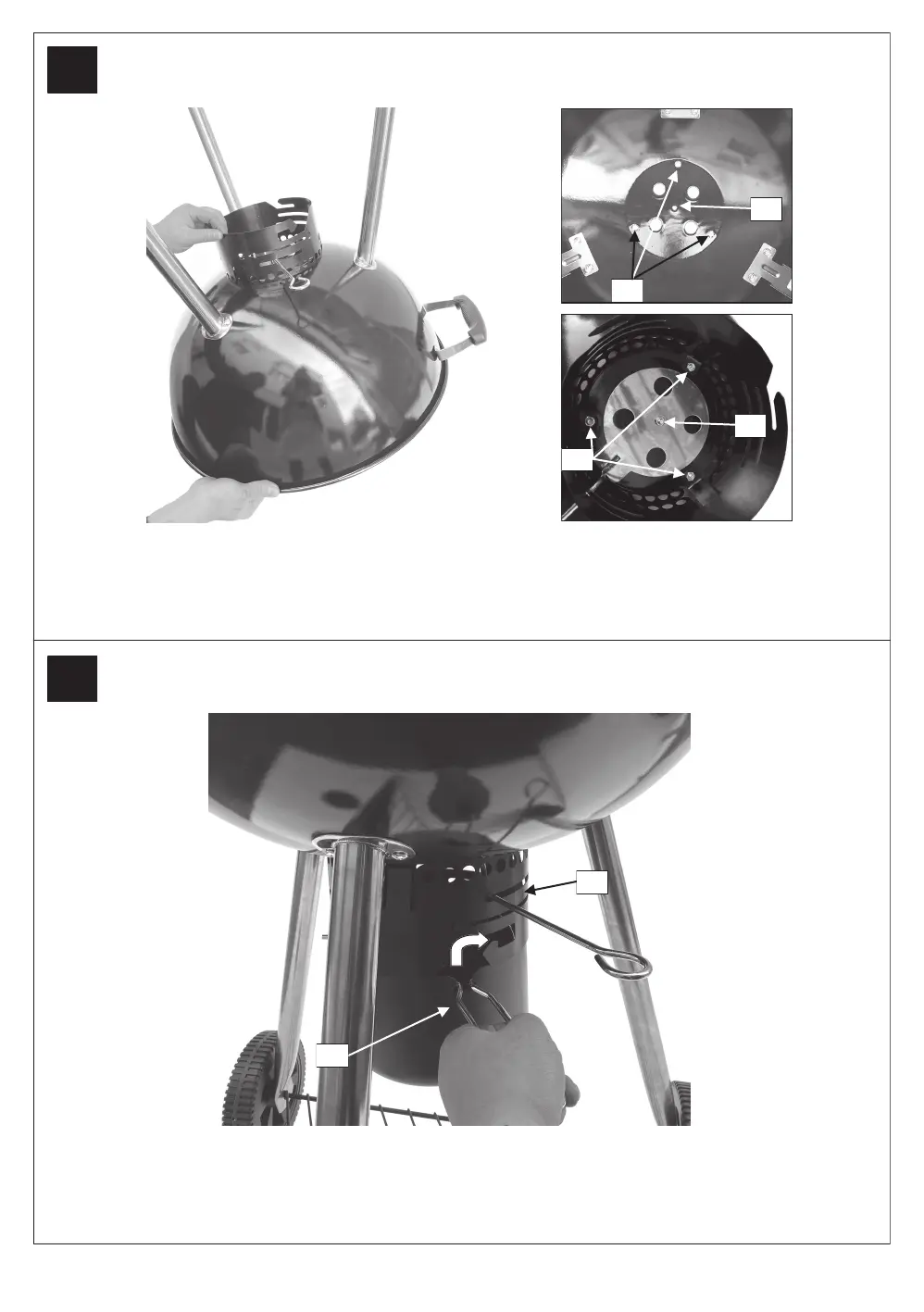

Place the Ash Tray (B8) into position underneath the Ash Tray Bracket (B7).
B8
B7
D5
Attach the Ash Tray Bracket Assembly onto the Barbecue Body (B1) using the M5x12 bolts
(D5x3pcs) and M5 Nuts (D6x3pcs) as shown.
Attach the Air vent(B9) to Barbecue body(B1) using the M6 X 12 Bolt(D1x1pce) and M6
Nut(D2x1pce).
D1
D2
D6
Top View
Bottom View
