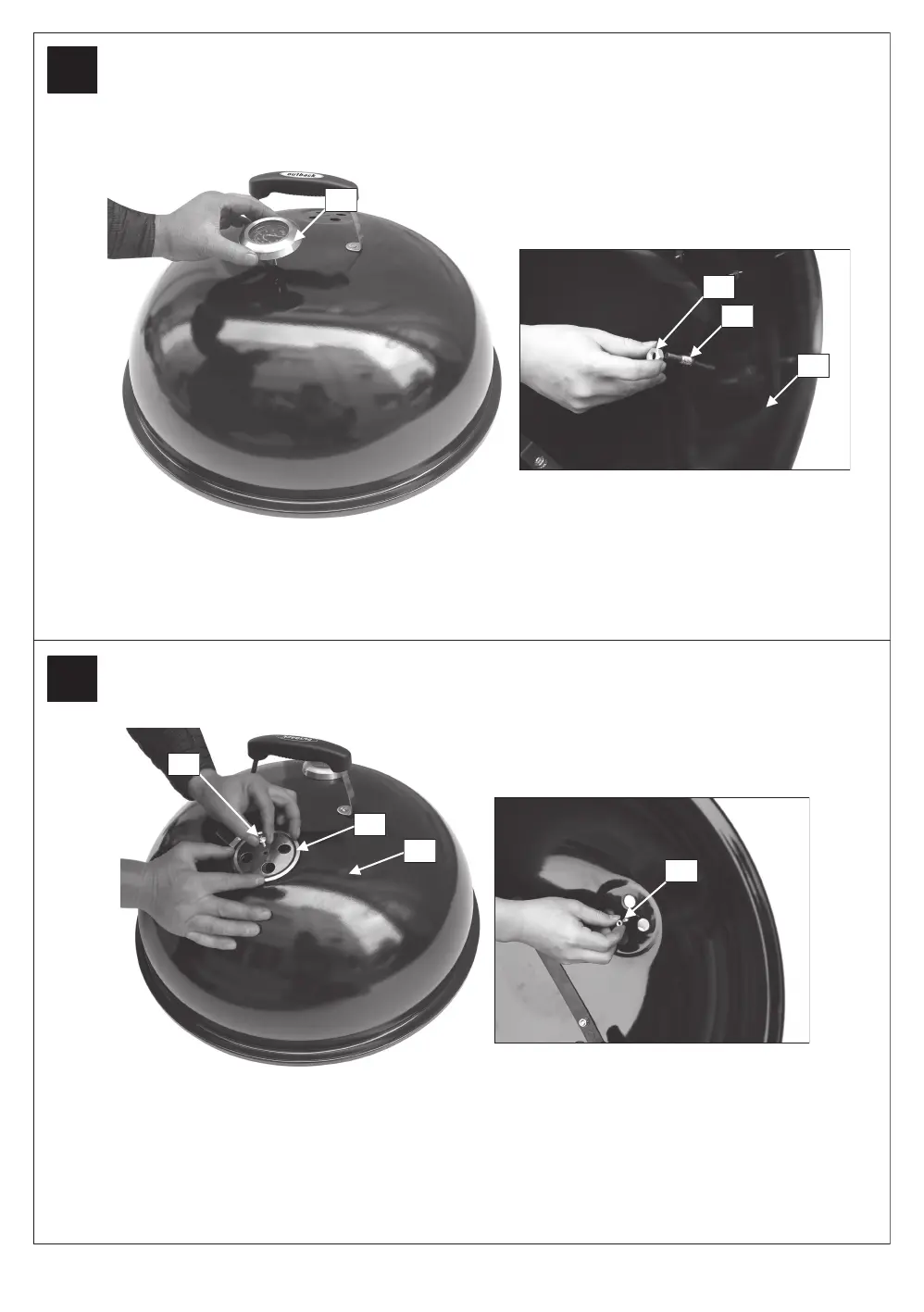

Attach the Heat Indicator (A5) onto the Hood (A1) using the M8 Nut (D3x1pc) as shown.
A5
D3
A1
12
A4
A1
D6
D5
Attach the Air Vent (A4) onto the Hood (A1) using the M5x12 bolt (D5x1pc) and M5 Nut
(D6x1pc) as shown.
ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR
INSTRUCTIONS ON OPERATION AND MAINTENANCE.
