5
Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
2

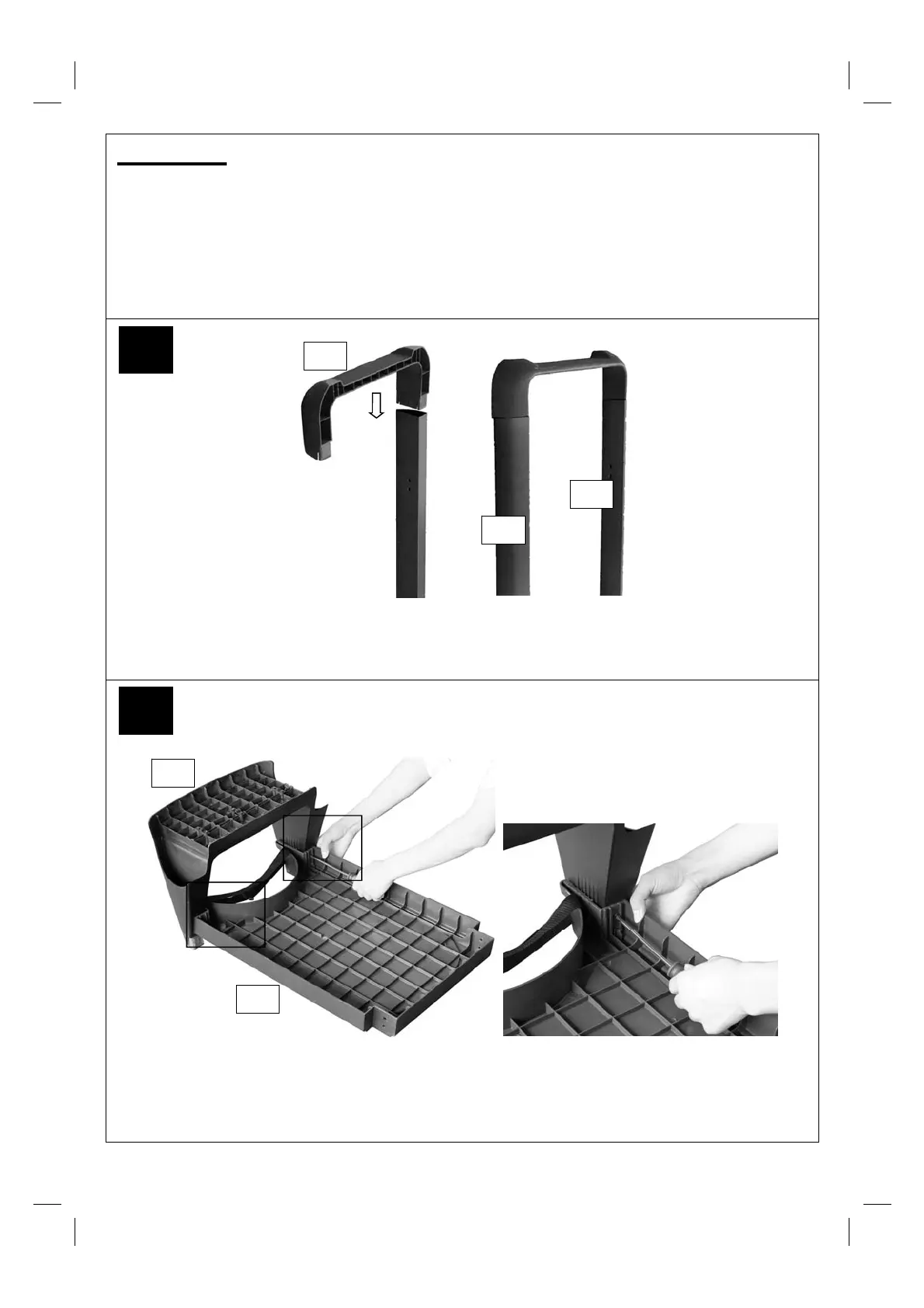

Attach the Right Front Leg (C12) and Right Rear Leg (C13) to the Leg End Loop (C15). The
legs are a push fit onto the leg end loop. In case of difficulty, they may need tapping with a soft
faced mallet. Take care not to damage the parts.
1
C15
C12
C13
Attach the Gas Bottle Holder (C14) to the Bottom Shelf (C20) using ST4.8x15 Screws
(D7x2pcs). Take care not to over tighten these screws which will damage the plastic
gas bottle holder.
C20
C14
