Outback Jupiter 4 - Assembly - Part 8: Side Burner Components; Side Burner Shelf and Valve Installation

12
15
16

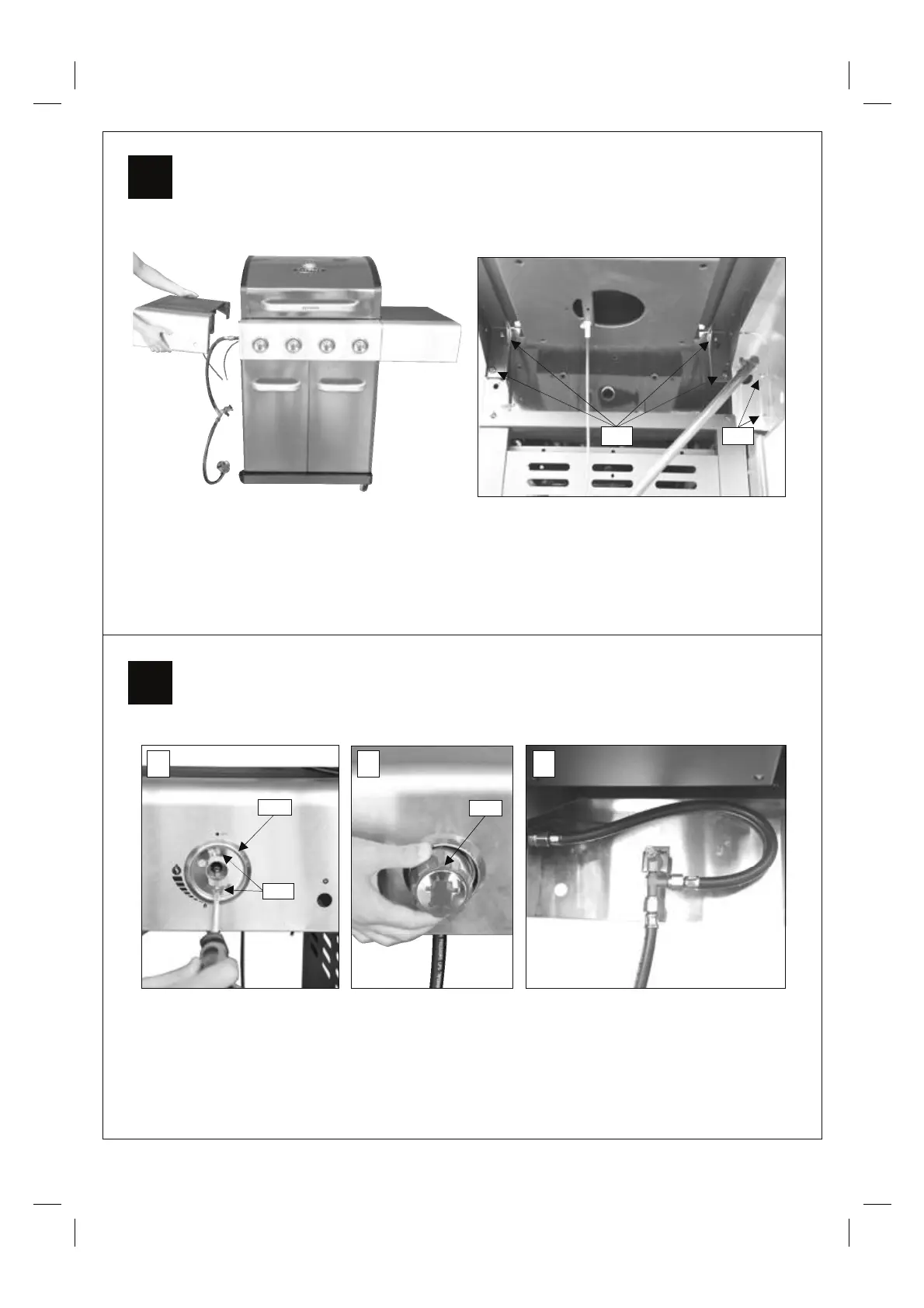

Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screw (D2x2pcs)
and M6x15 Bolts (D5x4pcs) as shown.
Attach the side burner valve and Knob Bezel (C6) onto side burner shelf using M4x10 Bolts
(D5x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem.
Ensure there are no rings in side burner hose and hose does not contact any parts as
shown in C.
D3 D2
C8
C7
D3
A B C
