SPECIFICATIONS:
Output Current Rating: 60 Amps
Default Battery System Voltage: 12, 24, 36, 48 or 60VDC (adjustable)
PV open circuit voltage: 120VDC Maximum
Standby power consumption: Less than 1 watt typical
Charging regulation methods: Five stage: Bulk, Absorption, Silent (Battery Full), Float , Equalization
Voltage regulation setpoints: 13-80VDC
Temperature compensation: With optional sensor 5millivolts per degree C per 2V cell
Voltage step down capability: Can down-convert from any PV array voltage within PV VOC limits of 120V to
any battery system voltage. Examples: 48V array to 24V ; 60V array to 48V
Digital Display: 4 line 20 character per line backlit LCD display
Remote Interface: RJ45 modular connector Cat 5 cable 8 wire
Operating Temperature Range: -40
o
to 60
o
C derated above 25
o
C
Environmental Rating: Indoor type 1
Conduit knockouts: Two 1/2-3/4” on the back; one 3/4-1” on each side; two 3/4-1” on the bottom
Warranty: Two years parts and labor, optional extended warranty available
Dimensions: Unit: 14.5"H x 5.75"W x 5.75"D Boxed: 17.8"H x 10W x 7"D
Weight: Unit 12 pounds Boxed 15 pounds

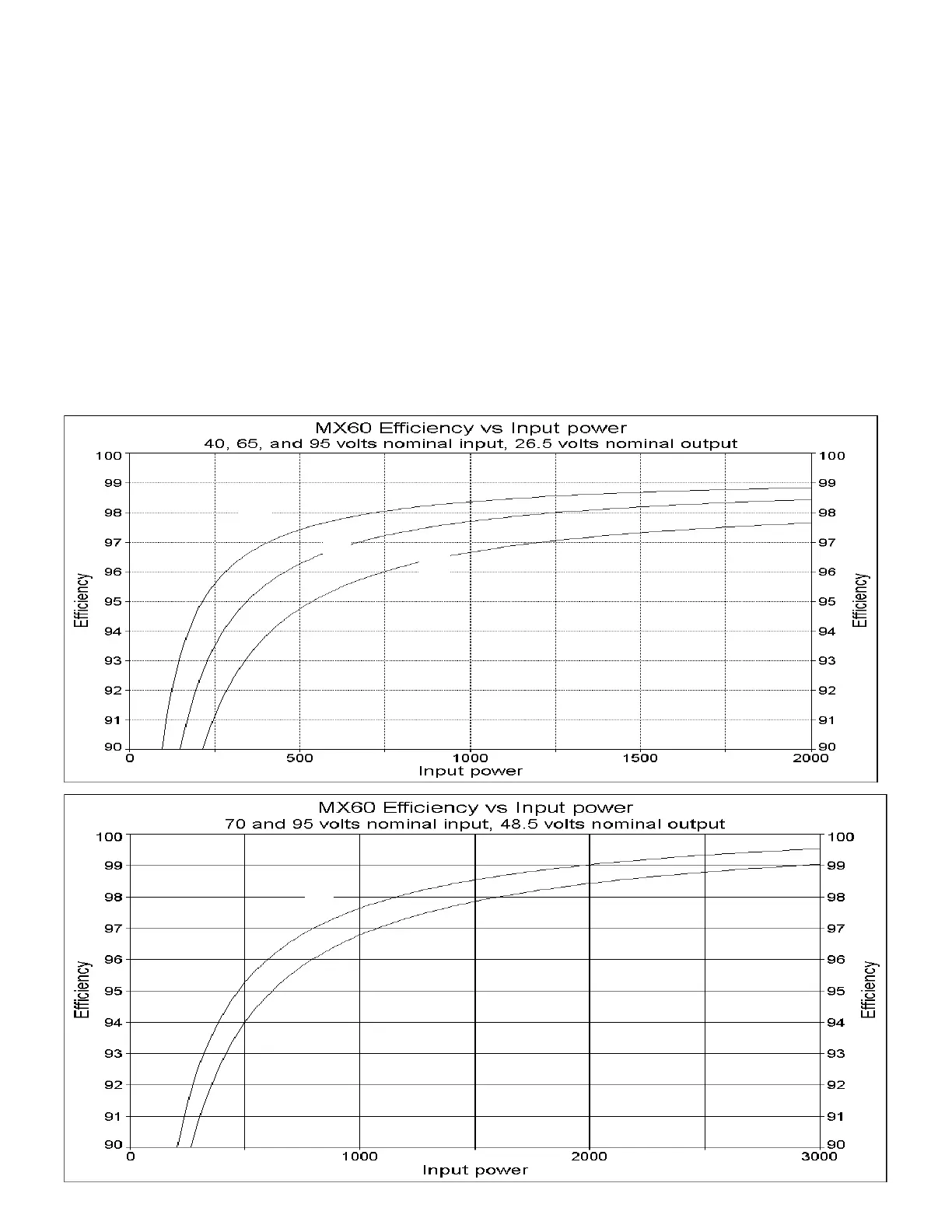

40
Volts
65
Volts
95
Volts
70
Volts
95
Volts
21
