INSTALLATION
The MX60 is designed to be mounted in a variety of ways. One of the more common methods of mounting is on an
OutBack charge controller bracket (CCB), attached to an OutBack PSDC enclosure. Each MX60 comes with three #10
stainless steel sheet metal screws for this purpose. Under the wiring compartment cover are holes through the mounting
feet for attachment to the CCB . There is also a mounting tab at the top of the MX60. When mounted to the OutBack
CCB, the left side knockout will line up with knockouts in the PSDC. A standard ¾" or 1" plastic snap-in bushing will offer
protection from chafing between the two boxes. Note that there are two placement options on the CCB that can be used
to match with knockouts in the PSDC. Mounting holes and knockouts are compatible with C40 controllers to help set an
industry standard. Two MX60 controllers may be installed on the CCB. Note the placement shown in Figure 1.

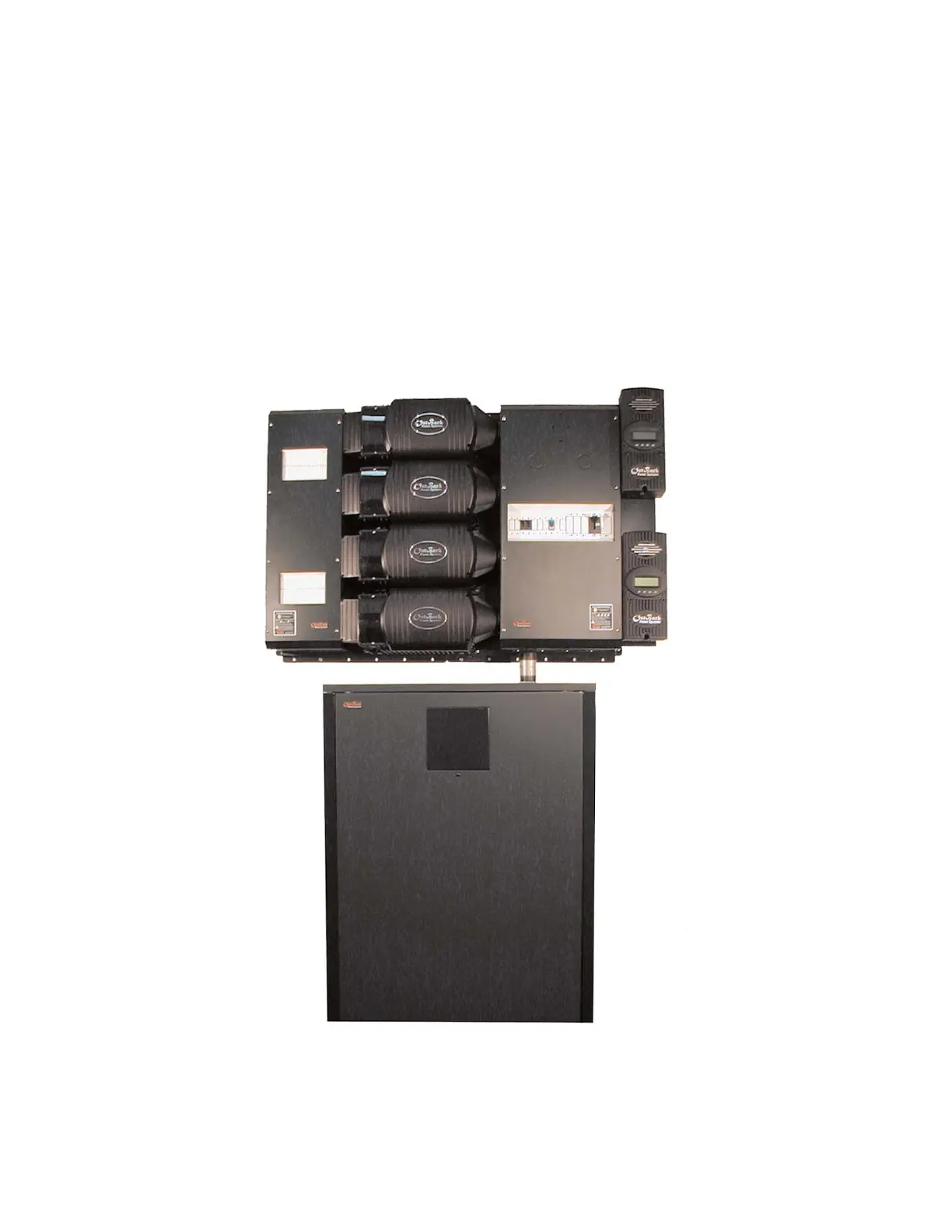

Figure 1 - Two MX60 controllers mounted on a CCB (charge controller bracket)
with four OutBack FX2000 and the PSDC, PSAC and PSR enclosures
3
MX60
CCB
MX60
PSR
Power System
Rack
Battery Enclosure
PSDC
DC Disconnects
PSAC
AC Disconnects
PSMP
Mounting Plate
FX2000
Sine Wave
Inverter/Chargers
