5
1
D. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp
edges are present.

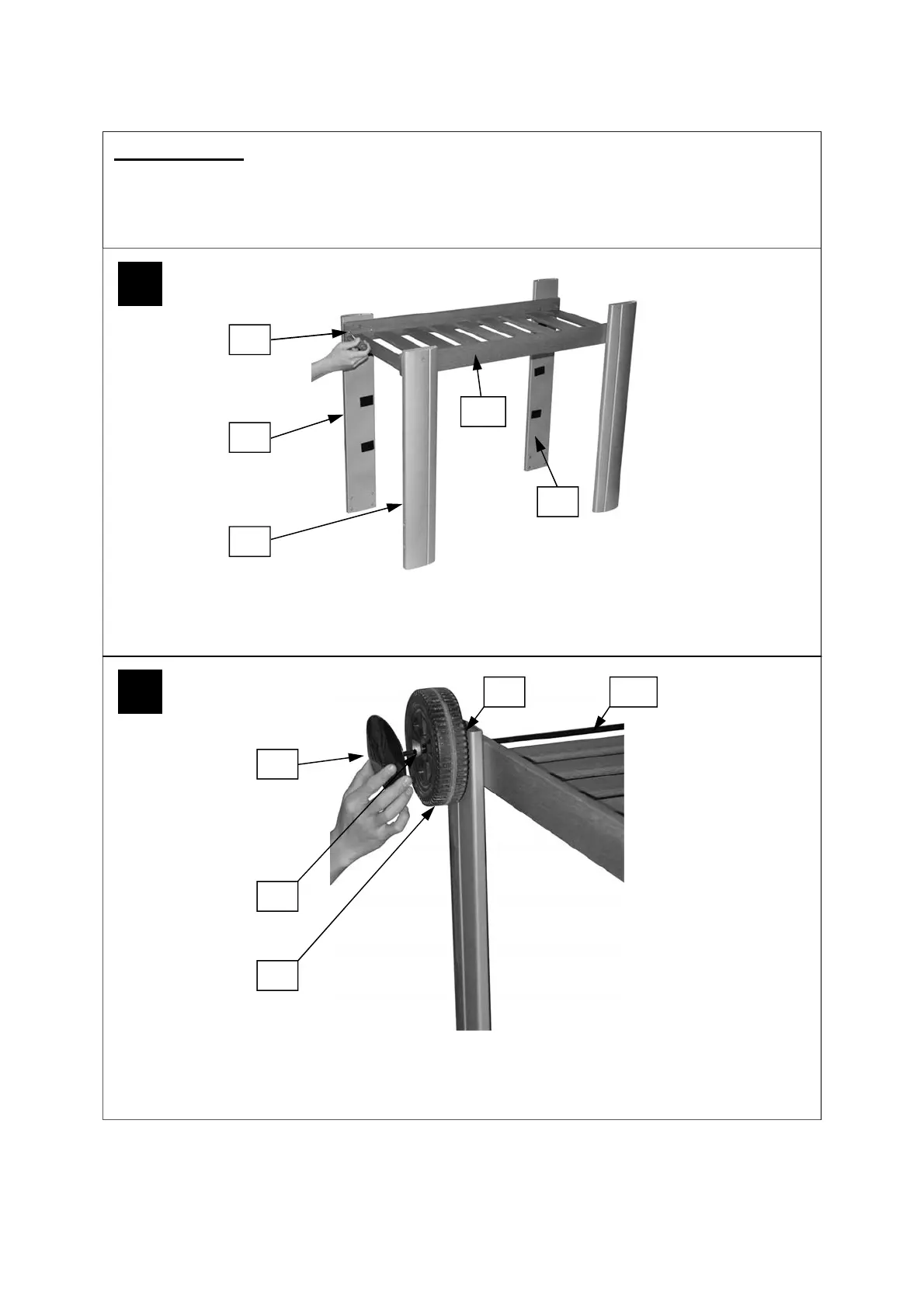

Attach the legs (C2,C3,C4,C5) to the trolley base (C11) using the M6x25 bolts (D5). Take
care to fix the legs with Velcro attached as shown in the illustration.
(Photo depicts trolley
from the reverse side)
C9
Slide the axle (C10) through the corresponding holes in the short legs. Place a washer (D8)
on each end of the axle. Slide the wheels (C8) over each end of the axle. Secure the wheels
into place with the locknuts (D9). Snap the hubcaps (C9) into the wheels.
2
C3
C2
D5
C11
C4
D8 C10
D9
C8
