7
With the barbecue laid on the ground, insert a M6x145 bolt (D6) through the short leg,
through a spacer (D7), and secure the bolt into the sidewall of the body. repeat the process
for all the legs until the body is completely fixed to the trolley.
NOTE:
When positioning the body of the barbecue, ensure the control panel is on
the same side as the legs with Velcro fastenings
.

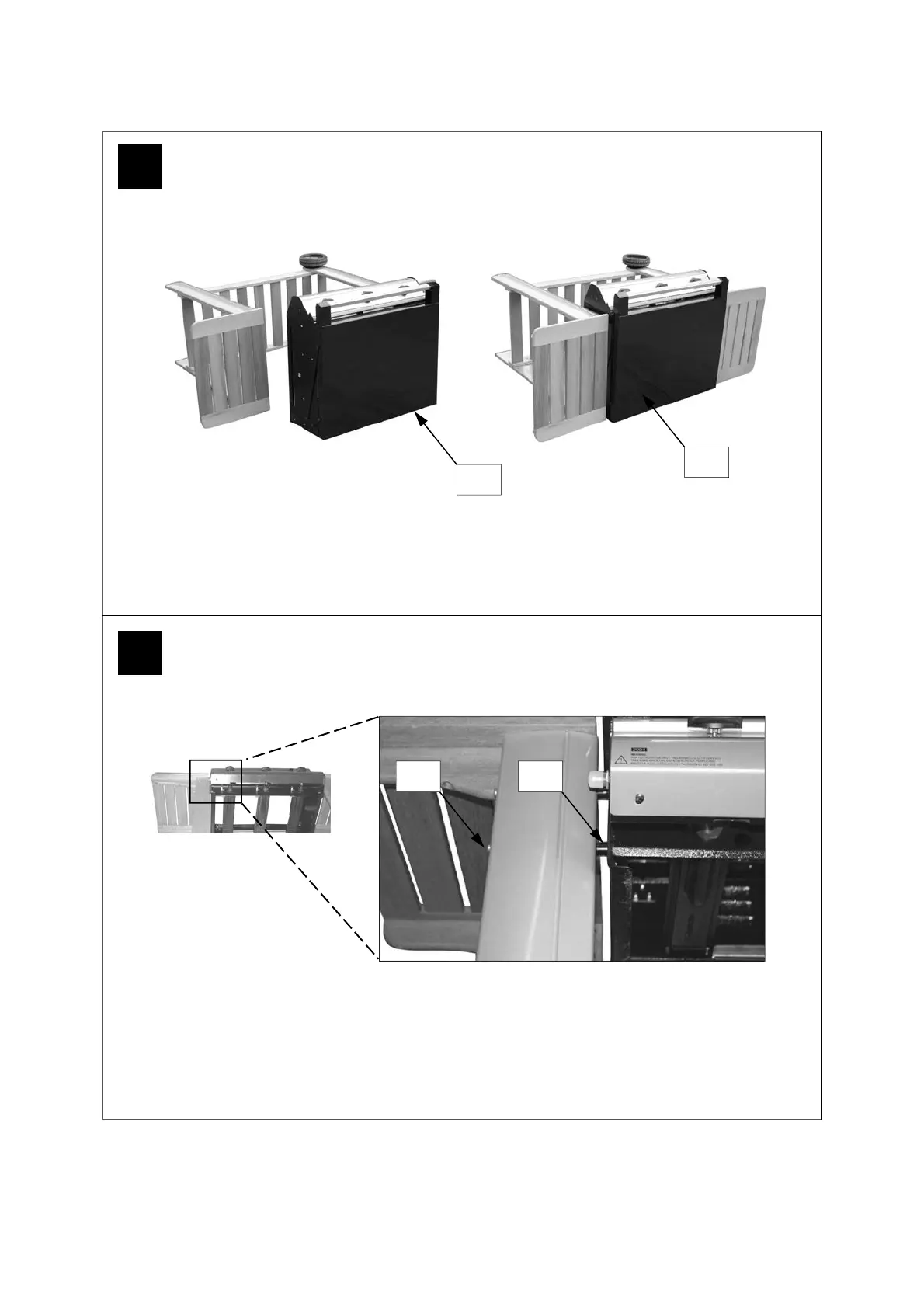

Lay the assembled trolley on its side. Lay the body (B1) on its back and slide into position between
the trolley legs. Warning: Care must be taken to ensure lid does not fall open unexpectedly.
6
5
B1
B1
D6 D7
