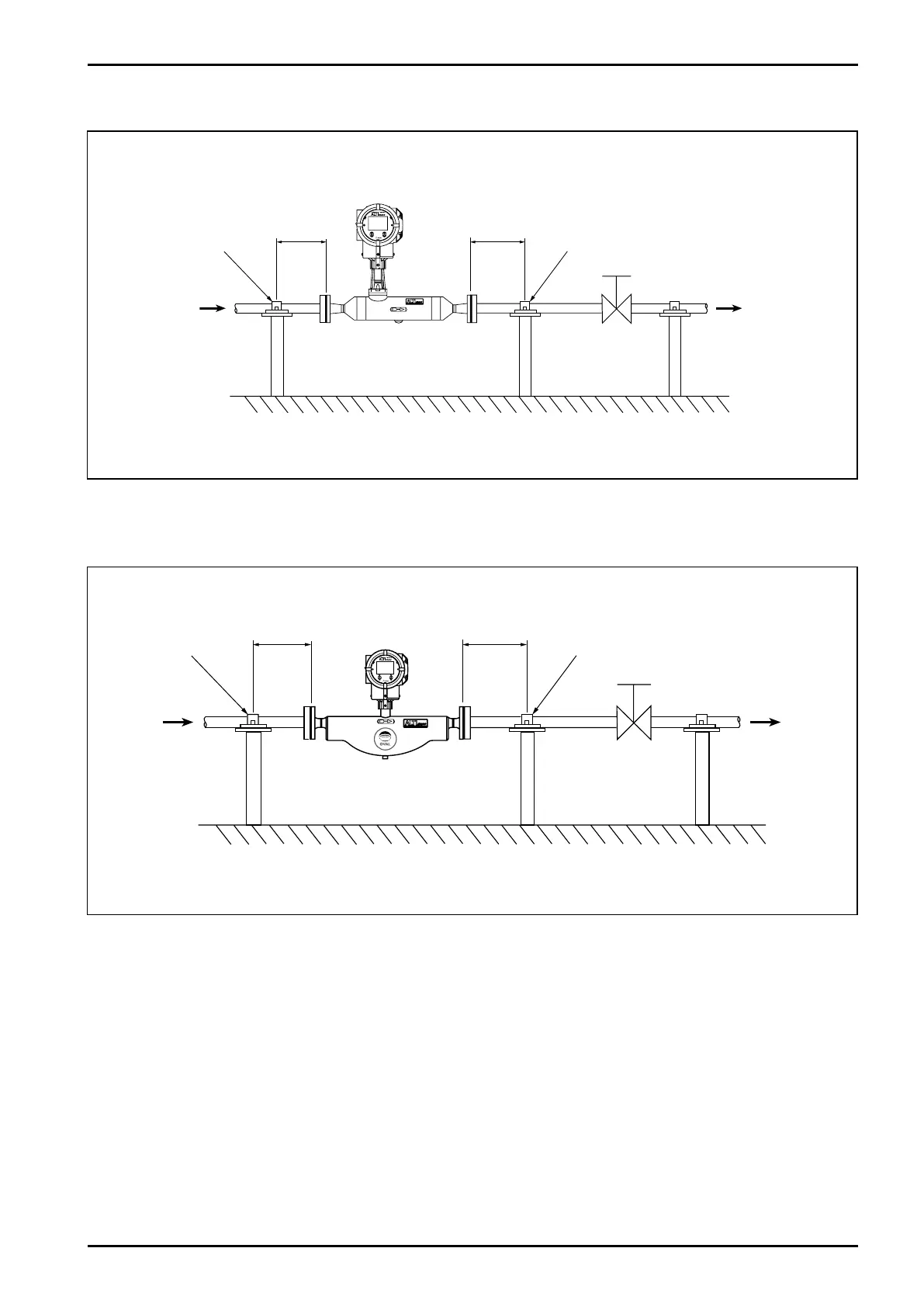

6.6.2 Type S pipe supports
Fig.6.19
3 to 10D 3 to 10D
Pipe support
IN OUT
Pipe support
Valve
D: Nominal pipe size
Fig.6.20
3 to 10D 3 to 10D
Pipe support
IN OUT
Pipe support
Valve
D: Nominal pipe size
