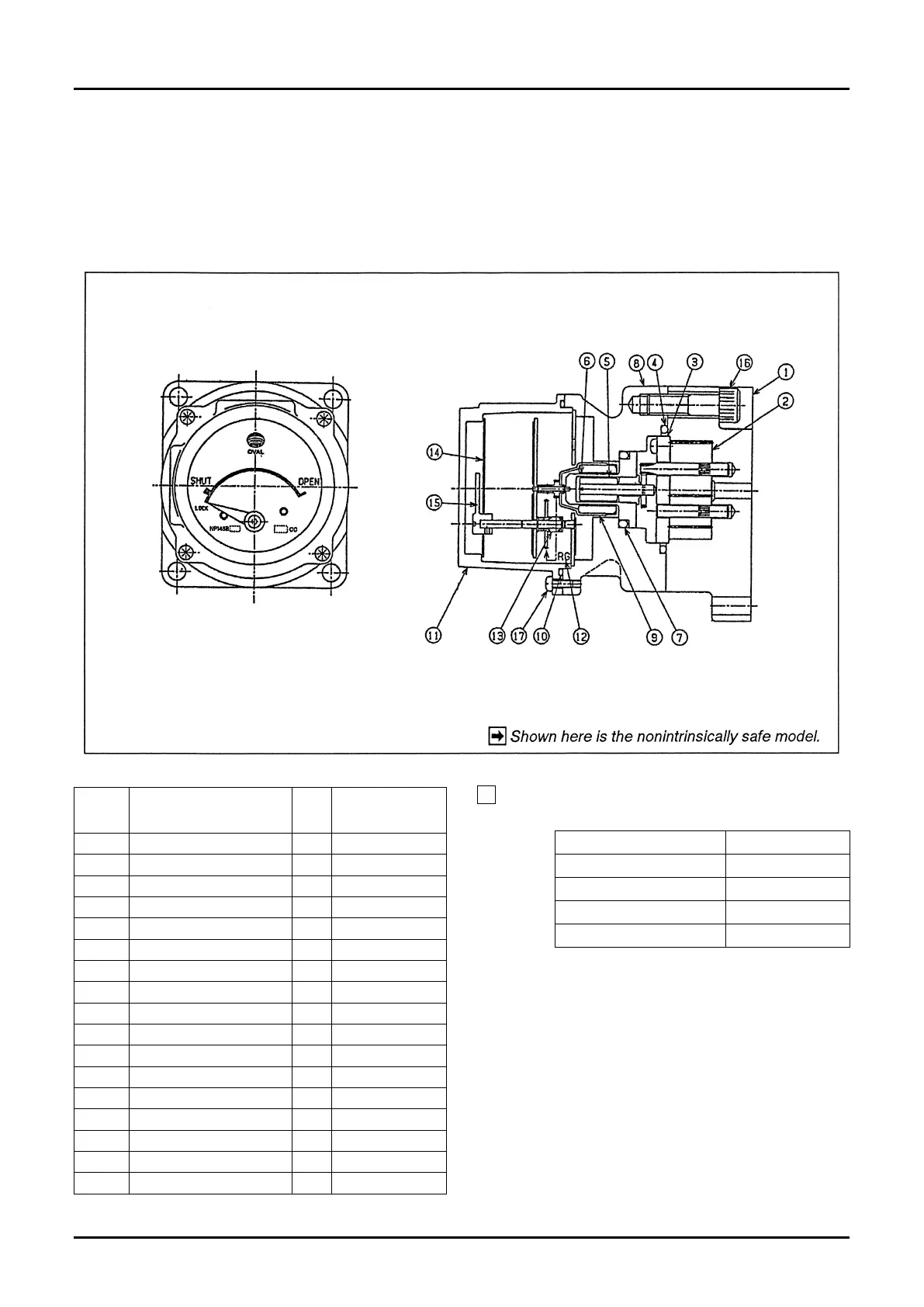

Sym.
No.
Part Name Q’ty Remarks
1 Body 1
2 Rotor 1 set
3 End Plate 1
4 O-Ring 1 G-45
5
Driving Magnet Ass’y
1
6 Cylinder 1
7 O-Ring 1 G-25
8 Top Cover 1
9
Following Magnet Ass’y
1
10 O-Ring 1 S-63
11 Register Cover 1
12 Reduction Gear Train 1
13 Friction Clutch 1
14 Dial Scale 1
15 Pointer 1
16 Bolt 6 M8
17 Screw 4 M3
NOTE: The following parts and subassemblies are
available as matched pair or assemblies.
Part Name Part or Ass’y No.
Rotors 2
Driving Magnet Ass’y 5
Following Magnet Ass’y 9
Reduction Gear Ass’y 12, 13
➡➡
