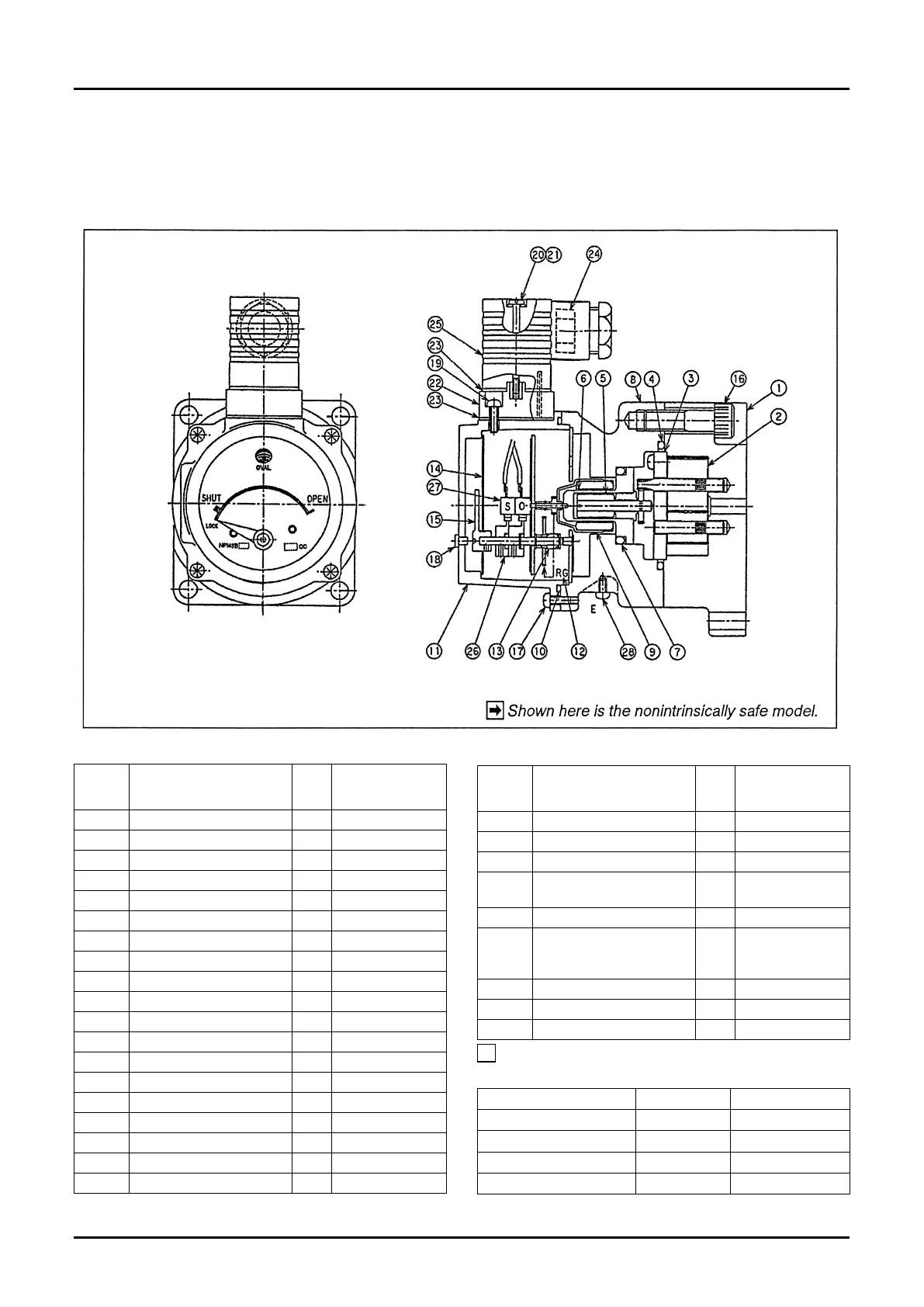

Sym.
No.
Part Name Q’ty Remarks
1 Body 1
2 Rotor 1 set
3 End Plate 1
4 O-Ring 1 G-45
5 Driving Magnet 1
6 Cylinder 1
7 O-Ring 1 G-25
8 Top Cover 1
9 Following Magnet 1
10 O-Ring 1 S-63
1 1 Register Cover 1
12 Reduction Gears 1
13 Friction Clutch 1
14 Dial Scale 1
15 Pointer 1
16 Bolt 6 M8
17 Screw 4 M3
18 Cap 1
19 Screw 4 M3
Sym.
No.
Part Name Q’ty Remarks
20 Screw 1 M3
21 Gasket 1
22 Bracket 1 GSA3000
23 Gasket 1 set
GSA200-4R,
GDM 3-7R
24 Gasket 1 φ10 I.D.
25 Connector 1
NonIS: GDM
3011J
IS: GDM3014J
26 Cam 2
27 Microswitch 2 Model AH1684
28 GND Screw 1
M3, IS spec. only
NOTE: The following parts and subassemblies are
available as matched pair or assemblies.
Part Name
Part or Ass’y No.
Remarks
Rotors 2
Driving Magnet Ass’y 5
Following Magnet 9
Reduction Gear Ass’y 12, 13
Microswitches incl.
➡➡
To Next Page
