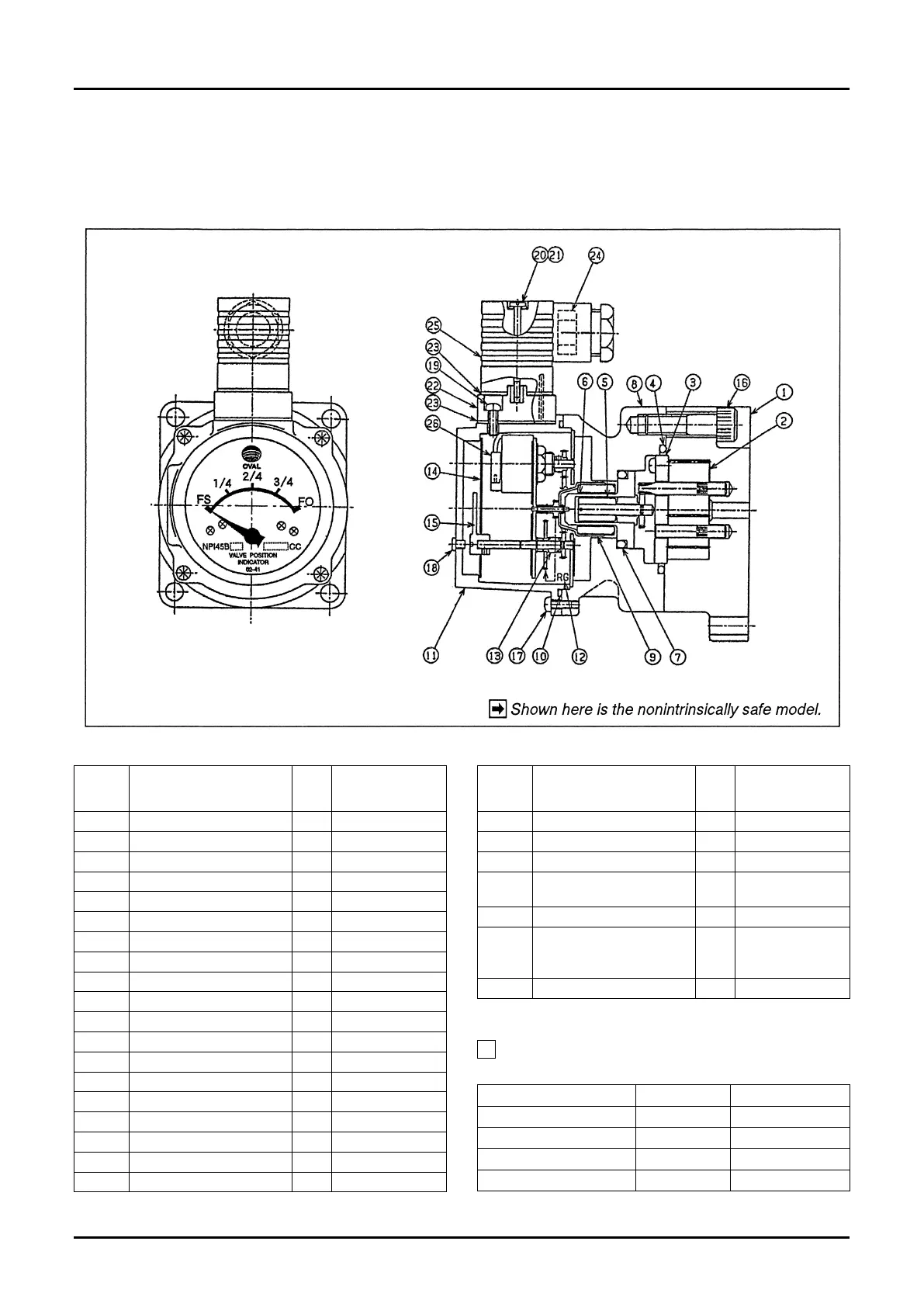

Oval NPI45B20 - Model NPI45 B20 Assembly Drawing and Parts List

Default Icon
26 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
 




Sym.
No.
Part Name Q’ty Remarks
1 Body 1
2 Rotor 1 set
3 End Plate 1
4 O-Ring 1 G-45
5 Driving Magnet 1
6 Cylinder 1
7 O-Ring 1 G-25
8 Top Cover 1
9 Following Magnet 1
10 O-Ring 1 S-63
11 Register Cover 1
12 Reduction Gears 1
13 Friction Clutch 1
14 Dial Scale 1
15 Pointer 1
16 Bolt 6 M8
17 Screw 4 M3
18 Cap 1
19 Screw 4 M3
Sym.
No.
Part Name Q’ty Remarks
20 Screw 1 M3
21 Gasket 1
22 Bracket 1 GSA3000
23 Gasket 1 set
GSA 200-4R,
GDM 3-7R
24 Gasket 1 φ10 I.D.
25 Connector 1
NonIS: GDM
   3011J
IS: GDM 3014J
26 Potentiometer 1 CP-2FCB-1
NOTE: The following parts and subassemblies are
available as matched pair or assemblies.
Part Name
Part or Ass’y No.
Remarks
Rotors 2
Driving Magnet Ass’y 5
Following Magnet 9
Reduction Gear Ass’y 12, 13
Potentiometer incl.
