With a model equipped with connectors (terminal block), make wiring connections in accordance with the
procedure given below:
Use cables conforming to the following specications for eld wiring unless otherwise specied:
Standard polyethylene-insulated cable 0.3mm
2
in conductor area
The maximum signal transmission length is one kilometer.
NOTE: If it exceeds one kilometer, consult the factory.
To prevent possibility of stray current pickup, route the field wiring sufficiently away from existing power
cables and power circuits.

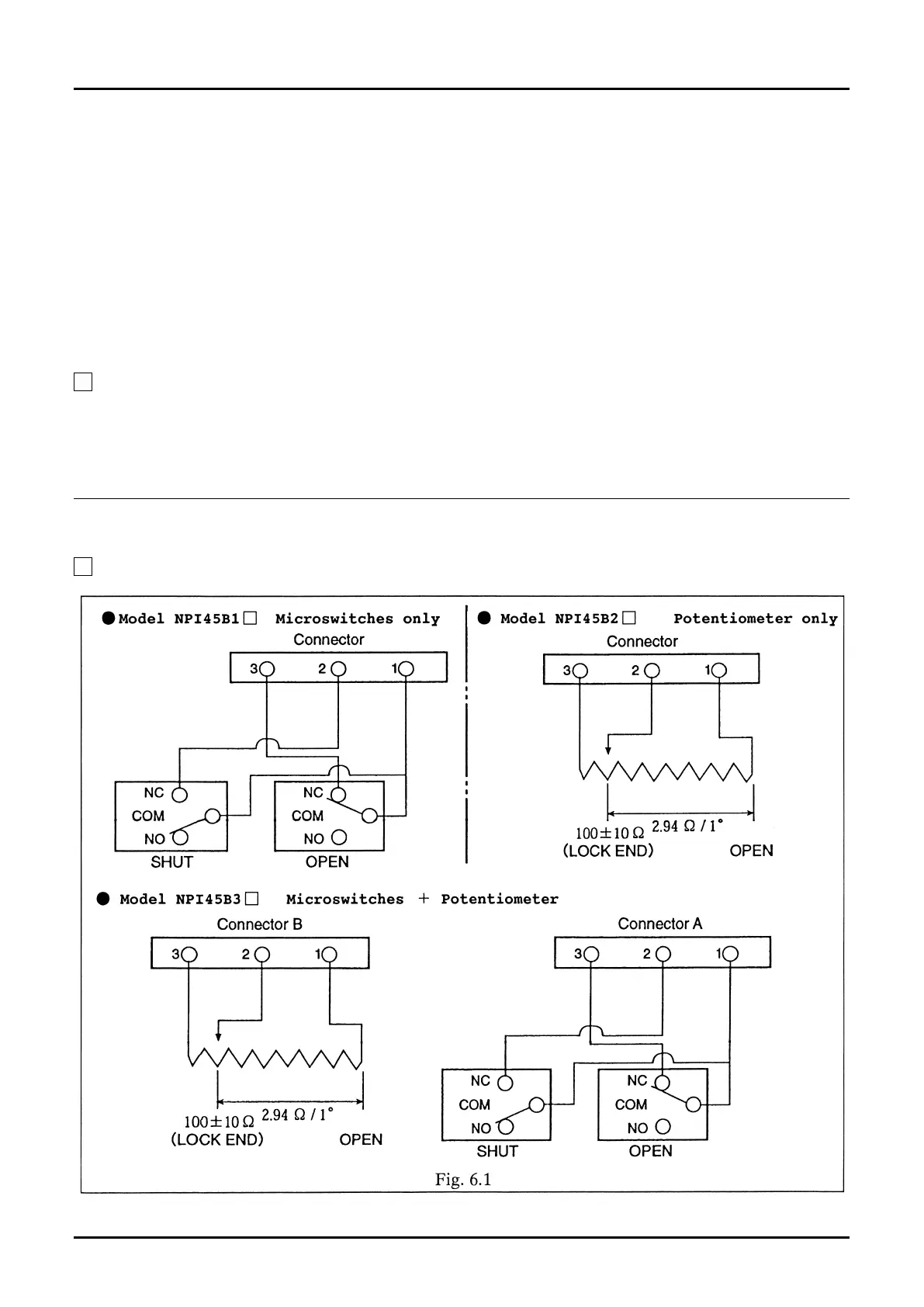

NOTE: All circuits below are shown in the totally closed position.
➡➡
➡➡
