Oval PG30 - Replacement Parts

T-518-11-E
5
Transmission gear engagement in the
transmission gear box shipped from our factory
before April, 1987, is as shown in the inset.
Pulse Generator Assembly
Sym.No. Part Name Q 'ty
101 Housing 1
102 Housing lid 1
103 Housing lid bolt (M3×15) 4
104 O-ring (JIS G70) 1
105 Washer, Housing lid (M5) 4
106 Shaft 1
107 Ball bearing (L-1040ZZ) 2
108
Blind plug (Rc(PT)1/8, hex. socket
head)
1
110 Setscrew (M3×4) 1
111 Toothed disk (with hub) 1
112 Thrust spacer 1
114 Holder 1
115 Detector (noncontact switch unit)
｝
1set116 Toothed washer, Detector
117 Nut, Detector
▲：Replacement parts
Sym.No. Part Name Q 'ty
118 Mounting bracket, Detector 1
119 Brake shoe
▲
｝
1set
120 Plate
121 Shoe shaft
122 Spring
123 Clip ring
124 Thrust spacer 1
126
Fitting screw, Detector mounting
bracket (M4×8)
2
127
Washer, Detector mounting
bracket (M4)
2
128 Plate fitting screw (M3×6) 2
129 Washer, Plate fitting screw (M3) 2
130 Holder fitting screw (M4×6) 2
131 Washer, Holder fitting screw (M4) 2
Mounting Bracket Assembly
Sym.No. Part Name Q 'ty
201 Mounting bracket 1
202 Bearing 1
203 Transmission shaft 1
204 Bevel gear 1
205 Coupling 1
Sym.No. Part Name Q 'ty
206 Coupling retaining pin 2
207 Fitting bolt, Mounting bracket 4
208 Thrust seat 1
209 Gasket, Mounting bracket 1
210 Oil retaining bearing 2
Once disassembled, apply a liquid sealant
(Hermeseal ＃ 723, or equivalent).
■

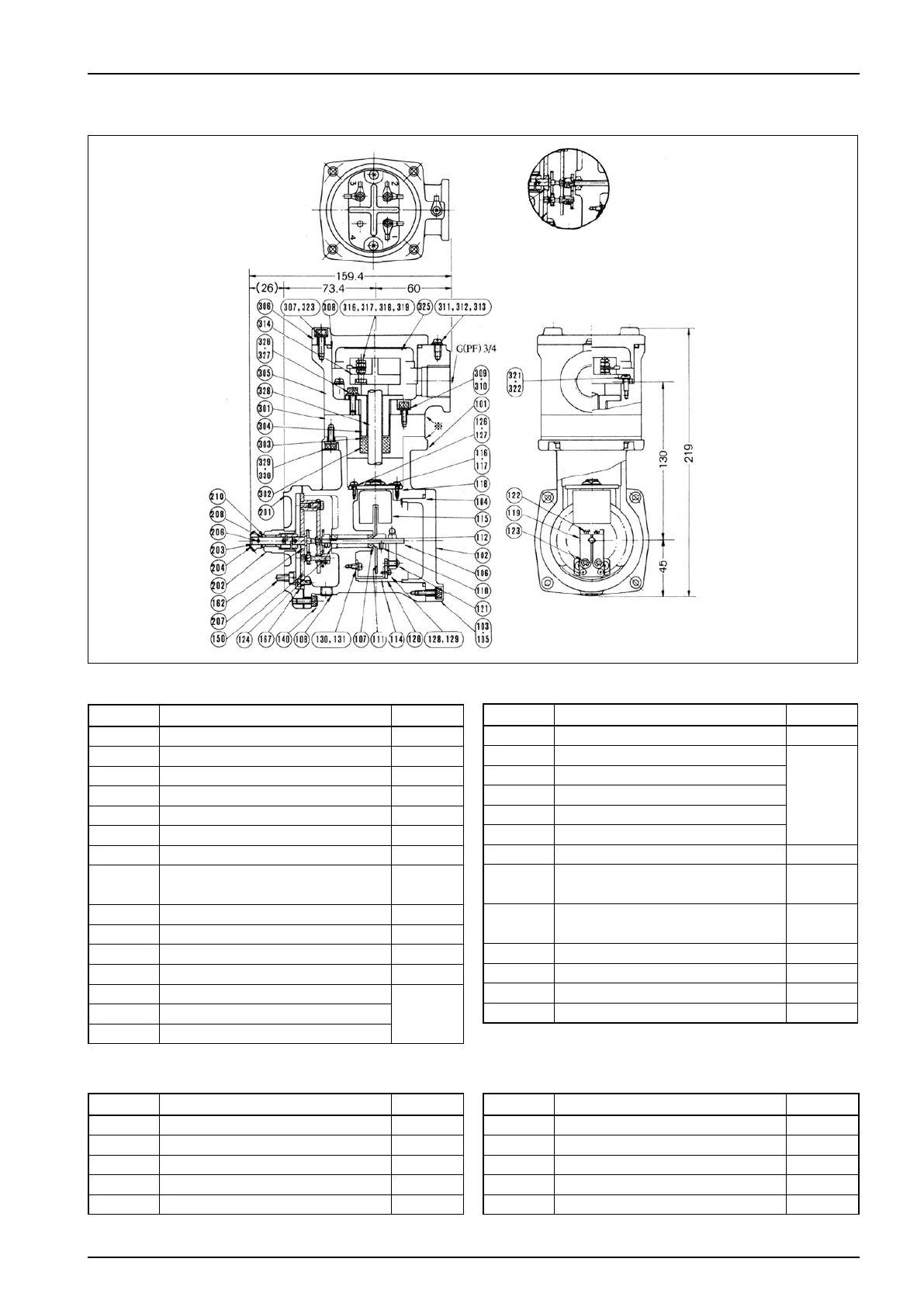

ASSEMBLY DRAWING AND PARTS LIST, PG30EP
