Oval PG30 - Page 7

Transmission gear engagement in the transmission
gear box shipped from our factory before April,
1987, is shown in the inset.
Transmission gear box (150) and mounting bracket (200)
are also shared by PG30EP; see pages 5 and 6.
T-518-11-E
7
Pulse Generator Assembly
Sym.No. Part Name Q 'ty
101 Housing 1
102 Housing lid 2
103 Gasket, Housing lid 2
104 Terminal 1
105 Nut, Terminal (M4) 3
106 Screw 3
107 Washer 3
108 Detector (noncontact switch unit)
｝
1set109 Toothed washer, Detector
110 Nut, Detector
111 Mounting bracket, Detector 1
112 Crimp terminal 6
114 Holder 1
115 Shaft 1
116 Toothed disk (with hub) 1
118 Ball bearing (CF-1040ZZ) 2
119 Brake shoe
▲
｝
1set
120 Plate
121 Shoe shaft
122 Spring
123 Clip ring
▲：Replacement parts
Sym.No. Part Name Q 'ty
124 Thrust spacer 1
125
Blind plug
(PT1/8, hex socket head)
1
126 Terminal identification label 1
127 Wiring instruction label 1
129 Toothed disk setscrew (M3×4) 1
130
Fitting screw, Detector mounting
bracket (M4×8)
2
131
Washer, Detector mounting
bracket (M4)
2
132 Plate fitting screw (M3×6) 2
133 Washer, Plate fitting screw (M3) 2
134 Holder fitting screw (M3×6) 2
135 Washer, Holder fitting screw (M4) 2
136 Terminal fitting screw (M4×10) 2
137 Washer Terminal fitting screw (M4) 2
139 Housing lid bolt (M4×12) 8
140 Housing bolt (M5×12) 4
■

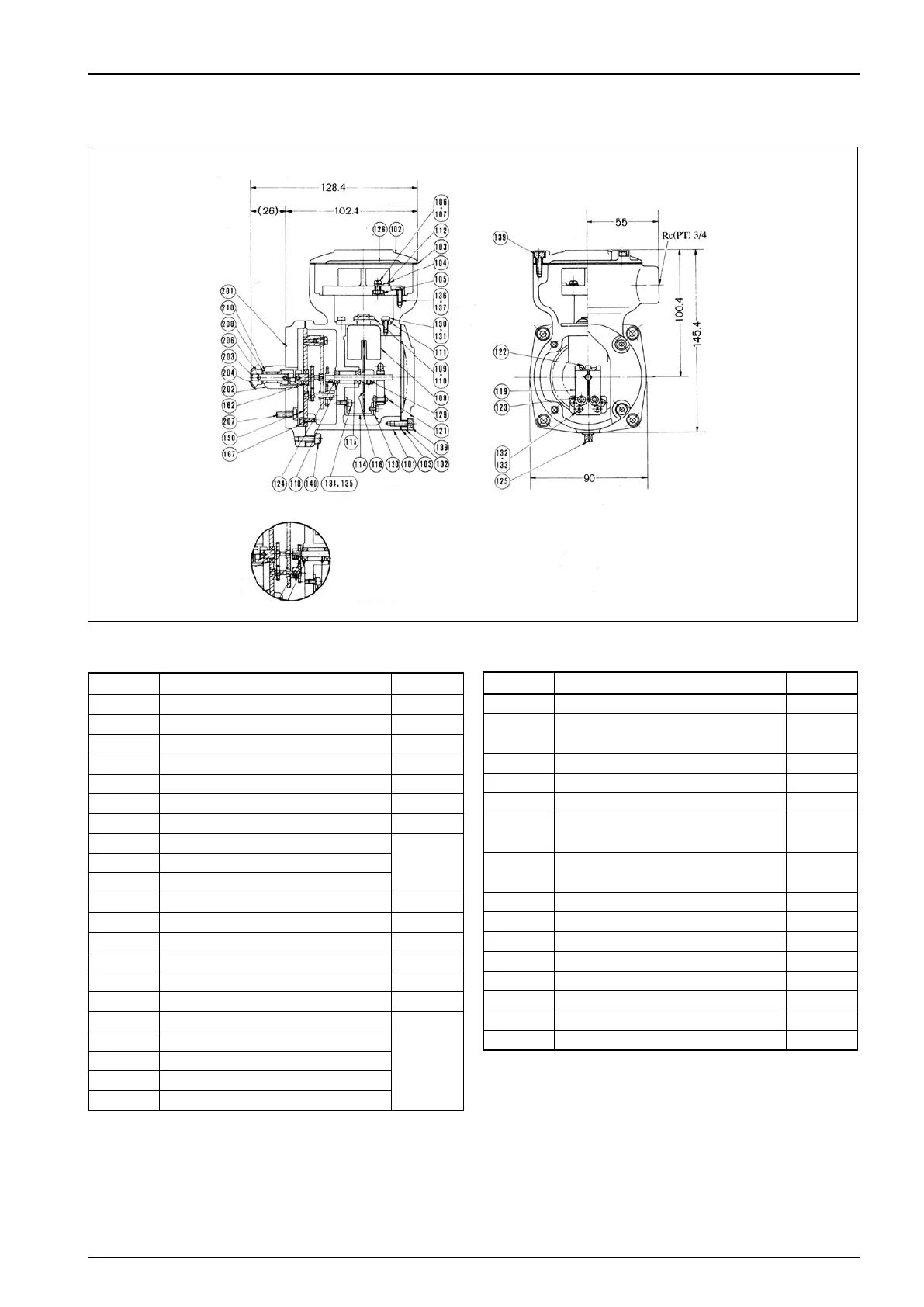

ASSEMBLY DRAWING AND PARTS LIST, MODEL PG30
