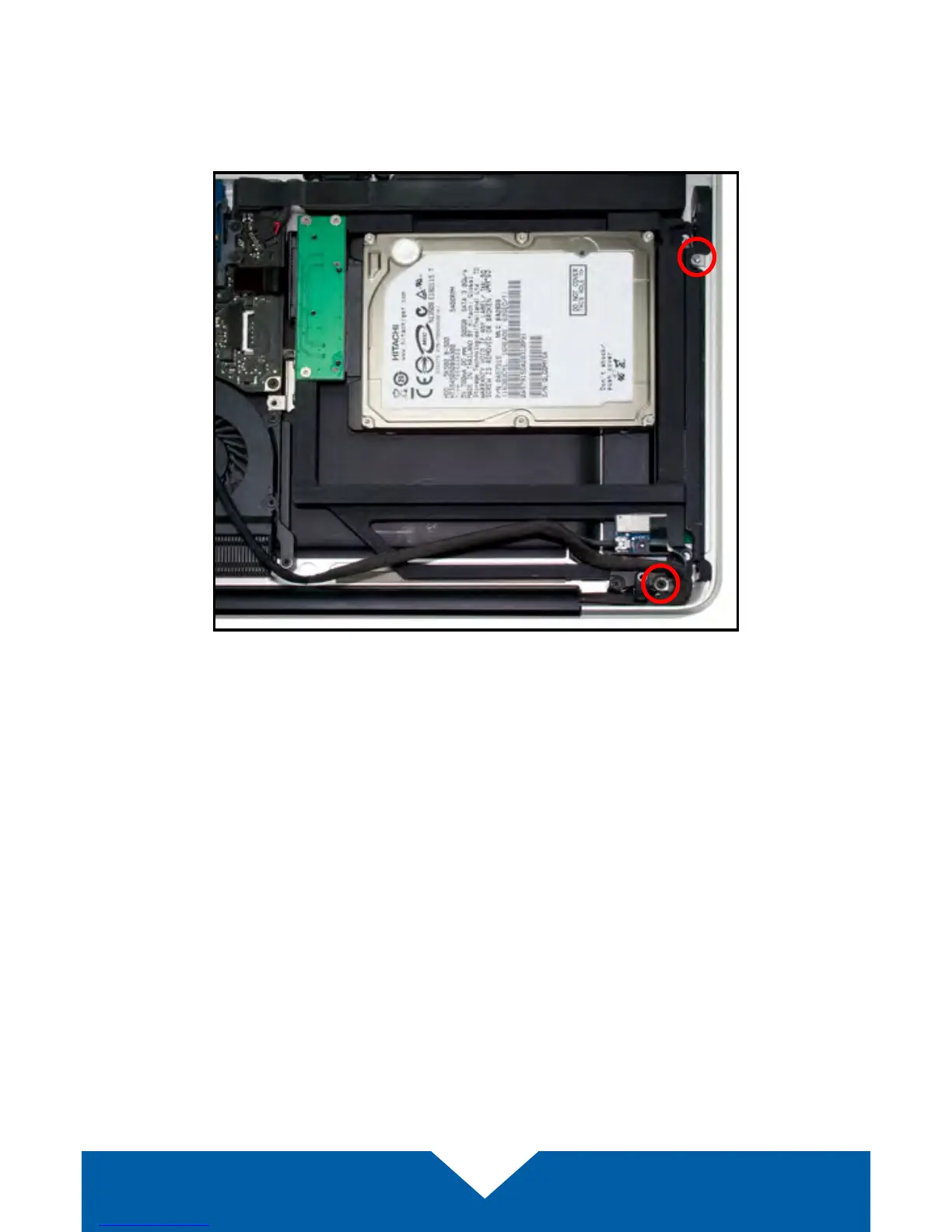

18. Place the assembled Data Doubler into the optical bay, being careful not to
damage any cables or connectors. Next, take two longer Phillips screws
from the Kit and ax them in the same screw holes (highlighted in red
below) where you removed two shorter screws in Step 11.
19. Re-align (and if applicable re-connect) the cable from Step 12. Next, ax
the screw that was removed from the optical drive bracket in Step 9.
20. Carefully re-insert the cable you disconnected in Step 8, and reconnect
the ribbon cable you disconnected in Step 10. If you disconnected your
battery in Step 1, reconnect it now.
21. Replace the bottom cover that you removed earlier, snapping it back into
place. Ax the 10 Phillips screws that were removed earlier. Make sure the
three long screws are placed back in their original locations; check Step 2
if your laptop has a removable battery, or Step 4 if it does not.
The installation process is complete. Proceed to Section 3.1 for additional
support information.
