OWC Data Doubler Installation

2.2.6 Mid-2010 15” MacBook Pro (6,2)

IMPORTANT: be sure that your laptop is fully shut down and disconnected

from all cables, including the power cable.

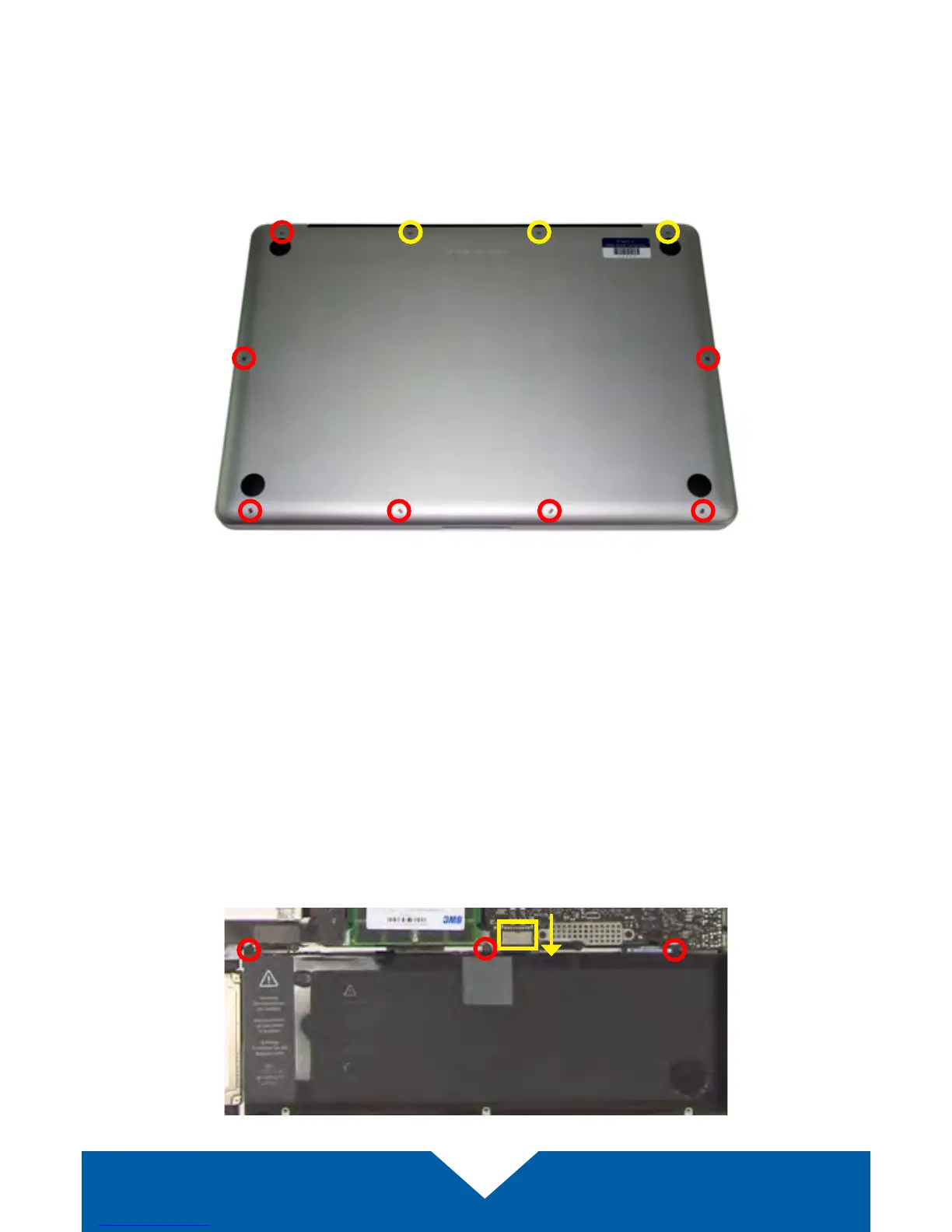

1. Remove the 10 Phillips screws that hold the bottom cover to the chassis.

Note: the three right-most screws along the top edge (shown in yellow) are

longer than the rest; install them in the same screw holes at the end of the

process. The rest can be used interchangeably in the remaining screw holes.

2. Once the screws are removed, place your ngers along the bottom cover

near the black vent, then lift the cover. There are two snap clips attached to

the cover that will release when you do this. Set the cover aside.

Recommended: before continuing, use a tri-lobe screwdriver (not included)

to remove the three battery screws highlighted below in red, then pull the

battery tab so the battery stands up in the bay. Next use the nylon pry tool

to gently push the connector towards the battery bay and out of its slot.
