OWC Data Doubler Installation

2.2.8 Early / Mid-2009 17” MacBook Pro (5,2)

IMPORTANT: be sure that your laptop is fully shut down and disconnected

from all cables, including the power cable.

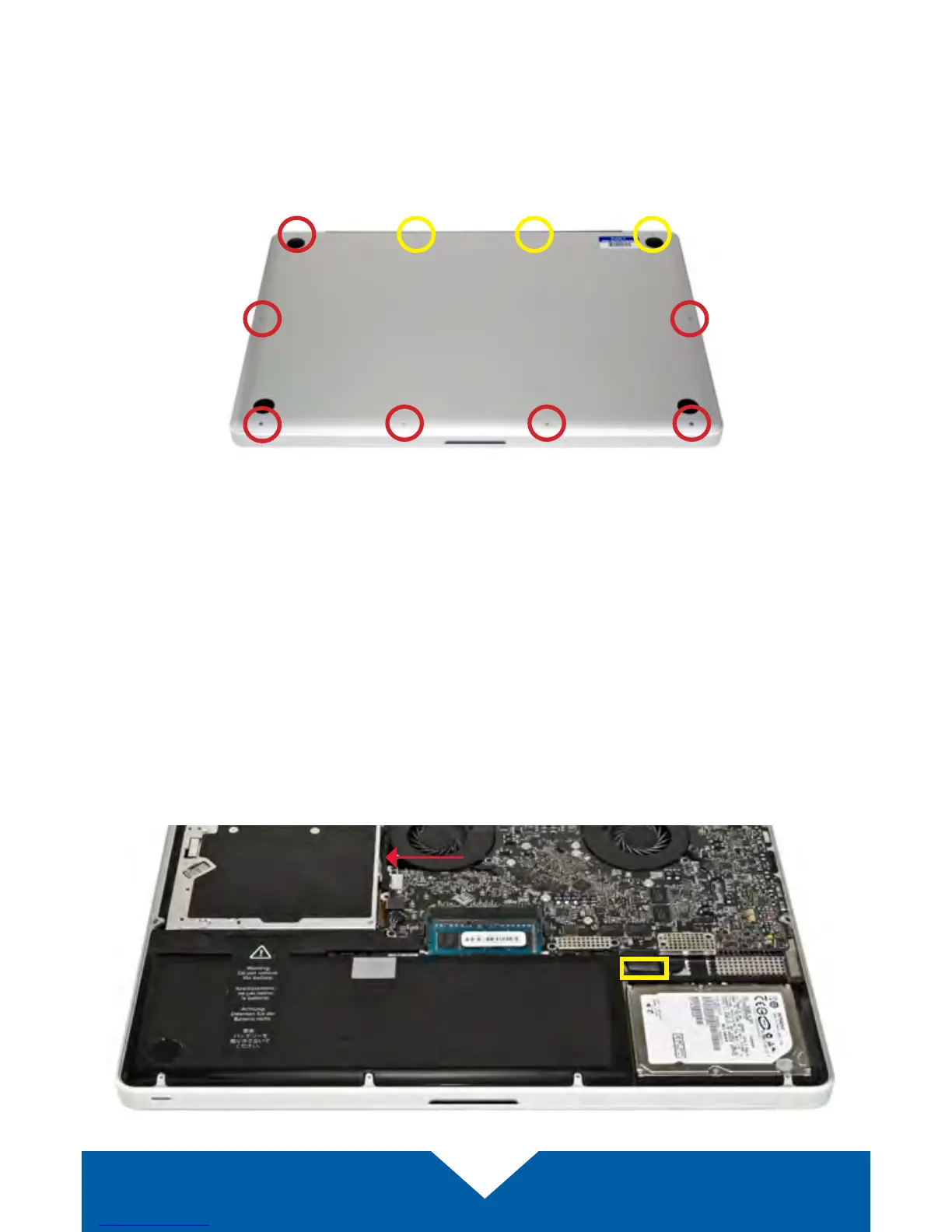

1. Remove the 10 Phillips screws that secure the bottom cover to the chassis.

Note: the three right-most screws along the top edge (shown in yellow) are

longer than the rest; install them in the same screw holes at the end of the

process. The rest can be used interchangeably in the remaining screw holes.

2. Place your ngers at the top of the chassis, near the black vent underneath

the screen, then lift to release the bottom cover. There are two snap clips

holding the cover in place; they will release when you lift the cover. The

optical drive is noted by the red arrow and will need to be removed.

Recommended: before moving to the next step, gently pull on the plastic

tab attached to the battery connector and dislodge it from the logic board.
