OWC Data Doubler Installation
76

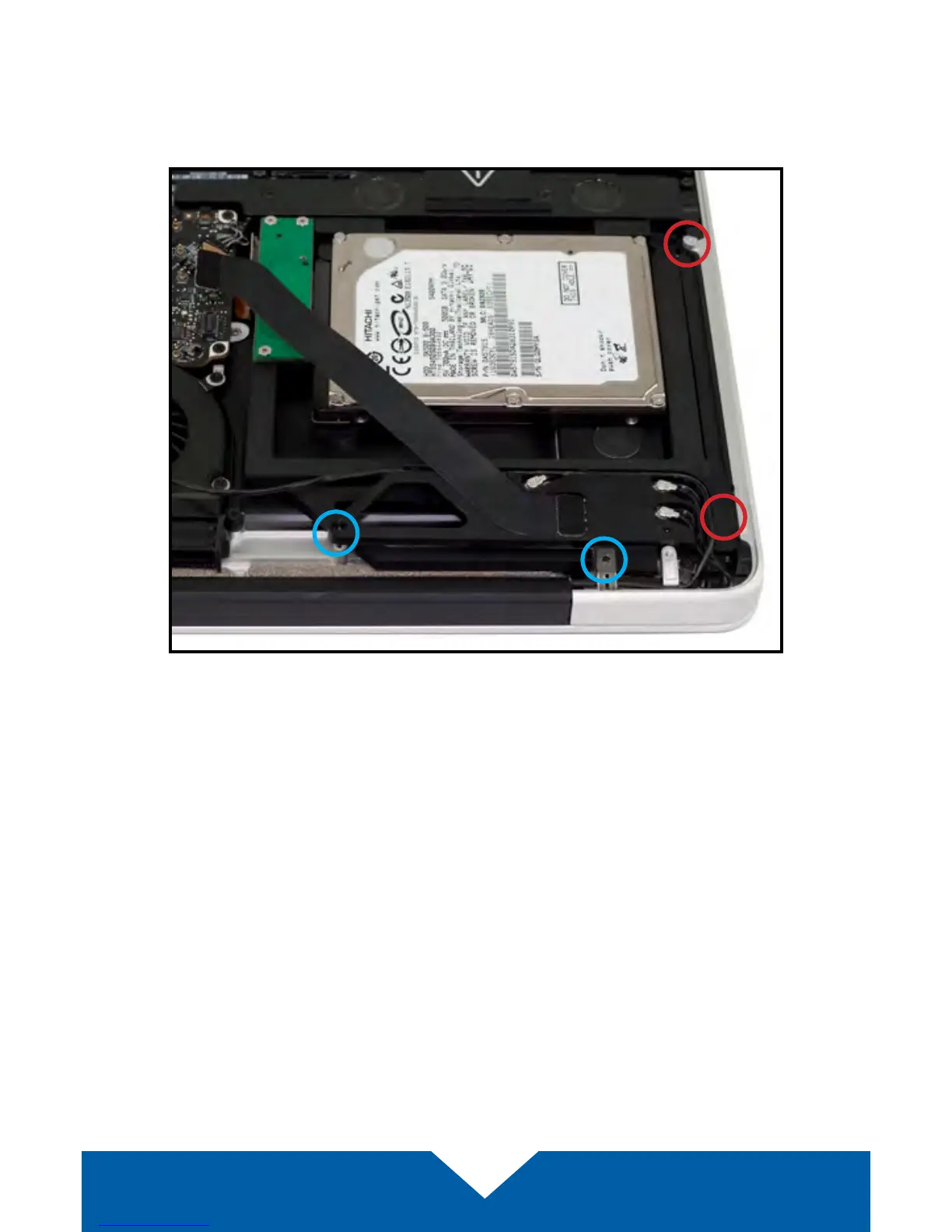

16. Carefully place the assembled Data Doubler into the optical bay. Be careful
not to damage the cables or connectors. Next, take two of the longer
screws from the kit and ax them in the same screw holes where shorter
screws were removed in Steps 9 and 10 (locations shown below in red).
17. Reseat and ax the Airport / Bluetooth bracket that was removed in Steps
7 and 8. The screw locations are highlighted in blue; make sure the longer
screw is axed to the location nearer the corner of the chassis.
18. Ax the screw that was removed from the aluminum bracket in Step 6.
19. Reconnect the cables that were disconnected in Steps 3, 4, and 5. If you
disconnected the battery in Step 2, reconnect it now.
20. Carefully replace the bottom, snapping it back into place. Ax the 10
Phillips screws that were removed earlier; make sure the three long screws
are placed back in their original locations from Step 1.
The installation process is complete. Proceed to Section 3.1 for additional
support information.
