Instrument Interface
The multimeter uses four 4-mm safety banana plug input ends: A, mA, COM,
and .

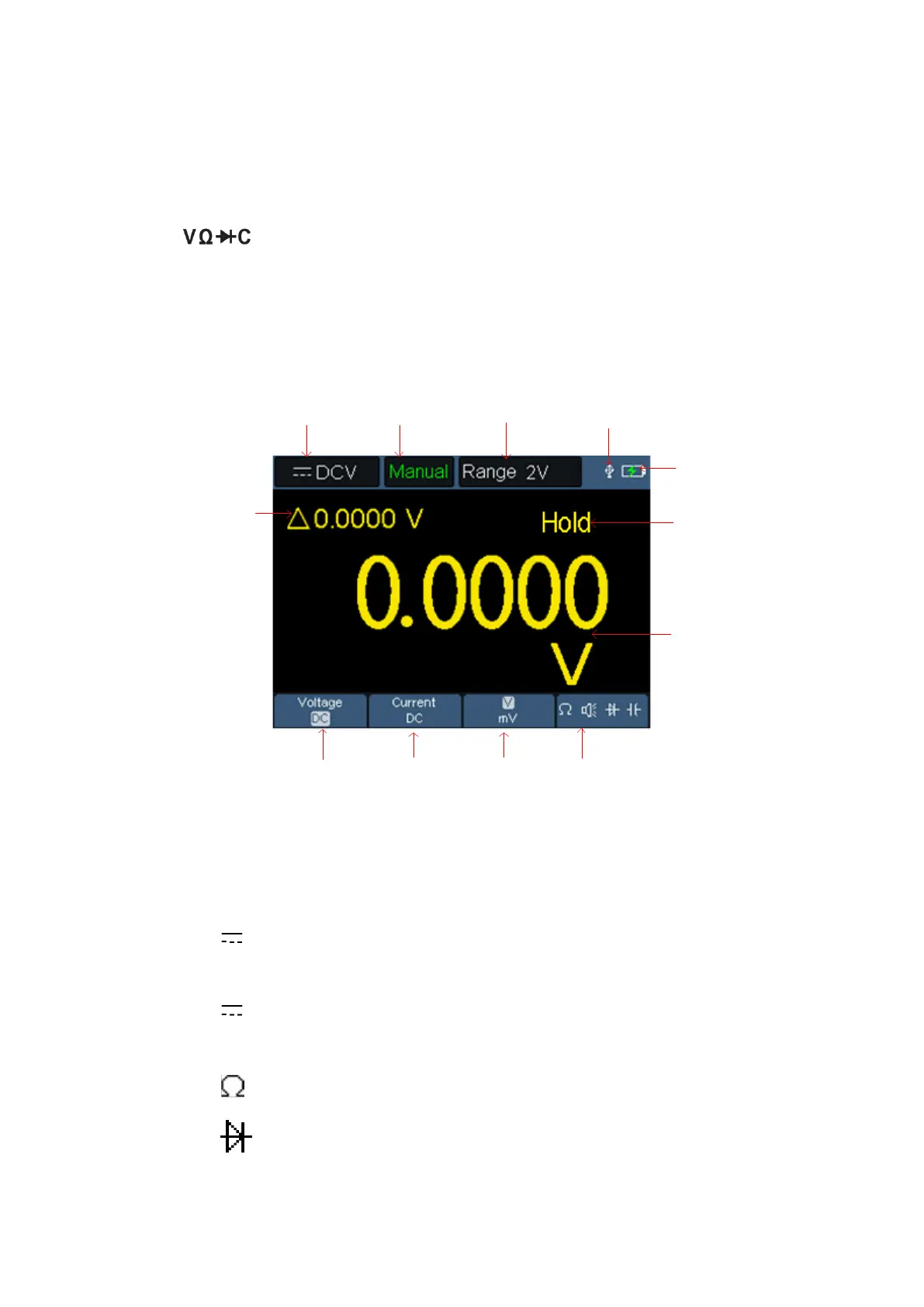

Multimeter interface:
1
2
3
4
5
6
7
8
911 10
12
Multimeter Interface
Description:
1. Measurement type indication:
DCV ------ DC voltage measurement
ACV ------ AC voltage measurement
DCA ------ DC current measurement
ACA ------ AC current measurement
Resist ------ Resistance measurement
Diode ------ Diode measurement
