3.Quick Start
4
3. Quick Start
Introduction to the Structure of the Oscilloscope
This chapter makes a simple description of the operation and function of the front panel of
the oscilloscope, enabling you to be familiar with the use of the oscilloscope in the
shortest time.
Front Panel
The front panel has knobs and function buttons. The 5 buttons in the column on the right
side of the display screen are menu selection buttons, through which, you can set the
different options for the current menu. The other buttons are function buttons, through
which, you can enter different function menus or obtain a specific function application
directly.
7
3
5
4
6
1
2

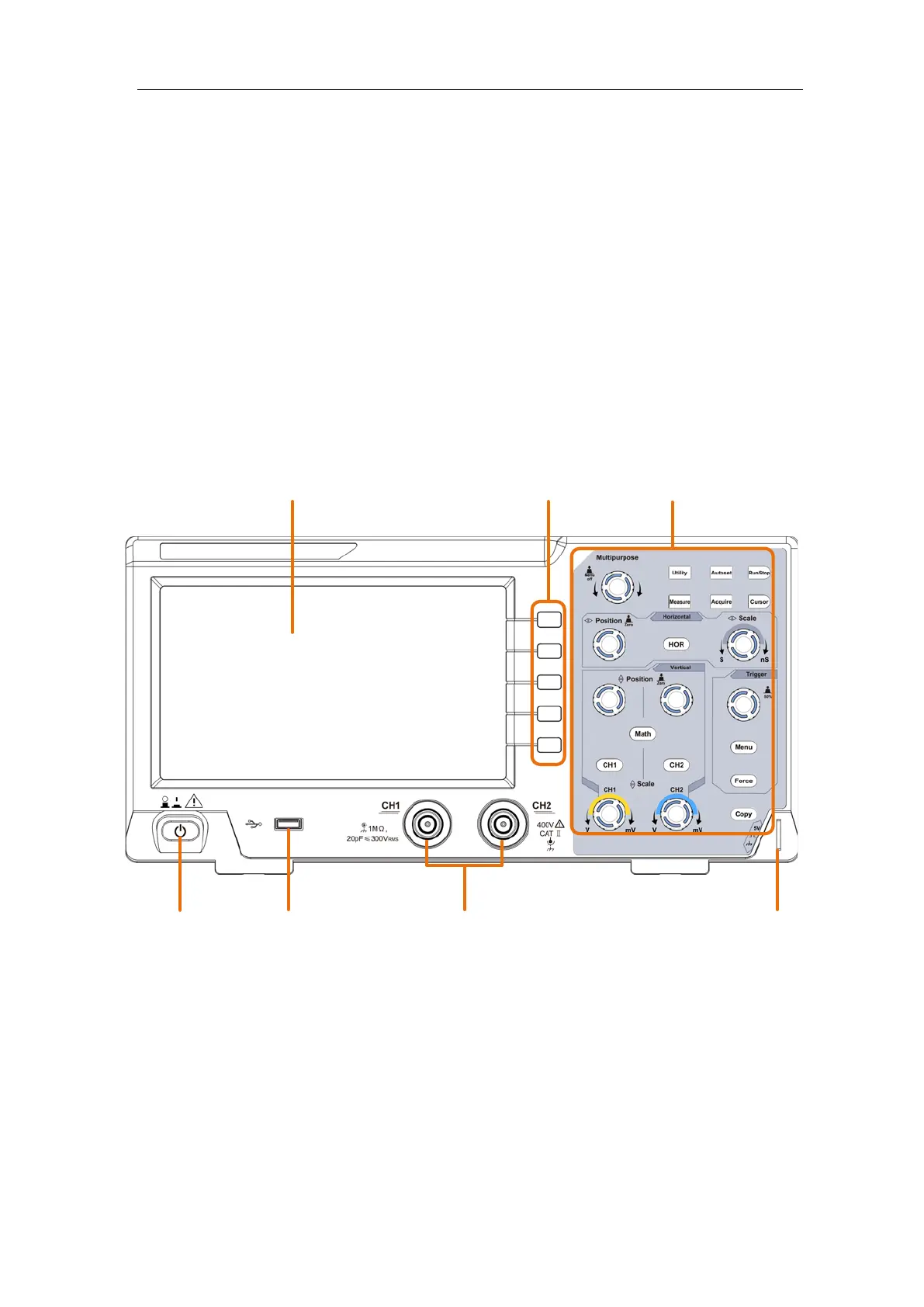

Figure 3-1 Front panel
1. Display area
2. Menu selection buttons: Select the right menu item.
3. Control (button and knob) area
4. Probe Compensation: Measurement signal (5V/1kHz) output.
5. Signal Input Channel
6. USB Host port: It is used to transfer data when external USB equipment connects to
the oscilloscope regarded as "host device". For example: Saving the waveform to USB
flash disk needs to use this port.
7. Power on/off

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Owon SDS1104 and is the answer not in the manual?

Owon SDS1104 Specifications

General IconGeneral
Bandwidth100 MHz
Channels4
Sample Rate1 GSa/s
Memory Depth10Mpts
Vertical Sensitivity2 mV/div to 10 V/div
Timebase Range5 ns/div to 50 s/div
Trigger TypesEdge, Pulse, Video, Slope, Alternate
Math Functions+, -, *, /, FFT
Trigger ModesAuto, Normal, Single
Display7 inch TFT LCD
Vertical Resolution8 bit
Display Resolution800 x 480
InterfaceUSB Host, USB Device, LAN
Input Impedance1MΩ
Input Voltage Range400 V (DC + AC peak)
Record Length10 Mpts
