Owon XDM Series - Dimensions; Foot Stool Adjustment; Front Panel Overview

2.Quick Start
6
295
mm
Foot Stool Adjustment
Unfold the foot stool on the bottom of the multimeter.
Front Panel Overview
2
3
4
5
12
1
6
7
8
11 13
9
10

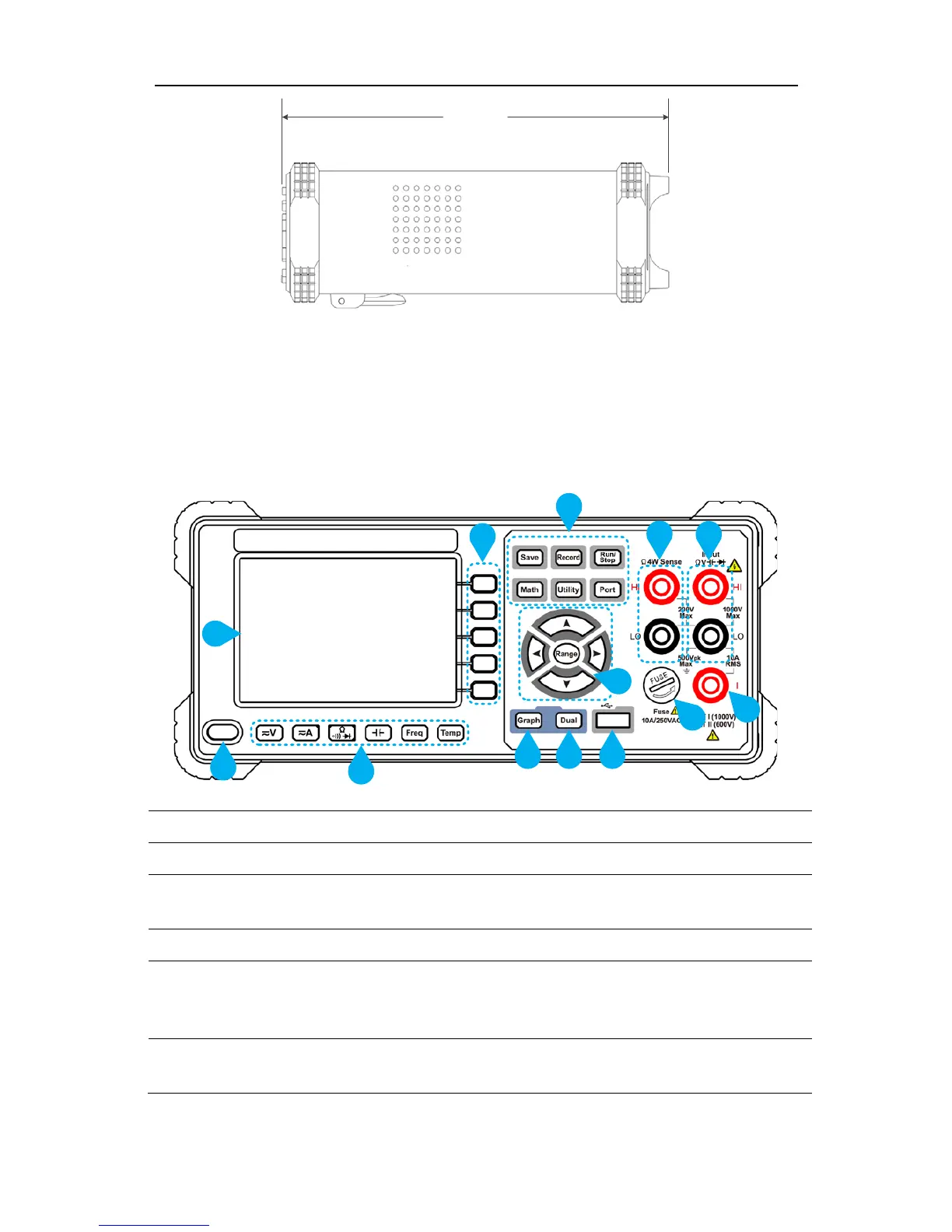

Figure 2-1 Front panel overview
Item
Name
Description
1
LCD
Display the user interface
2
Menu selection
Keys
Activate the corresponding menu
3
Operation Keys
Save Collect data in manual record. The instrument saves
current reading each time the Save key is pressed. See page
36, Manual Record.
Record
Access menus of manual record and auto record.
See page 36,
Data Record Function
.
