(1) Push the Display button.
(2) Select Persist&Color in the bottom menu.
(3) Select Color in the right menu, choose between ON/OFF.

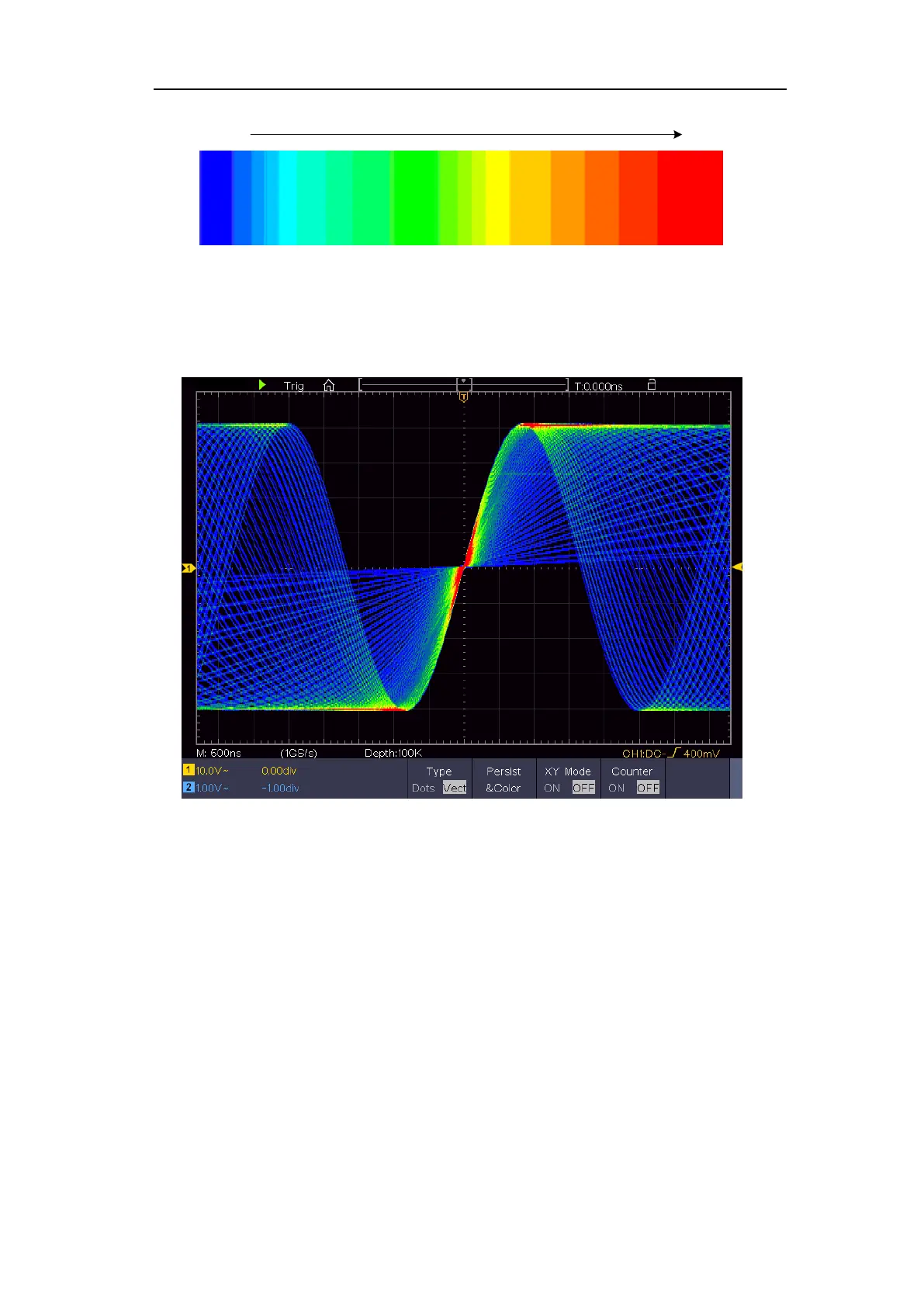

Figure 4-8 The color temperature function is on
XY Format
This format is only applicable to Channel 1 and Channel 2. After the XY display
format is selected, Channel 1 is displayed in the horizontal axis and Channel 2 in the
vertical axis; the oscilloscope is set in the un-triggered sample mode: the data are
displayed as bright spots.
The operations of all control knobs are as follows:
◼ The Vertical Scale and the Vertical Position knobs of Channel 1 are used to set
the horizontal scale and position.
◼ The Vertical Scale and the Vertical Position knobs of Channel 2 are used to set
the vertical scale and position continuously.
The following functions can not work in the XY Format:
