9.Demonstration
138
(3)
In the
left menu, select
Video
as the mode.
(4)
Sele
ct
Source
in the bottom menu. Sele
ct
CH1
in t
he right menu.
(5)
Sele
ct
Modu
in the bottom menu. Select
NTSC
in the ri
ght menu.
(6)
Sele
ct
Sync
in the bottom menu. Select
Field
in the right menu.
(7)
Turn
the
Vertical
Scale
,
Vertical
Positio
n
and
H
orizontal
Scale
knobs
to
obtain
a proper waveform display (see
Fi
gur
e 9-7
).

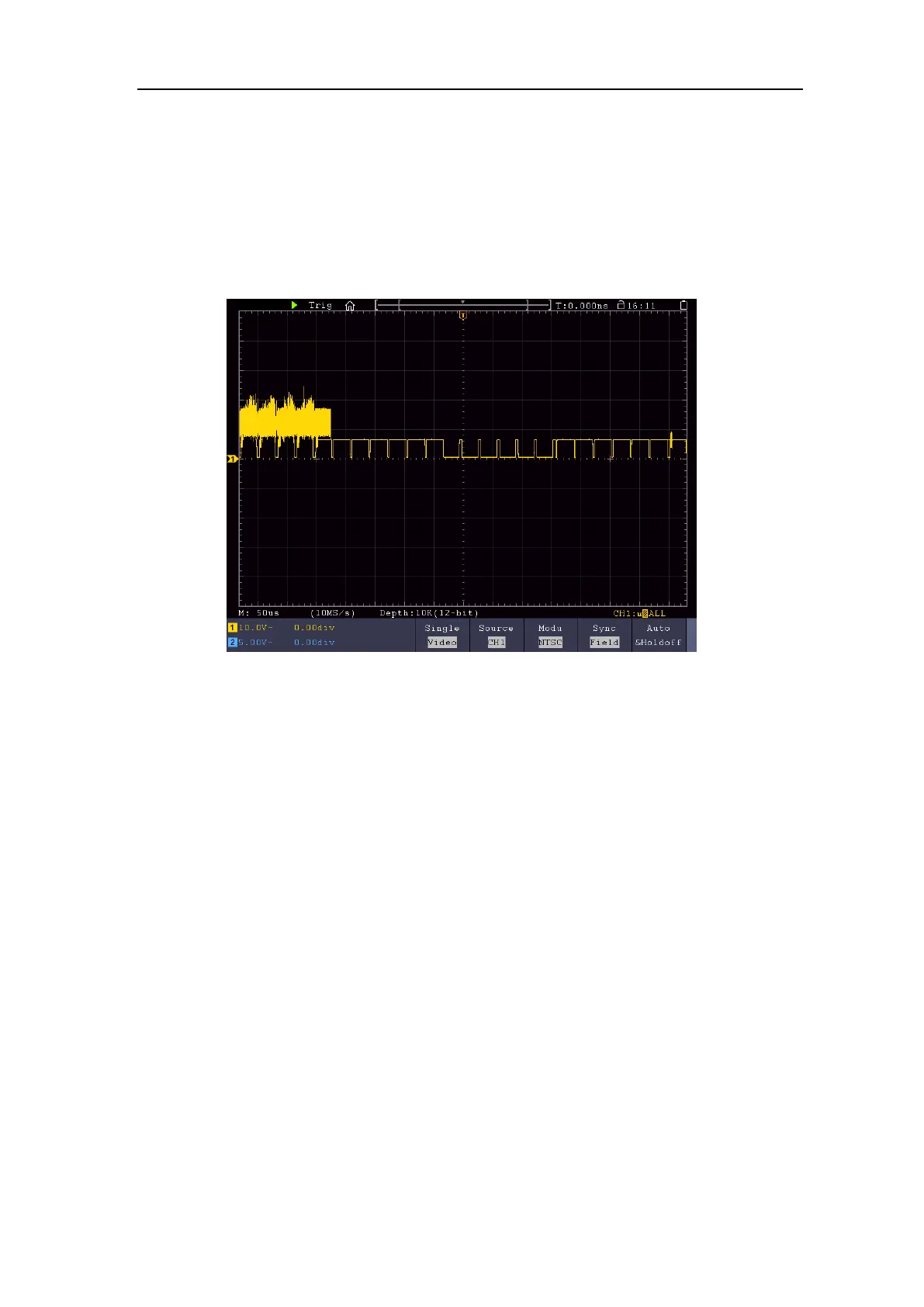

Figure 9-7
Wavef
orm Captured from Video
Field Trigger
144
146
Table of Contents
Default Chapter
4
Table of Contents
4
1 General Safety Requirements
8
2 Safety Terms and Symbols
9
3 Junior User Guidebook
11
Introduction to the Structure of the Oscilloscope
12
Front Panel
12
Front Panel Menu Buttons
13
Rear Panel
13
Control Area
14
User Interface Introduction
15
How to Implement the General Inspection
17
How to Implement the Function Inspection
18
How to Implement the Probe Compensation
19
How to Set the Probe Attenuation Coefficient
19
How to Use the Probe Safely
20
How to Implement Self-Calibration
21
Introduction to the Vertical System
21
Introduction to the Horizontal System
22
Introduction to the Trigger System
23
Touchscreen Controls (Touchscreen Is Optional)
24
Operate the Menu through Touchscreen
24
Gestures in Normal Mode
25
Gestures in Wave Zoom Mode
28
Other Operations Using Touchscreen
30
Magnifier Function (Only for XDS3102AP/XDS3202A with Touchscreen)
30
4 Advanced User Guidebook
33
How to Set the Vertical System
34
Use Mathematical Manipulation Function
36
Waveform Math
38
User Defined Function
38
Digital Filter
39
Using FFT Function
39
Use Vertical Position and Scale Knobs
44
How to Set the Horizontal System
45
Zoom the Waveform
45
How to Set the Trigger/Decoding System
46
Single Trigger
47
Alternate Trigger (Trigger Mode: Edge)
56
Logic Trigger
56
Bus Trigger
57
Bus Decoding (Optional)
63
How to Operate the Function Menu
67
How to Implement Sampling Setup
67
How to Set the Display System
69
How to Save and Recall a Waveform
72
How to Record/Playback Waveforms
79
How to Clone and Recall a Waveform
83
How to Implement the Auxiliary System Function Setting
87
How to Update Your Instrument Firmware
91
How to Measure Automatically
92
Customize an Automatic Measurement
97
How to Measure with Cursors
97
How to Use Autoscale
101
How to Use Built-In Help
102
How to Use Executive Buttons
103
How to Print the Screen Image
104
5 Use the Arbitrary Function Generator (Optional)
106
Output Connection
106
To Set Channels
106
To Set Signals
107
To Output Sine Signals
107
To Set the Frequency
107
To Set the Period
108
To Set the Start Phase
108
To Set the Amplitude
108
To Set the Offset
109
To Set the High Level
109
To Set the Low Level
109
To Output Square Signals
109
To Output Ramp Signals
109
To Set the Symmetry of Ramp
109
To Output Pulse Signals
109
To Set the Pulse Width of Pulse
109
To Set the Duty Cycle of Pulse
109
To Output Arbitrary Signals
109
Create a New Waveform
110
File Browse
111
Built-In Waveform
111
Frequency Response Analysis
113
DMM Menu
115
6 Use the Multimeter (Optional)
115
Input Terminals
115
DMM Information Window
116
Making Multimeter Measurements
117
Measuring AC or DC Current
117
Measuring AC or DC Voltage
117
Measuring Resistance
118
Testing Diodes
118
Testing for Continuity
118
Measuring Capacitance
118
Multimeter Features
119
Data Hold Mode
119
Making Relative Measurements
119
Information Display
119
Auto or Manual Range
119
Multimeter Recorder
119
7 Communication with PC
122
Using USB Port
122
Using LAN Port
123
Connect Directly
123
Connect through a Router
124
Using Wi-Fi to Connect with PC (Optional)
126
Connect with PC as Wi-Fi Access Point
126
Connect with PC as Wi-Fi Station
127
8 Communication with Android Device Via Wi-Fi (Optional)
130
How to Connect
130
Connect with APP as Wi-Fi Access Point
130
Connect with APP as Wi-Fi Station
132
User Interface
134
Gestures Control
136
9 Demonstration
138
Example 1: Measurement a Simple Signal
138
Example 2: Gain of a Amplifier in a Metering Circuit
139
Example 3: Capturing a Single Signal
140
Example 4: Analyze the Details of a Signal
141
Example 5: Application of X-Y Function
143
Example 6: Video Signal Trigger
144
10 Troubleshooting
146
11 Technical Specifications
147
Oscilloscope
147
Trigger
152
Waveform Generator (Optional)
153
Multimeter (Optional)
154
General Technical Specifications
155
12 Appendix
156
Appendix A: Enclosure
156
Appendix B: General Care and Cleaning
156
Appendix C: Battery Using Guide
157
